GE Power Management 750/760 Feeder Management Relay 16-
41
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
S5 GROUND INSTANTANEOUS OVERCURRENT READ/WRITE
1608
2
Ground Instantaneous Overcurrent Function --- --- F37 Disabled
1609
2
Ground Instantaneous Overcurrent Relays --- --- F57 None
160A
2
Ground Instantaneous Overcurrent Pickup 0.05 to 20.00 x CT F3 1.00 x CT
160B
2
Ground Instantaneous Overcurrent Delay 0.00 to 600.00 s F3 0.00 s
160C
6
Ground Instantaneous Overcurrent Direction --- --- F84 Disabled
S5 GROUND DIRECTIONAL READ/WRITE
160E
6
Ground Directional Function --- --- F38 Disabled
160F
6
Ground Directional Maximum Torque Angle 0 to 359 ° Lead F1 315°
1610
6
Ground Directional Minimum Polarizing Voltage 0.00 to 1.25 x VT F3 0.05 x VT
1611
6
Ground Directional Polarizing --- --- F50 Voltage
1612
6
Ground Directional Relays --- --- F57 None
S5 NEUTRAL TIME OVERCURRENT 1 READ/WRITE
1630 Neutral Time Overcurrent 1 Function --- --- F37 Disabled
1631 Neutral Time Overcurrent 1 Relays --- --- F57 None
1632 Neutral Time Overcurrent 1 Curve --- --- F36 Ext. Inverse
1633
1
Neutral Time Overcurrent 1 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1634
1
Neutral Time Overcurrent 1 Multiplier 0.00 to 100.00 --- F3 1.00
1635
1
Neutral Time Overcurrent 1 Reset Time --- --- F68 Instantaneous
1636
1
Neutral Time Overcurrent 1 Direction --- --- F84 Disabled
S5 NEUTRAL INSTANANEOUS OVERCURRENT 1 READ/WRITE
1640
2
Neutral Instantaneous Overcurrent 1 Function --- --- F37 Disabled
1641
2
Neutral Instantaneous Overcurrent 1 Relays --- --- F57 None
1642
2
Neutral Instantaneous Overcurrent 1 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1643
2
Neutral Instantaneous Overcurrent 1 Delay 0.00 to 600.00 s F3 0.00 s
1644
1
Neutral Instantaneous Overcurrent 1 Direction --- --- F84 Disabled
S5 NEUTRAL INSTANTANEOUS OVERCURRENT 2 READ/WRITE
1650
2
Neutral Instantaneous Overcurrent 2 Function --- --- F37 Disabled
1651
2
Neutral Instantaneous Overcurrent 2 Relays --- --- F57 None
1652
2
Neutral Instantaneous Overcurrent 2 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1653
2
Neutral Instantaneous Overcurrent 2 Delay 0.00 to 600.00 s F3 0.00 s
1654
1
Neutral Instantaneous Overcurrent 2 Direction --- --- F84 Disabled

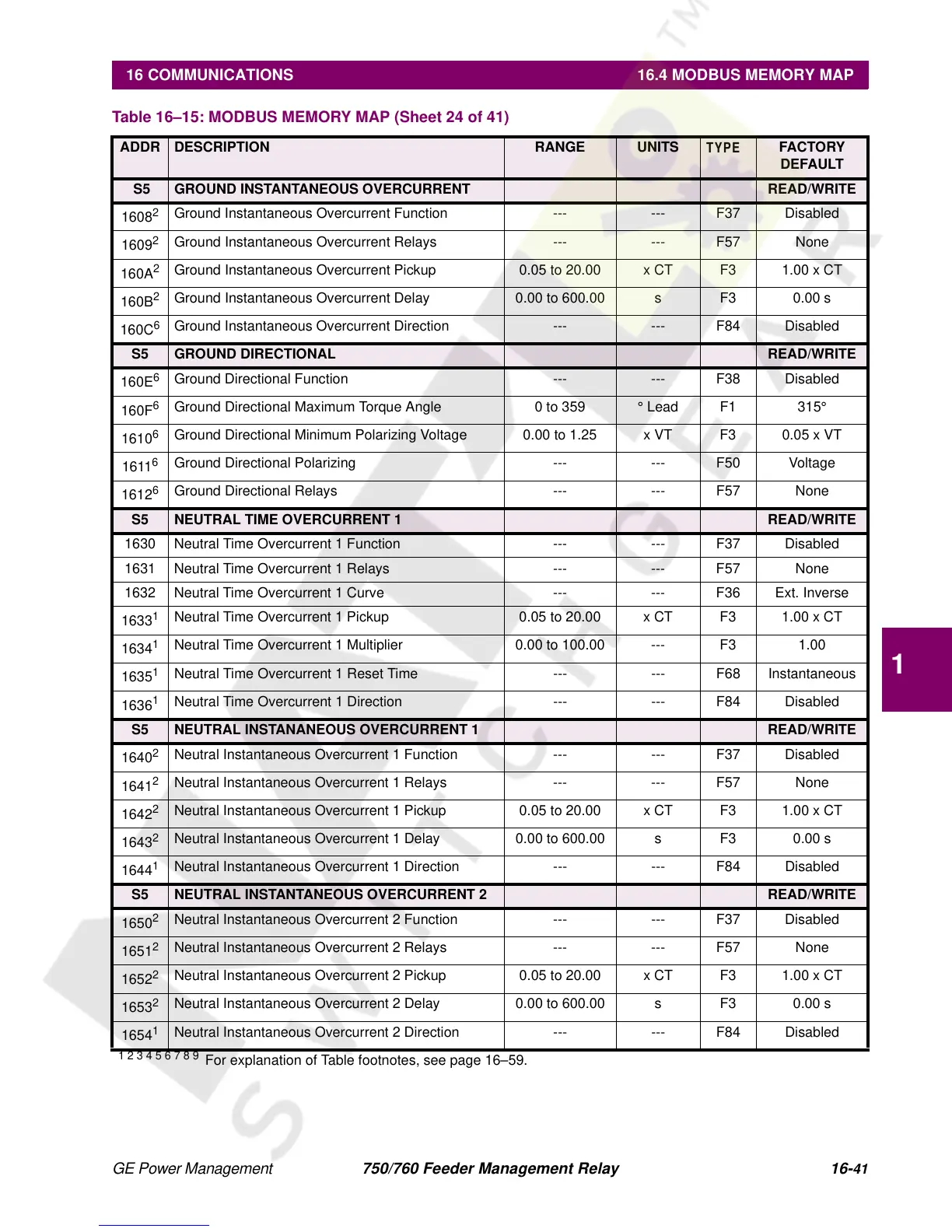

Table 16–15: MODBUS MEMORY MAP (Sheet 24 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
