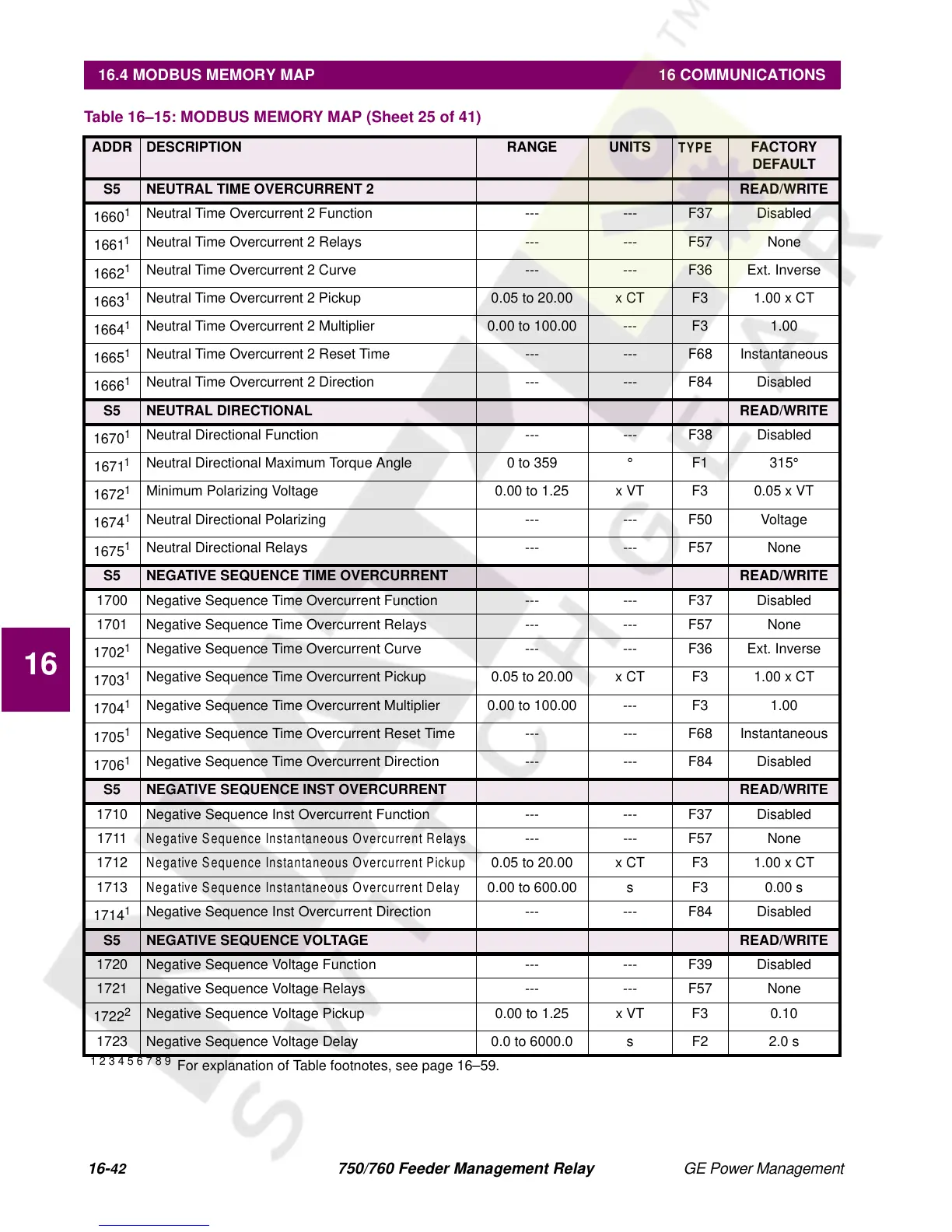

16.4 MODBUS MEMORY MAP 16 COMMUNICATIONS
16
S5 NEUTRAL TIME OVERCURRENT 2 READ/WRITE
1660
1
Neutral Time Overcurrent 2 Function --- --- F37 Disabled
1661
1
Neutral Time Overcurrent 2 Relays --- --- F57 None
1662
1
Neutral Time Overcurrent 2 Curve --- --- F36 Ext. Inverse
1663
1
Neutral Time Overcurrent 2 Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1664
1
Neutral Time Overcurrent 2 Multiplier 0.00 to 100.00 --- F3 1.00
1665
1
Neutral Time Overcurrent 2 Reset Time --- --- F68 Instantaneous
1666
1
Neutral Time Overcurrent 2 Direction --- --- F84 Disabled
S5 NEUTRAL DIRECTIONAL READ/WRITE
1670
1
Neutral Directional Function --- --- F38 Disabled
1671
1
Neutral Directional Maximum Torque Angle 0 to 359 ° F1 315°
1672
1
Minimum Polarizing Voltage 0.00 to 1.25 x VT F3 0.05 x VT
1674
1
Neutral Directional Polarizing --- --- F50 Voltage
1675
1
Neutral Directional Relays --- --- F57 None
S5 NEGATIVE SEQUENCE TIME OVERCURRENT READ/WRITE
1700 Negative Sequence Time Overcurrent Function --- --- F37 Disabled
1701 Negative Sequence Time Overcurrent Relays --- --- F57 None
1702
1
Negative Sequence Time Overcurrent Curve --- --- F36 Ext. Inverse
1703
1
Negative Sequence Time Overcurrent Pickup 0.05 to 20.00 x CT F3 1.00 x CT
1704
1
Negative Sequence Time Overcurrent Multiplier 0.00 to 100.00 --- F3 1.00
1705
1
Negative Sequence Time Overcurrent Reset Time --- --- F68 Instantaneous
1706
1
Negative Sequence Time Overcurrent Direction --- --- F84 Disabled
S5 NEGATIVE SEQUENCE INST OVERCURRENT READ/WRITE
1710 Negative Sequence Inst Overcurrent Function --- --- F37 Disabled
1711
Negative Sequence Instantaneous Overcurrent Relays
--- --- F57 None
1712
Negative Sequence Instantaneous Overcurrent Pickup
0.05 to 20.00 x CT F3 1.00 x CT
1713
Negative Sequence Instantaneous Overcurrent Delay
0.00 to 600.00 s F3 0.00 s
1714
1
Negative Sequence Inst Overcurrent Direction --- --- F84 Disabled
S5 NEGATIVE SEQUENCE VOLTAGE READ/WRITE
1720 Negative Sequence Voltage Function --- --- F39 Disabled
1721 Negative Sequence Voltage Relays --- --- F57 None
1722
2
Negative Sequence Voltage Pickup 0.00 to 1.25 x VT F3 0.10
1723 Negative Sequence Voltage Delay 0.0 to 6000.0 s F2 2.0 s
