GE Power Management 750/760 Feeder Management Relay 16-
43
16 COMMUNICATIONS 16.4 MODBUS MEMORY MAP
16
S5 NEGATIVE SEQUENCE DIRECTIONAL READ/WRITE
1730
1
Negative Sequence Directional Function --- --- F38 Disabled
1731
1
Neg Seq Directional Maximum Torque Angle (MTA) 0 to 359 ° F1 315°
1732
1
Minimum Polarizing Voltage 0.00 to 1.25 x VT F3 0.05 x VT
1733
1
Negative Sequence Directional Relays --- --- F57 None
S5 SENSITIVE GROUND INSTANTANEOUS OC READ/WRITE
1740
3
Sensitive Ground Instantaneous Overcurrent Function
--- --- F37 Disabled
1741
3
Sensitive Ground Instantaneous Overcurrent Relays --- --- F57 None
1742
3
Sensitive Ground Instantaneous Overcurrent Pickup 0.005 to 1.000 x CT F70 0.100 x CT
1743
3
Sensitive Ground Instantaneous Overcurrent Delay 0.00 to 600.00 s F3 0.00 s
1744
3
Sensitive Ground Instantaneous Overcurrent Direction
--- --- F84 Disabled
S5 SENSITIVE GROUND TIME OC READ/WRITE
1750
3
Sensitive Ground Time Overcurrent Function --- --- F37 Disabled
1751
3
Sensitive Ground Time Overcurrent Relays --- --- F57 None
1752
3
Sensitive Ground Time Overcurrent Curve --- --- F36 Ext. Inverse
1753
3
Sensitive Ground Time Overcurrent Pickup 0.005 to 1.000 x CT F70 0.100 x CT
1754
3
Sensitive Ground Time Overcurrent Multiplier 0.00 to 100.00 --- F3 1.00
1755
3
Sensitive Ground Time Overcurrent Reset Time --- --- F68 Instantaneous
1756
3
Sensitive Ground Time Overcurrent Direction --- --- F84 Disabled
S5 SENSITIVE GROUND DIRECTIONAL READ/WRITE
1760
3
Sensitive Ground Directional Function --- --- F38 Disabled
1761
3
Sensitive Ground Directional Maximum Torque Angle
0 to 359 ° F1 315°
1762
3
Minimum Polarizing Voltage 0.00 to 1.25 x VT F3 0.05 x VT
1763
3
Sensitive Ground Directional Polarizing --- --- F50 Voltage
1764
3
Sensitive Ground Directional Relays --- --- F57 None
S5
7
RESERVED FOR MOD 010 READ/WRITE
1767
7
Reserved for MOD 010
1768
7
Reserved for MOD 010
1769
7
Reserved for MOD 010
176A
7
Reserved for MOD 010
176B
7
Reserved for MOD 010
S5 RESTRICTED EARTH FAULT (REF) READ/WRITE
1770
8
Restricted Earth Fault Function --- --- F39 Disabled

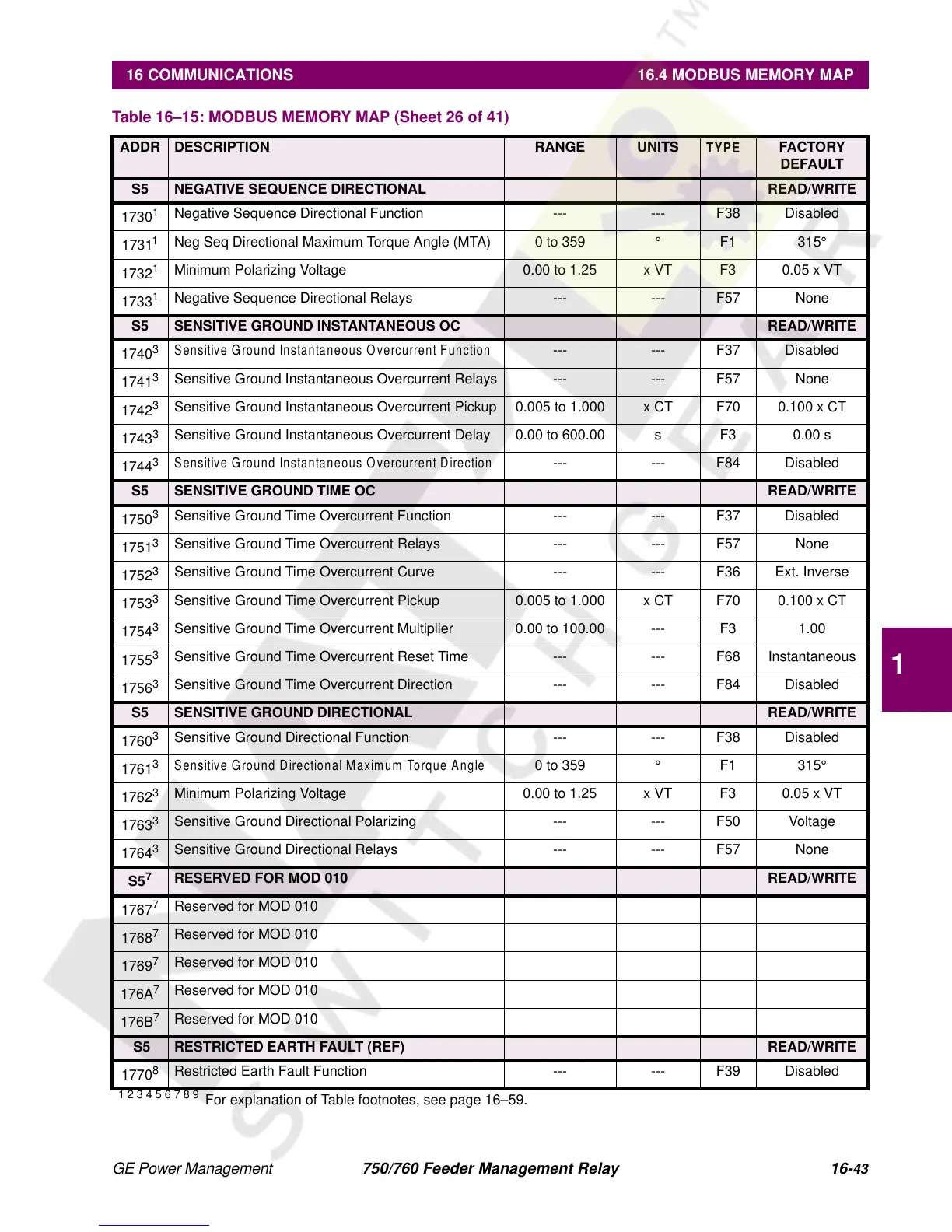

Table 16–15: MODBUS MEMORY MAP (Sheet 26 of 41)
ADDR DESCRIPTION RANGE UNITS
TYPE
FACTORY
DEFAULT
1 2 3 4 5 6 7 8 9
For explanation of Table footnotes, see page 16–59.
