16 COMMUNICATIONS 16.5 DNP 3.0 DEVICE PROFILE
16
25 145 F49 Synchrocheck Block (Not In Sync) Class 1
26 146 F49 Current Demand Class 1
27 147 F49 Real Power Demand Class 1
28 148 F49 Reactive Power Demand Class 1
29 149 F49 Apparent Power Demand Class 1
30 150 F49 Analog Input Threshold 1 Class 1
31 151 F49 Analog Input Threshold 2 Class 1
32 152 F49 Analog Input Rate of Change 1 Class 1
33 153 F49 Analog Input Rate of Change 2 Class 1
34 154 F49 Overfrequency Class 1
35 155 F49 Trip Counter Class 1
36 156 F49 Arcing Current Class 1
37 157 F49 VT Failure Class 1
38 158 F49 Breaker Failure Class 1
39 159 F49 Breaker Operation Failure Class 1
40 160 F49 Trip Coil Monitor Class 1
41 161 F49 Close Coil Monitor Class 1
42 162 F49 User Input A Class 1
43 163 F49 User Input B Class 1
44 164 F49 User Input C Class 1
45 165 F49 User Input D Class 1
46 166 F49 User Input E Class 1
47 167 F49 User Input F Class 1
48 168 F49 User Input G Class 1
49 169 F49 User Input H Class 1
50 170 F49 Negative Sequence Instantaneous Overcurrent Class 1
51 171 F49 Negative Sequence Time Overcurrent Class 1
52 172 F49 Negative Sequence Overvoltage Class 1
53 173 F49 Undervoltage Restoration Class 1
54 174 F49 Underfrequency Restoration Class 1
55 175 F49 Phase Time Overcurrent 2 Class 1
56 176 F49 Frequency Decay Class 1
57 177 F49 Negative Sequence Directional Is Reverse Class 1
58 178 F49 Sensitive Ground Instantaneous Overcurrent Class 1
59 179 F49 Sensitive Ground Time Overcurrent Class 1

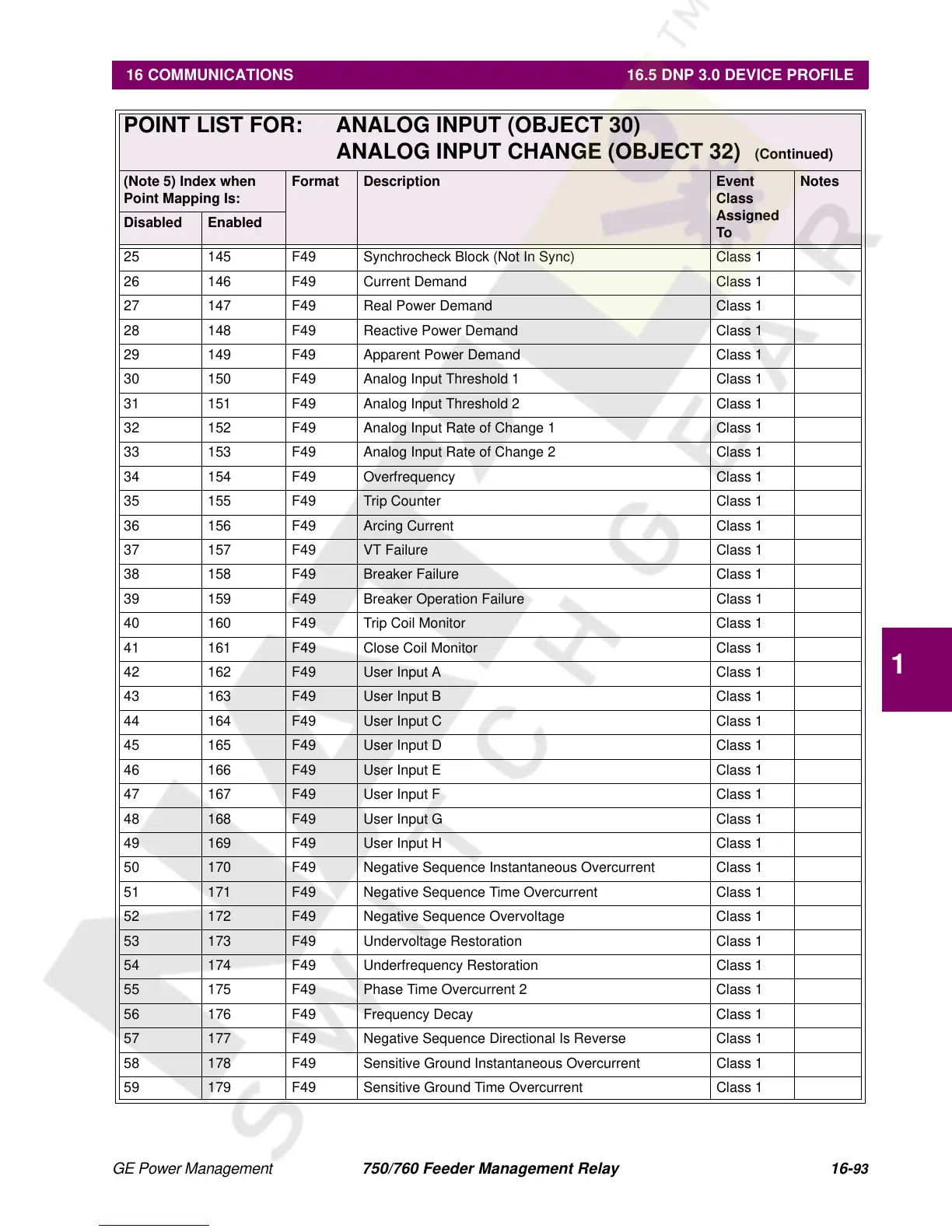

POINT LIST FOR: ANALOG INPUT (OBJECT 30)
ANALOG INPUT CHANGE (OBJECT 32)
(Continued)
(Note 5) Index when
Point Mapping Is:
Format Description Event
Class
Assigned
To
Notes
Disabled Enabled
