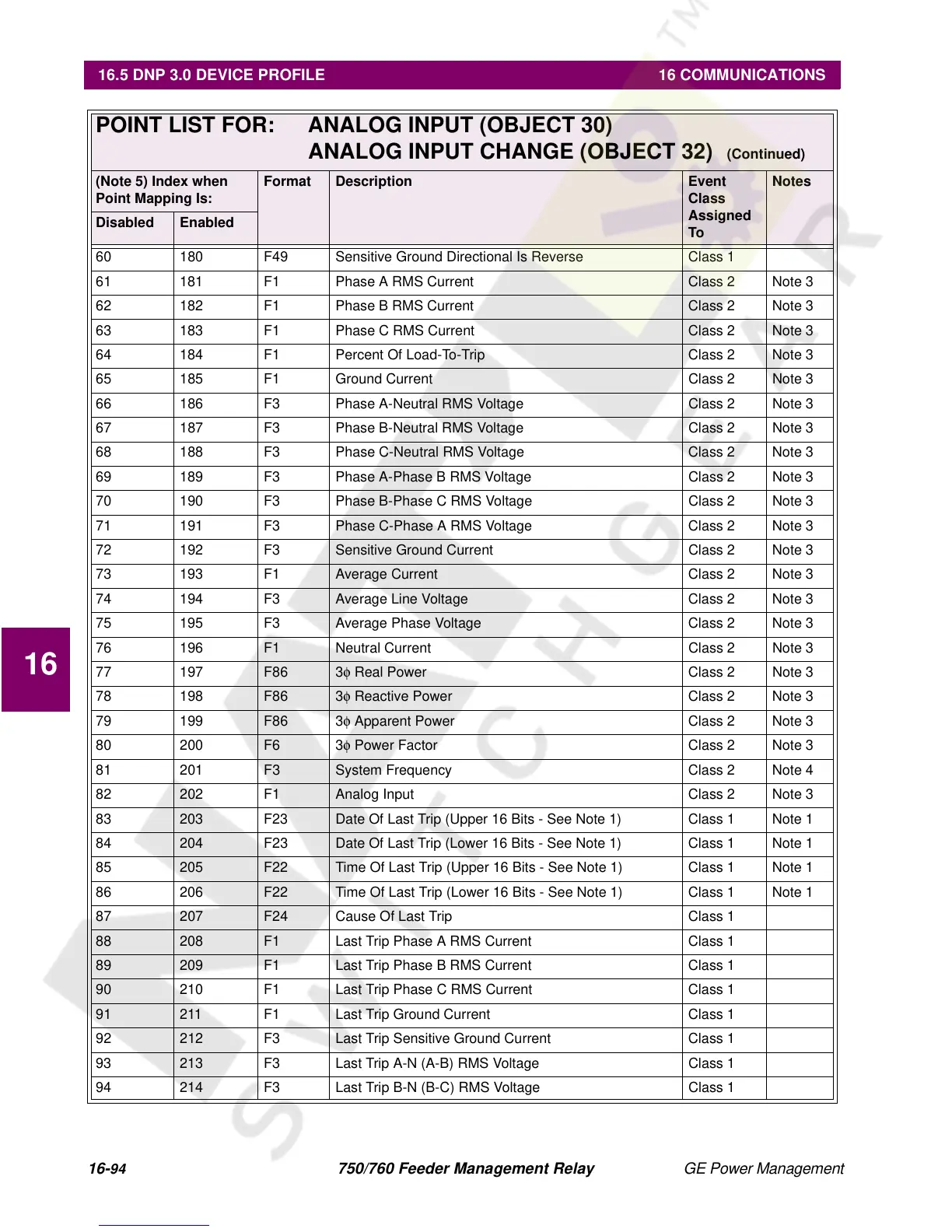

16.5 DNP 3.0 DEVICE PROFILE 16 COMMUNICATIONS
16
60 180 F49 Sensitive Ground Directional Is Reverse Class 1
61 181 F1 Phase A RMS Current Class 2 Note 3
62 182 F1 Phase B RMS Current Class 2 Note 3
63 183 F1 Phase C RMS Current Class 2 Note 3
64 184 F1 Percent Of Load-To-Trip Class 2 Note 3
65 185 F1 Ground Current Class 2 Note 3
66 186 F3 Phase A-Neutral RMS Voltage Class 2 Note 3
67 187 F3 Phase B-Neutral RMS Voltage Class 2 Note 3
68 188 F3 Phase C-Neutral RMS Voltage Class 2 Note 3
69 189 F3 Phase A-Phase B RMS Voltage Class 2 Note 3
70 190 F3 Phase B-Phase C RMS Voltage Class 2 Note 3
71 191 F3 Phase C-Phase A RMS Voltage Class 2 Note 3
72 192 F3 Sensitive Ground Current Class 2 Note 3
73 193 F1 Average Current Class 2 Note 3
74 194 F3 Average Line Voltage Class 2 Note 3
75 195 F3 Average Phase Voltage Class 2 Note 3
76 196 F1 Neutral Current Class 2 Note 3
77 197 F86 3φ Real Power Class 2 Note 3
78 198 F86 3φ Reactive Power Class 2 Note 3
79 199 F86 3φ Apparent Power Class 2 Note 3
80 200 F6 3φ Power Factor Class 2 Note 3
81 201 F3 System Frequency Class 2 Note 4
82 202 F1 Analog Input Class 2 Note 3
83 203 F23 Date Of Last Trip (Upper 16 Bits - See Note 1) Class 1 Note 1
84 204 F23 Date Of Last Trip (Lower 16 Bits - See Note 1) Class 1 Note 1
85 205 F22 Time Of Last Trip (Upper 16 Bits - See Note 1) Class 1 Note 1
86 206 F22 Time Of Last Trip (Lower 16 Bits - See Note 1) Class 1 Note 1
87 207 F24 Cause Of Last Trip Class 1
88 208 F1 Last Trip Phase A RMS Current Class 1
89 209 F1 Last Trip Phase B RMS Current Class 1
90 210 F1 Last Trip Phase C RMS Current Class 1
91 211 F1 Last Trip Ground Current Class 1
92 212 F3 Last Trip Sensitive Ground Current Class 1
93 213 F3 Last Trip A-N (A-B) RMS Voltage Class 1
94 214 F3 Last Trip B-N (B-C) RMS Voltage Class 1
POINT LIST FOR: ANALOG INPUT (OBJECT 30)
ANALOG INPUT CHANGE (OBJECT 32)
(Continued)
(Note 5) Index when
Point Mapping Is:
Format Description Event
Class
Assigned
To
Notes
Disabled Enabled
