GE Power Management 750/760 Feeder Management Relay 16-
95

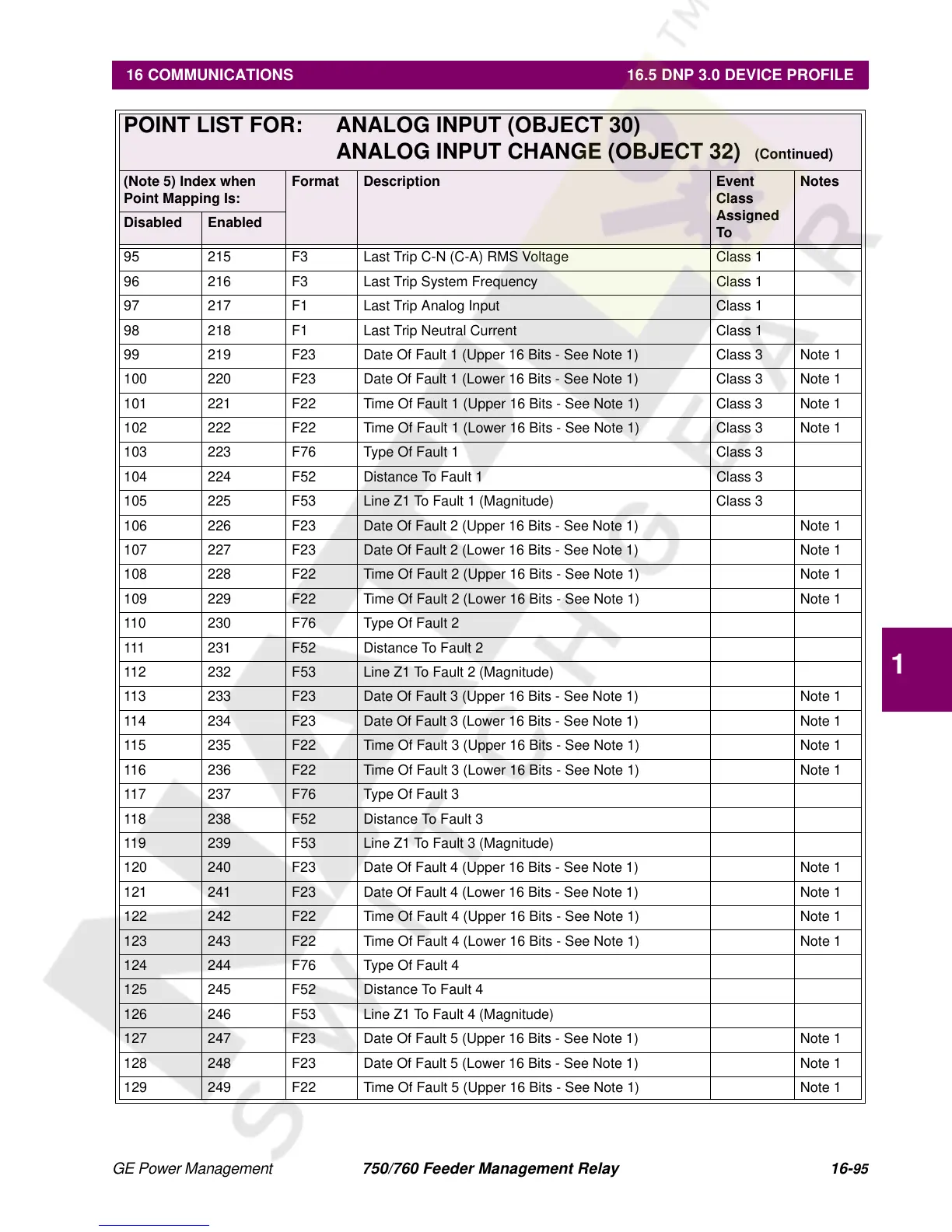

16 COMMUNICATIONS 16.5 DNP 3.0 DEVICE PROFILE
16
95 215 F3 Last Trip C-N (C-A) RMS Voltage Class 1
96 216 F3 Last Trip System Frequency Class 1
97 217 F1 Last Trip Analog Input Class 1
98 218 F1 Last Trip Neutral Current Class 1
99 219 F23 Date Of Fault 1 (Upper 16 Bits - See Note 1) Class 3 Note 1
100 220 F23 Date Of Fault 1 (Lower 16 Bits - See Note 1) Class 3 Note 1
101 221 F22 Time Of Fault 1 (Upper 16 Bits - See Note 1) Class 3 Note 1
102 222 F22 Time Of Fault 1 (Lower 16 Bits - See Note 1) Class 3 Note 1
103 223 F76 Type Of Fault 1 Class 3
104 224 F52 Distance To Fault 1 Class 3
105 225 F53 Line Z1 To Fault 1 (Magnitude) Class 3
106 226 F23 Date Of Fault 2 (Upper 16 Bits - See Note 1) Note 1
107 227 F23 Date Of Fault 2 (Lower 16 Bits - See Note 1) Note 1
108 228 F22 Time Of Fault 2 (Upper 16 Bits - See Note 1) Note 1
109 229 F22 Time Of Fault 2 (Lower 16 Bits - See Note 1) Note 1
110 230 F76 Type Of Fault 2
111 231 F52 Distance To Fault 2
112 232 F53 Line Z1 To Fault 2 (Magnitude)
113 233 F23 Date Of Fault 3 (Upper 16 Bits - See Note 1) Note 1
114 234 F23 Date Of Fault 3 (Lower 16 Bits - See Note 1) Note 1
115 235 F22 Time Of Fault 3 (Upper 16 Bits - See Note 1) Note 1
116 236 F22 Time Of Fault 3 (Lower 16 Bits - See Note 1) Note 1
117 237 F76 Type Of Fault 3
118 238 F52 Distance To Fault 3
119 239 F53 Line Z1 To Fault 3 (Magnitude)
120 240 F23 Date Of Fault 4 (Upper 16 Bits - See Note 1) Note 1
121 241 F23 Date Of Fault 4 (Lower 16 Bits - See Note 1) Note 1
122 242 F22 Time Of Fault 4 (Upper 16 Bits - See Note 1) Note 1
123 243 F22 Time Of Fault 4 (Lower 16 Bits - See Note 1) Note 1
124 244 F76 Type Of Fault 4
125 245 F52 Distance To Fault 4
126 246 F53 Line Z1 To Fault 4 (Magnitude)
127 247 F23 Date Of Fault 5 (Upper 16 Bits - See Note 1) Note 1
128 248 F23 Date Of Fault 5 (Lower 16 Bits - See Note 1) Note 1
129 249 F22 Time Of Fault 5 (Upper 16 Bits - See Note 1) Note 1
POINT LIST FOR: ANALOG INPUT (OBJECT 30)
ANALOG INPUT CHANGE (OBJECT 32)
(Continued)
(Note 5) Index when
Point Mapping Is:
Format Description Event
Class
Assigned
To
Notes
Disabled Enabled
