16.5 DNP 3.0 DEVICE PROFILE 16 COMMUNICATIONS
16
130 250 F22 Time Of Fault 5 (Lower 16 Bits - See Note 1) Note 1
131 251 F76 Type Of Fault 5
132 252 F52 Distance To Fault 5
133 253 F53 Line Z1 To Fault 5 (Magnitude)
134 254 F23 Date Of Fault 6 (Upper 16 Bits - See Note 1) Note 1
135 255 F23 Date Of Fault 6 (Lower 16 Bits - See Note 1) Note 1
136 256 F22 Time Of Fault 6 (Upper 16 Bits - See Note 1) Note 1
137 257 F22 Time Of Fault 6 (Lower 16 Bits - See Note 1) Note 1
138 258 F76 Type Of Fault 6
139 259 F52 Distance To Fault 6
140 260 F53 Line Z1 To Fault 6 (Magnitude)
141 261 F23 Date Of Fault 7 (Upper 16 Bits - See Note 1) Note 1
142 262 F23 Date Of Fault 7 (Lower 16 Bits - See Note 1) Note 1
143 263 F22 Time Of Fault 7 (Upper 16 Bits - See Note 1) Note 1
144 264 F22 Time Of Fault 7 (Lower 16 Bits - See Note 1) Note 1
145 265 F76 Type Of Fault 7
146 266 F52 Distance To Fault 7
147 267 F53 Line Z1 To Fault 7 (Magnitude)
148 268 F23 Date Of Fault 8 (Upper 16 Bits - See Note 1) Note 1
149 269 F23 Date Of Fault 8 (Lower 16 Bits - See Note 1) Note 1
150 270 F22 Time Of Fault 8 (Upper 16 Bits - See Note 1) Note 1
151 271 F22 Time Of Fault 8 (Lower 16 Bits - See Note 1) Note 1
152 272 F76 Type Of Fault 8
153 273 F52 Distance To Fault 8
154 274 F53 Line Z1 To Fault 8 (Magnitude)
155 275 F23 Date Of Fault 9 (Upper 16 Bits - See Note 1) Note 1
156 276 F23 Date Of Fault 9 (Lower 16 Bits - See Note 1) Note 1
157 277 F22 Time Of Fault 9 (Upper 16 Bits - See Note 1) Note 1
158 278 F22 Time Of Fault 9 (Lower 16 Bits - See Note 1) Note 1
159 279 F76 Type Of Fault 9
160 280 F52 Distance To Fault 9
161 281 F53 Line Z1 To Fault 9 (Magnitude)
162 282 F23 Date Of Fault 10 (Upper 16 Bits - See Note 1) Note 1
163 283 F23 Date Of Fault 10 (Lower 16 Bits - See Note 1) Note 1
164 284 F22 Time Of Fault 10 (Upper 16 Bits - See Note 1) Note 1

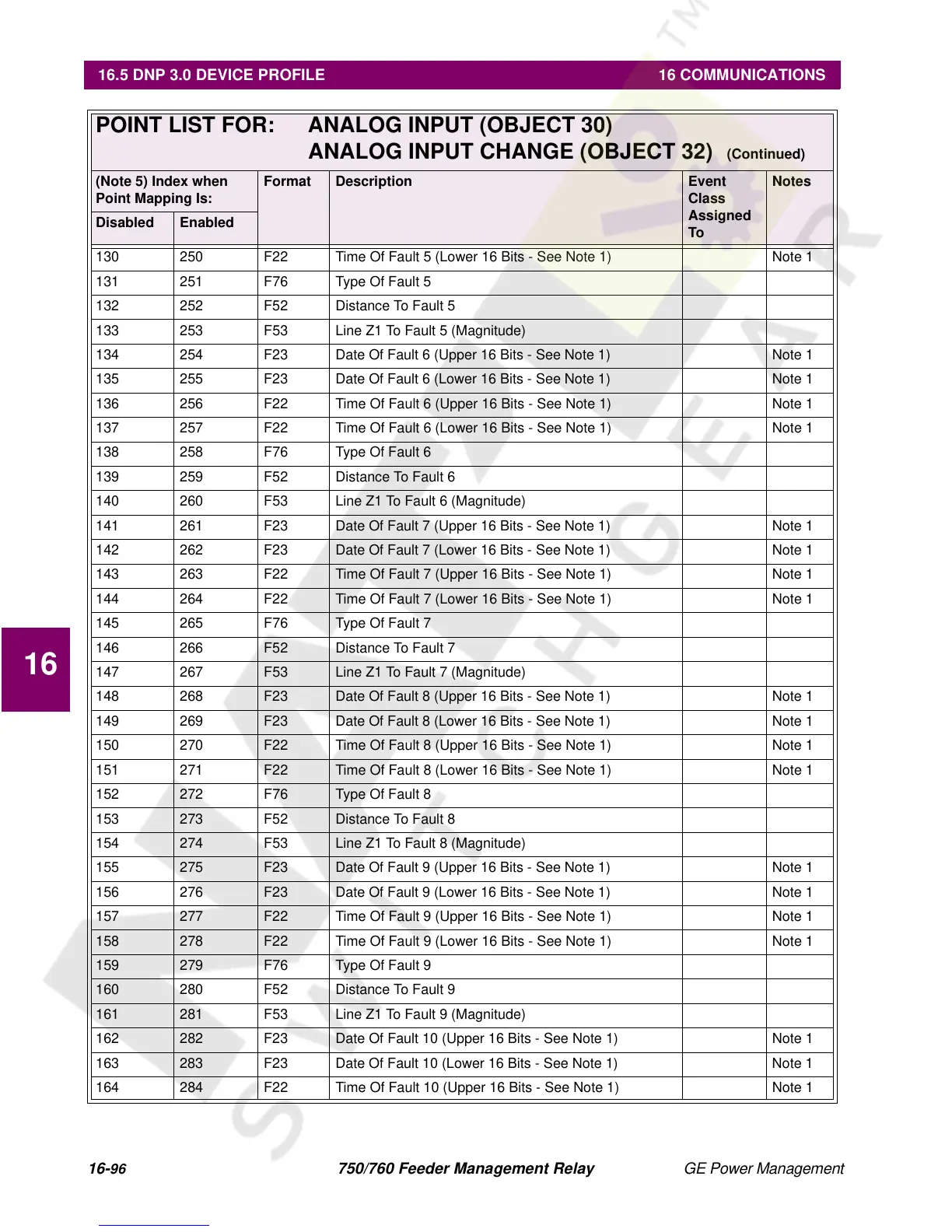

POINT LIST FOR: ANALOG INPUT (OBJECT 30)
ANALOG INPUT CHANGE (OBJECT 32)
(Continued)
(Note 5) Index when
Point Mapping Is:
Format Description Event
Class
Assigned
To
Notes
Disabled Enabled
