4.4.3 Connect compressed air supply
Introduction
This section describes how to connect the compressed air supply.
For requirements on air supply, refer to Section 4.1 Site requirements, on page 82 and
General technical data, on page 164.
Connect compressed air supply
to ÄKTAprocess
ActionStep

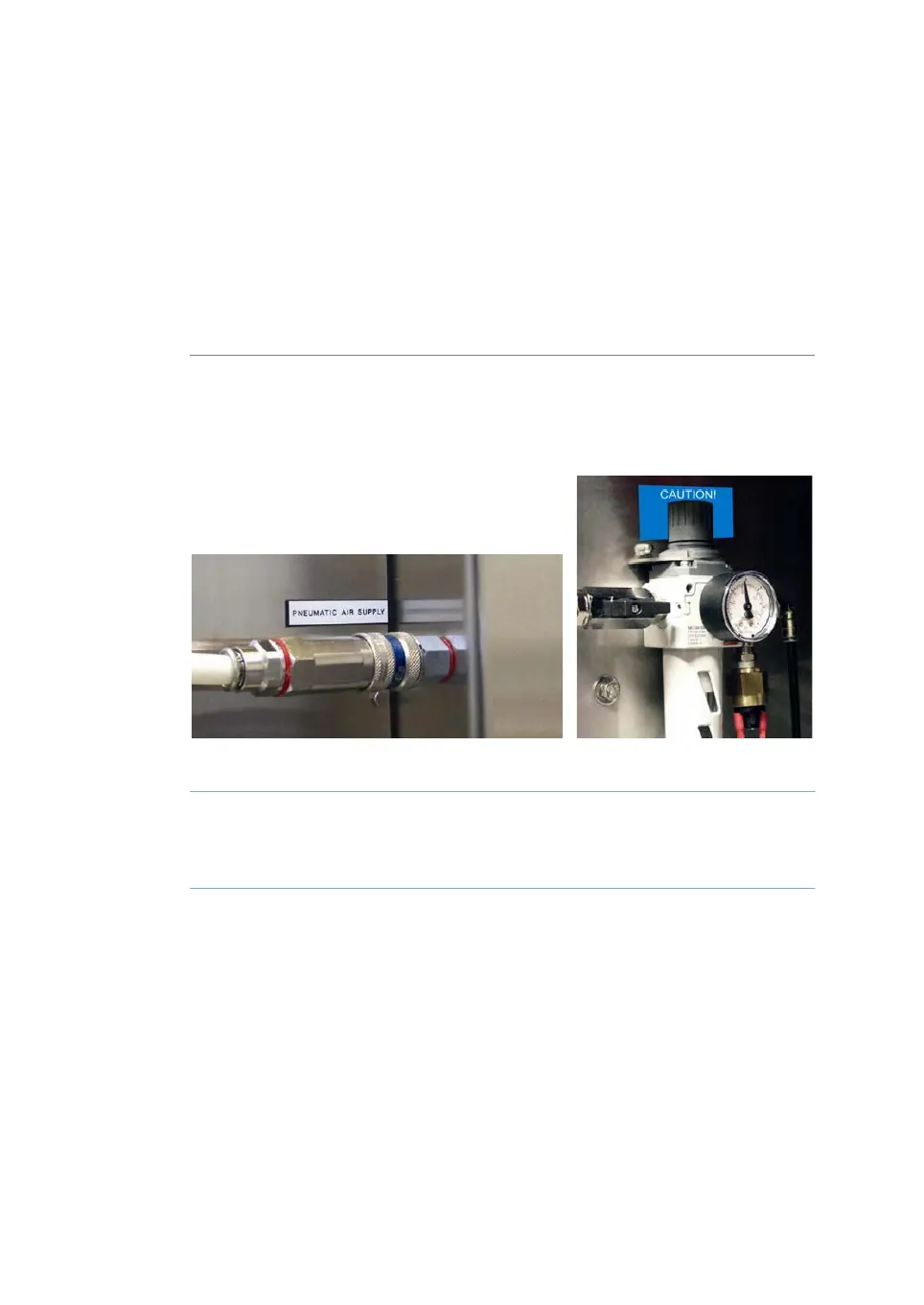

Connect the compressed air as shown in the image above.1
Make sure that the supply pressure to the cabinet is between 5.5 and 7 bar g.
The manometer is set to 6 bar g at the factory and shall not be changed.
2
98 ÄKTAprocess Operating Instructions 29-0252-49 AA
4 Installation
4.4 ÄKTAprocess Setup
4.4.3 Connect compressed air supply
