September 2004
B-2 CE Mark Compliance
LVD Compliance For compliance with the European Union’s Low Voltage Directive
(73/23/EEC). the analyzer requires an external power disconnect
device such as a switch or circuit breaker. The disconnect device must
be marked as such, clearly visible, directly accessible, and located
within 1.8 m (6 ft) of the Model AT868.
Note: If the instructions in this appendix are followed, the unit will
comply with the Low Voltage Directive (73/23/EEC).

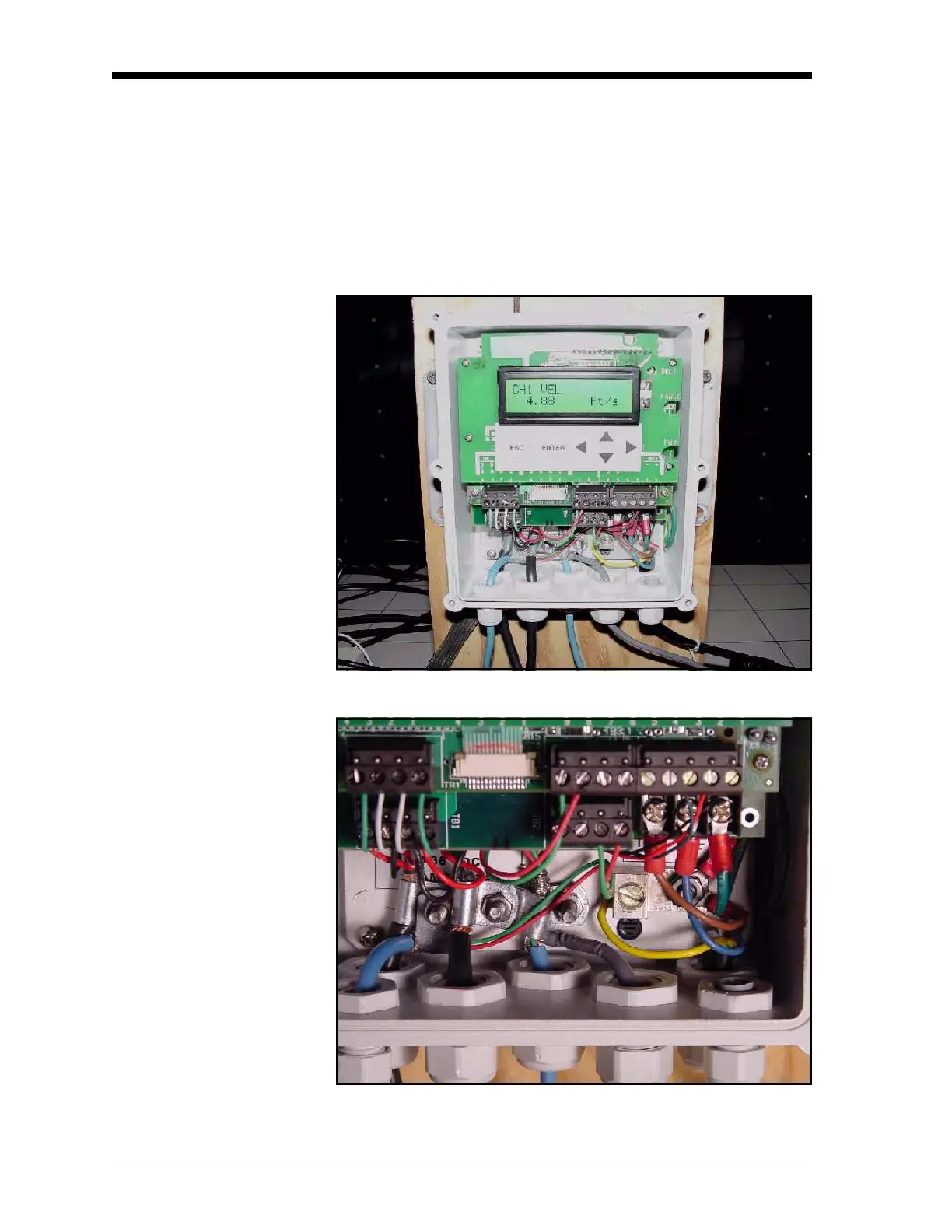

Figure B-1: Example of CE Wired AT868
Figure B-2: Enlargement of B-1
