4-36 B90 LOW IMPEDANCE BUS DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL
FRONT PANEL INTERFACE CHAPTER 4: INTERFACES
4

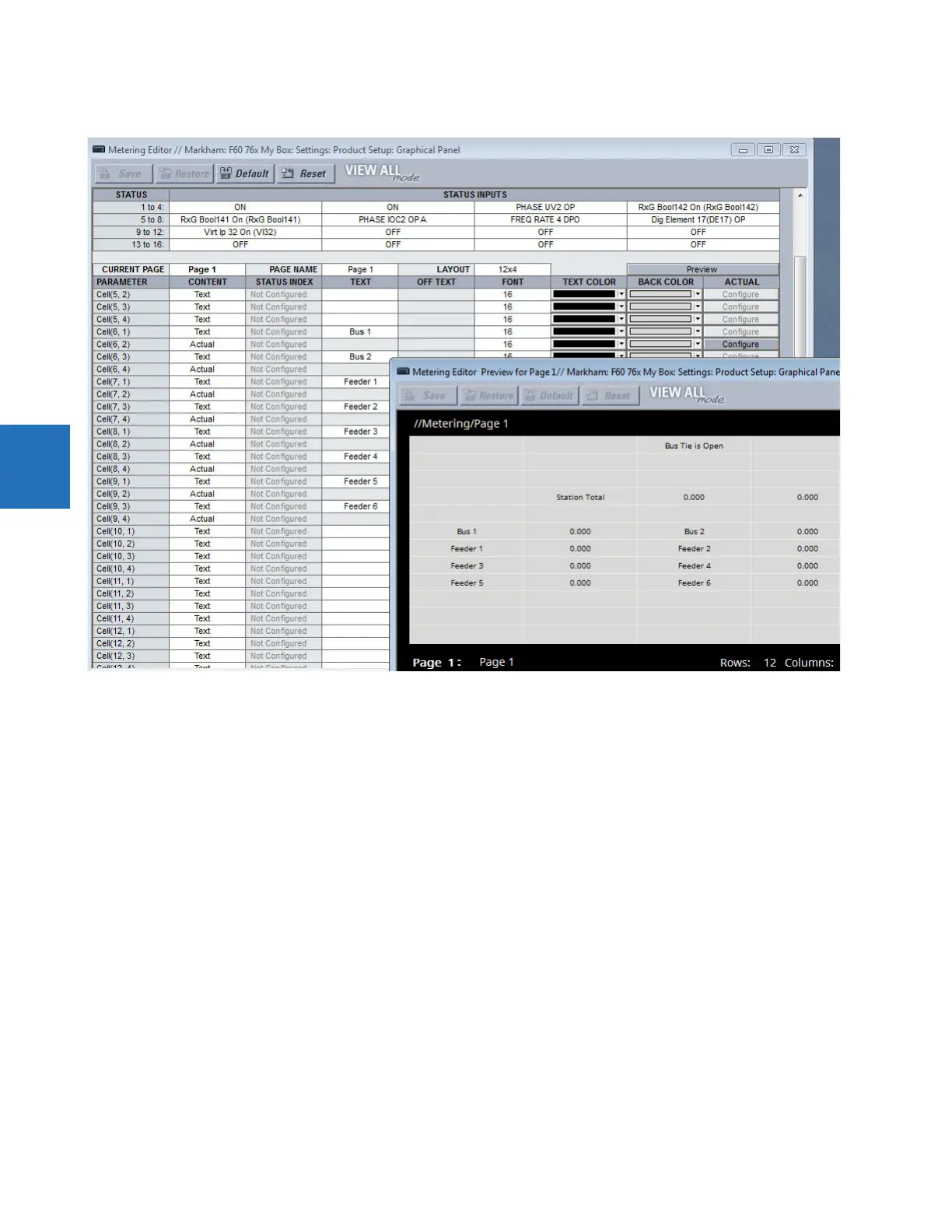

Figure 4-43: Metering editor with preview window
The inputs are selected at the top. Select from the drop-down list or start typing in the field.
The page, page name, and grid layout are set below the inputs.
Content to display is configured with the cell lines. The content can be actual values, a status indicator, or text.
• Actual value — Select from the FlexAnalogs applicable to the B90, where a FlexAnalog is an analog parameter
• Status — Select from the FlexLogic operands identified in the Status Inputs at the top of the window
• Text — Enter text to display in the table, for example name of table or column heading
If the metering input setting is other than OFF, the value of the selected metering input displays, formatted according to
the size, text color, units, multiplier, and decimal configuration. Otherwise either the Text or the Off Text displays depending
on the value of the operand selected by setting Status Input/Index.
A maximum of eight Status Inputs/Indexes can be used per metering page and 16 in all metering pages.
The following buttons display at the top of the window:
• Save — Updates the connected device if online or the open setting file if offline with any changes made in the edit
session on any page
• Restore — Undoes any changes that have not been saved
• Default — Changes all actual value settings on all metering pages to their factory default values
• Reset — Displays factory default values. Previous settings are not lost unless you save the reset window.
