4-16 B90 LOW IMPEDANCE BUS DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL

FRONT PANEL INTERFACE CHAPTER 4: INTERFACES

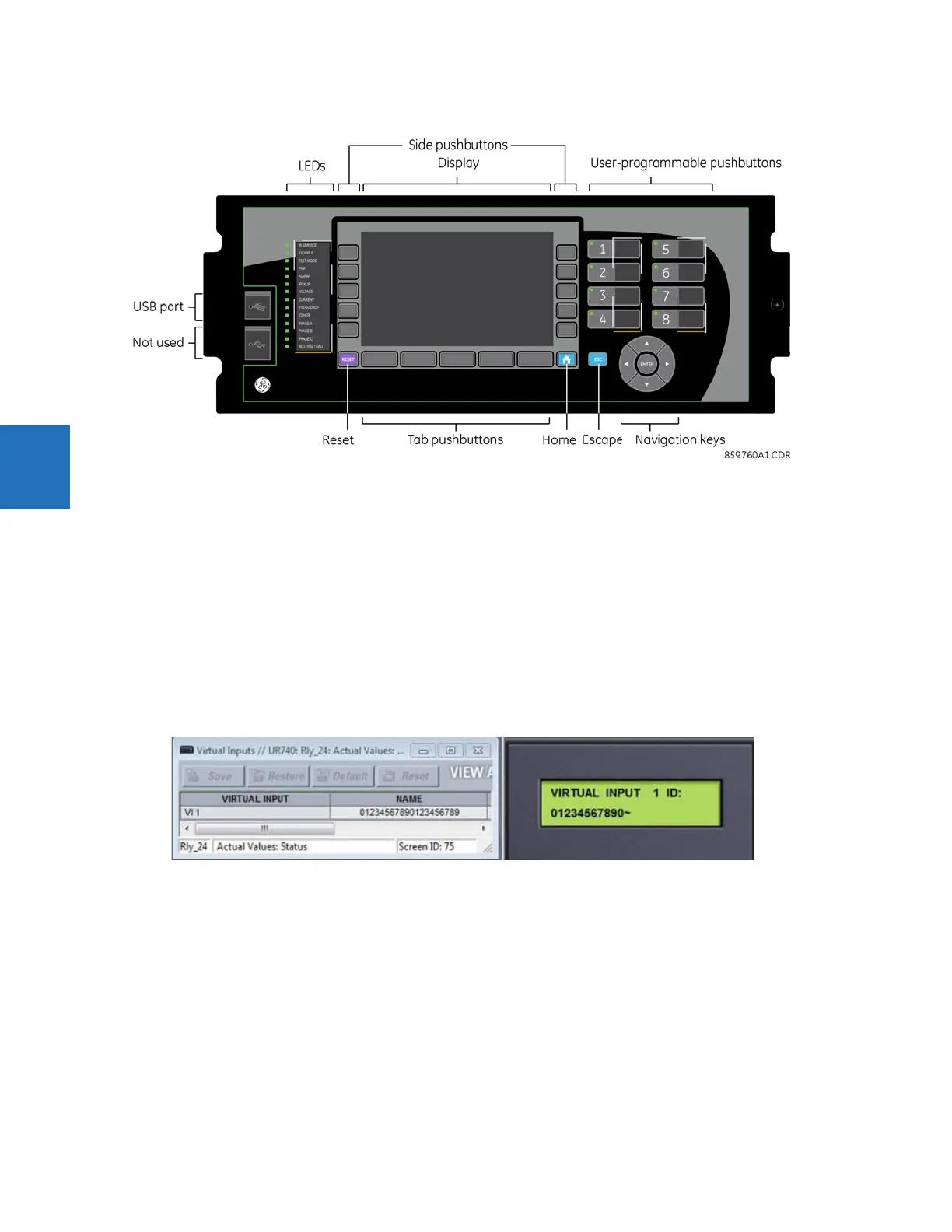

Figure 4-19: Graphical front panel

4.2.2 Front panel display

4.2.2.1 Enhanced and standard front panels

Messages display on a backlit liquid crystal display (LCD) to make them visible under poor lighting conditions. When the

keypad and display are not actively being used, the display defaults to user-defined messages. Any high-priority event-

driven message overrides the default messages and displays.

Settings file conversion from previous firmware versions is supported.

Up to 20 characters can be used to configure some setting names in the software, while up to 12 characters display on the

front panel. A tilde ~ symbol is used for the twelfth character on the front panel when a name extends beyond the 12

character limit. An example is shown for a Virtual Input.

Figure 4-20: Tilde symbols displays with names 12 or more characters long

The front panel can be viewed and used in the EnerVista software, for example to view an error message displayed on the

front panel or the LEDs.

To view the front panel in EnerVista software:

1. Click Actual Values > Front Panel, then any option.
