CHAPTER 4: INTERFACES FRONT PANEL INTERFACE
B90 LOW IMPEDANCE BUS DIFFERENTIAL SYSTEM – INSTRUCTION MANUAL 4-45
4

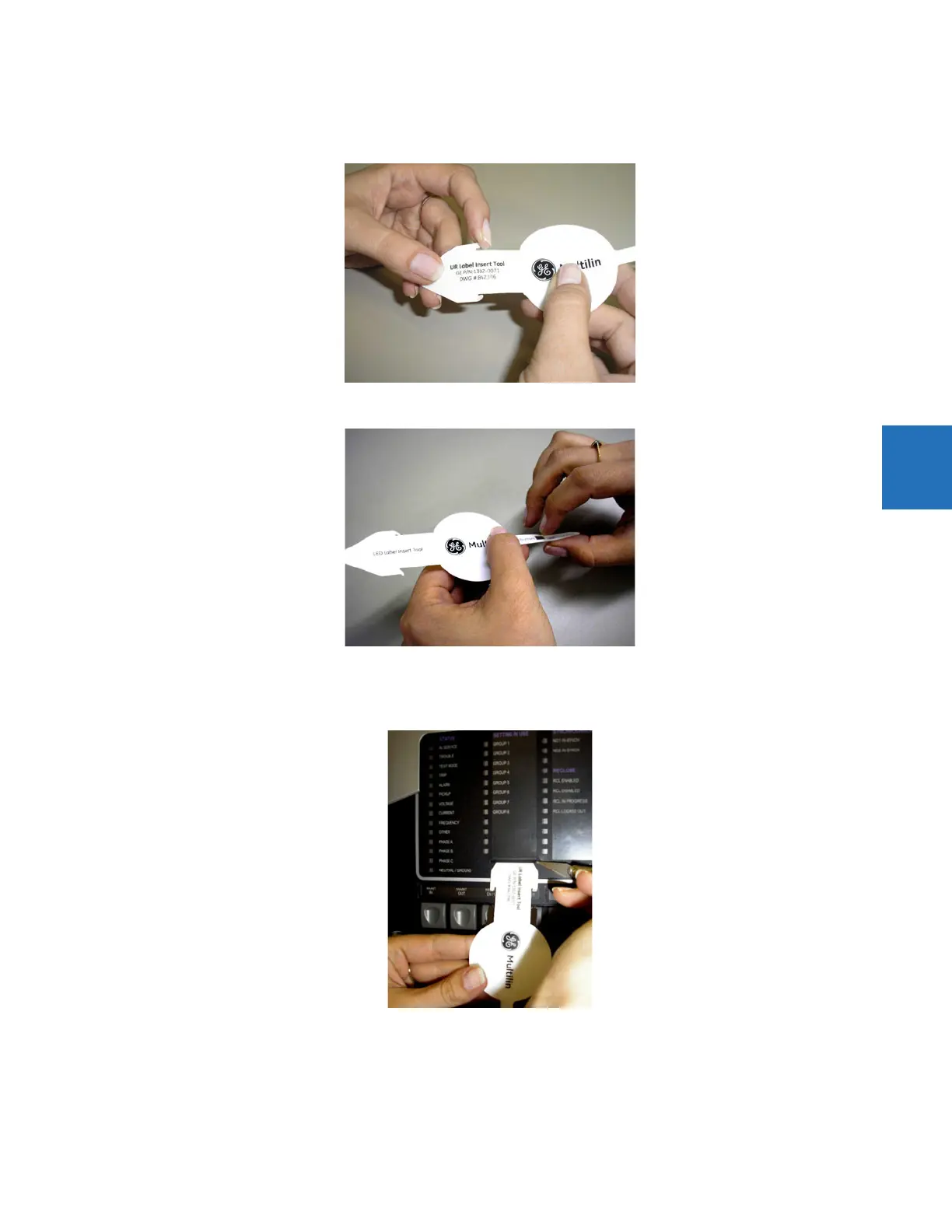

To set up and use the label removal tool:
1. Bend the tabs at the left end of the tool upwards as shown.
Bend the tab at the center of the tool tail as shown.
To remove the LED labels from the B90 front panel and insert the custom labels:
1. Use the knife to lift the LED label and slide the label tool underneath. Ensure that the bent tabs are pointing away from
the relay.
