4-54
B90 LOW IMPEDANCE BUS DIFFERENTIAL SYSTEM – INSTRUCT
ION MANUAL
FRONT PANEL INTERFACE
CHAPTER 4: INTERFACES
4

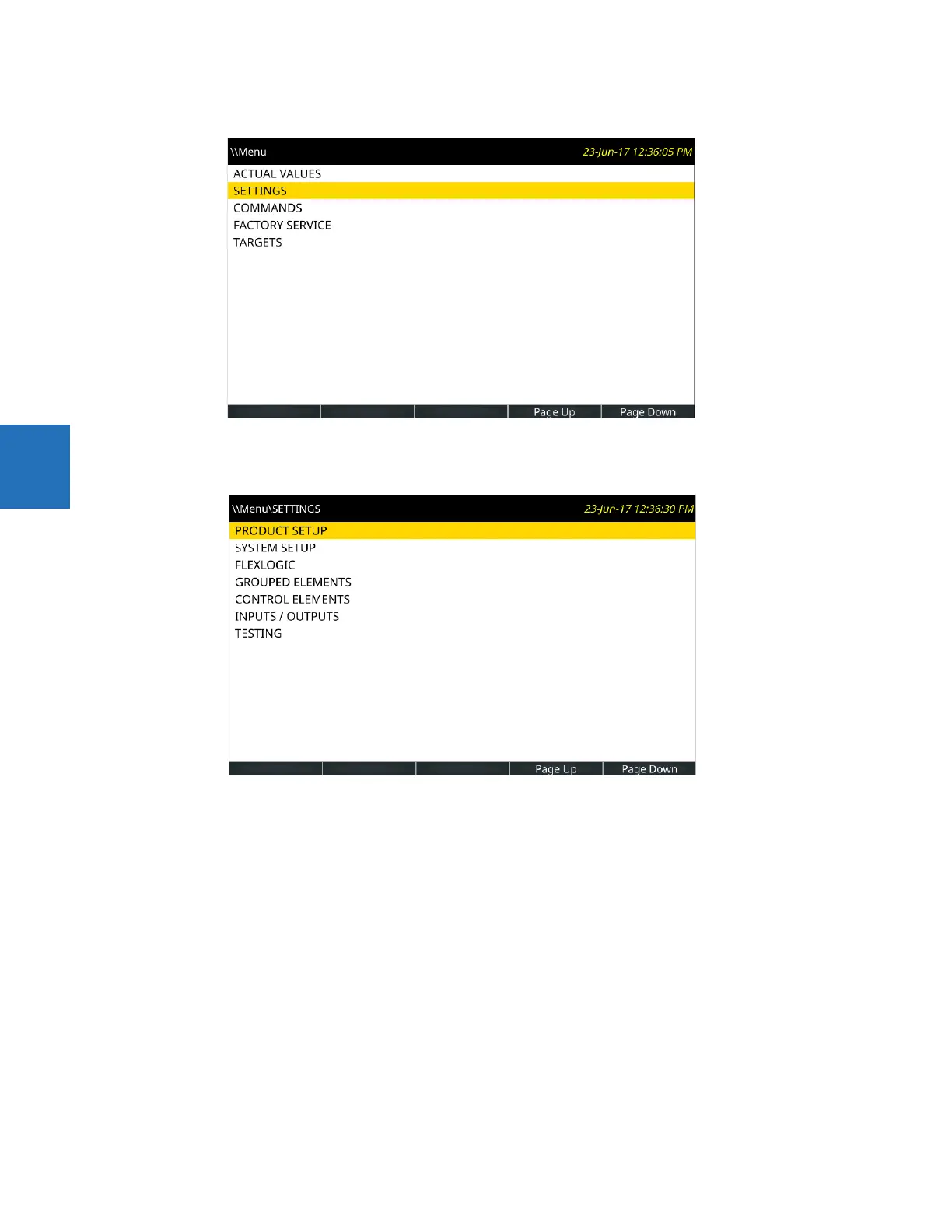

Figure 4-55: Mai
n menu
Use the Up or Down pushbutton to select
SETTINGS
, then press the Right or
ENTER
pushbutton.
Figure 4-56: Settings menu
With
PRODUCT SETUP
selected, press the Right or
ENTER
pushbutton.
159
161
