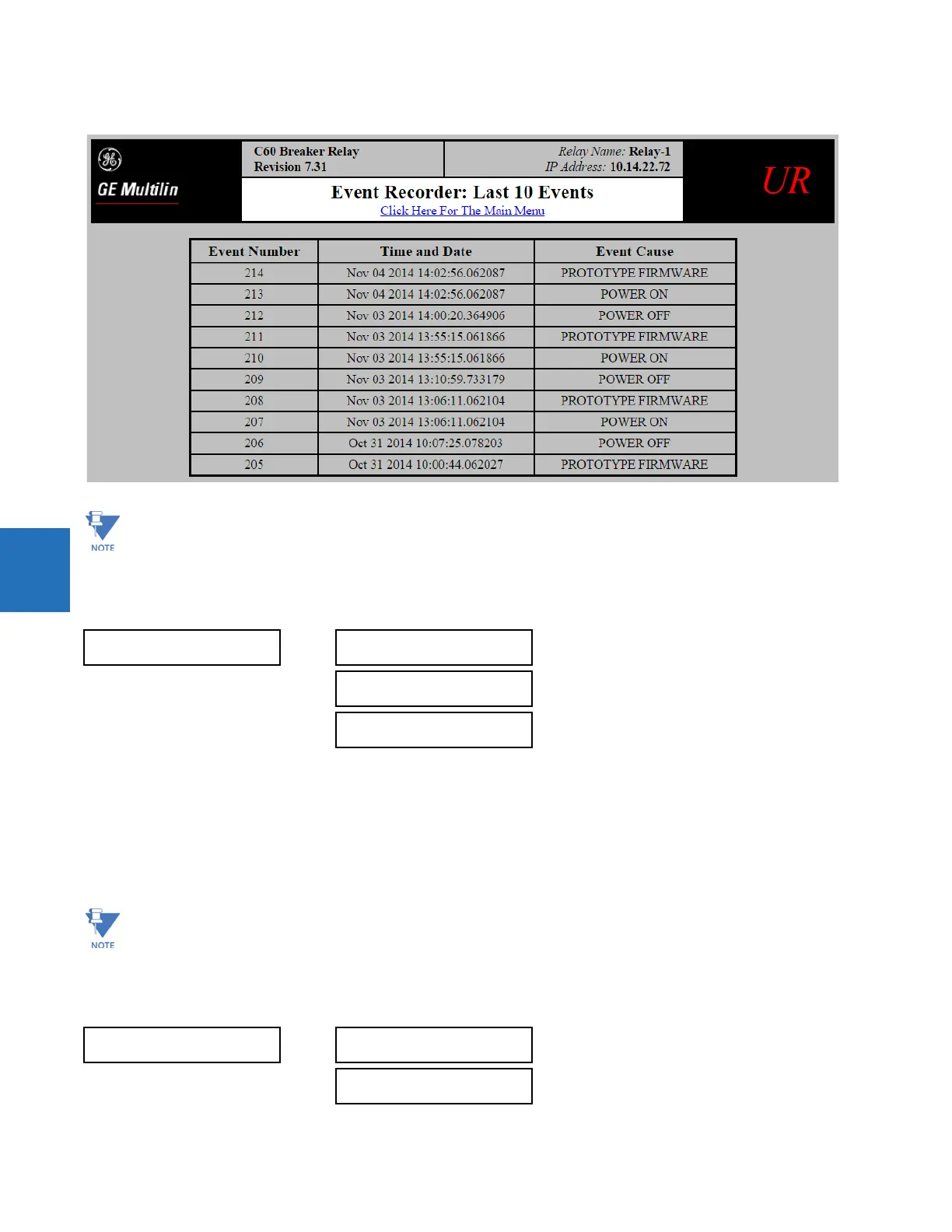

Figure 5-45: Example of UR web page showing event records
5.3.6.14 TFTP protocol
SETTINGS PRODUCT SETUP COMMUNICATIONS TFTP PROTOCOL
The Trivial File Transfer Protocol (TFTP) can be used to transfer files from the B90 over a network. The B90 operates as a
TFTP server. TFTP client software is available from various sources, including Microsoft Windows NT. The dir.txt file obtained
from the B90 contains a list and description of all available files, for example event records and oscillography.
The "put" function is not for security reasons. You can enter a "get" command but not a "put" command.
TFTP MAIN UDP PORT NUMBER — To close the port, set the port number to 0. Any change takes effect when the B90 is
restarted.
5.3.6.15 IEC 60870-5-104 protocol
SETTINGS PRODUCT SETUP COMMUNICATIONS IEC 60870-5-104 PROTOCOL
Do not set more than one protocol to the same TCP/UDP port number, as this results in unreliable operation of
those protocols.
TFTP PROTOCOL
TFTP MAIN UDP PORT
NUMBER(69): 69
Range: 0 to 65535 in steps of 1
TFTP DATA UDP PORT 1
NUMBER: 0
Range: 0 to 65535 in steps of 1
TFTP DATA UDP PORT 2
NUMBER: 0
Range: 0 to 65535 in steps of 1
Do not set more than one protocol to the same TCP/UDP port number, as this results in unreliable operation of
those protocols.
IEC 60870-5-104
PROTOCOL
IEC TCP PORT
NUMBER: 2404
Range: 0 to 65535 in steps of 1
IEC NETWORK
CLIENT ADDRESSES
See below
To Next Page
