INSTALLATION
D485 MODBUS TO DEVICENET CONVERTER – USER GUIDE 2–5
Mechanical installation
DIN-RAIL MOUNTING The DIN-rail connector is internally connected to the D485.

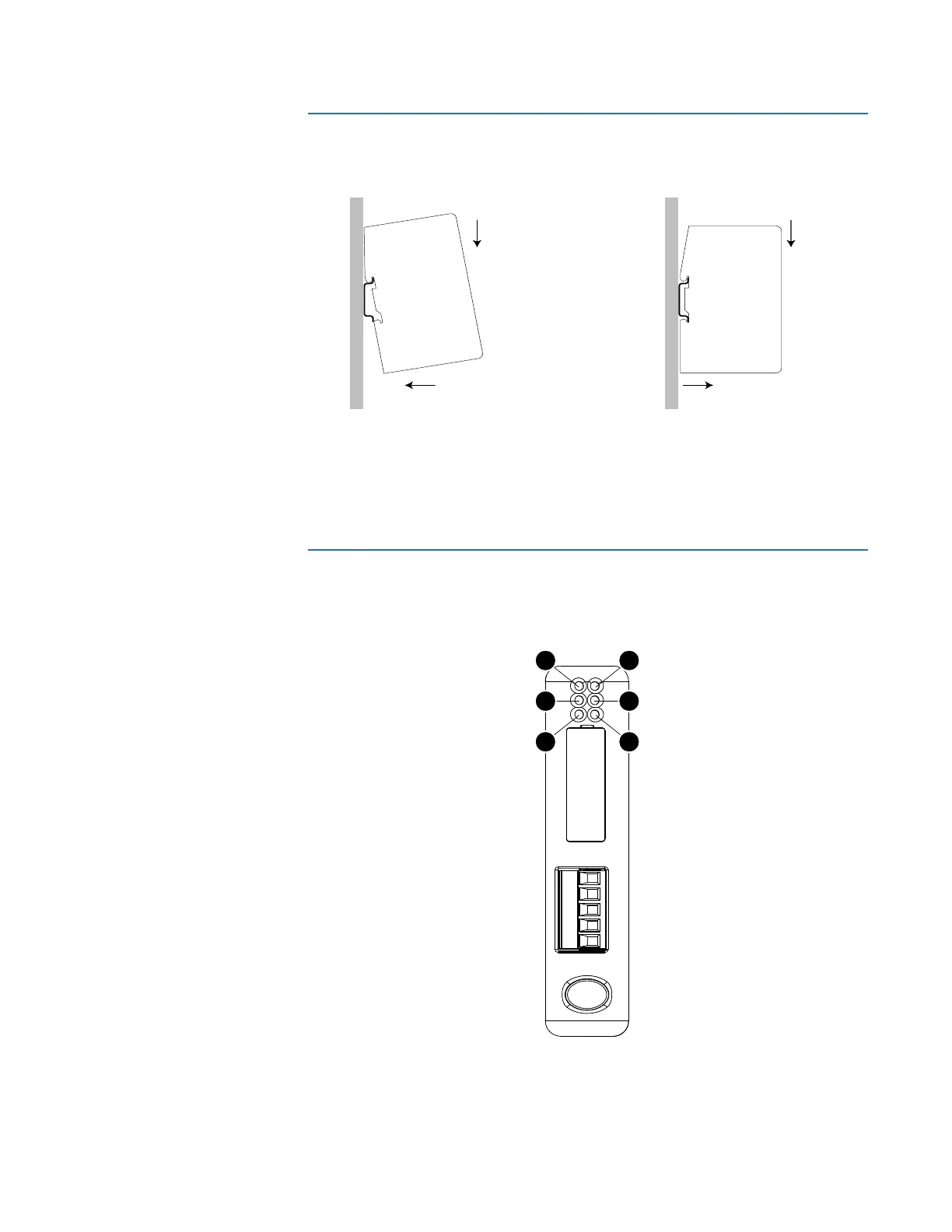

Figure 2-8: Mounting the D485 to the DIN-rail
To snap the D485 on, first press the D485 downwards (1) to compress the spring on the
DIN-rail connector, then push the D485 against the DIN-rail as to make it snap on (2)
To snap the D485 off, push the D485 downwards (1) and pull it out from the DIN-rail (2), as
to make it snap off from the DIN-rail.
Indicators and switches
STATUS INDICATORS The status indicators for the D485 Modbus to DeviceNet Converter are indicated below.
Figure 2-9: D485 status indicators
11
22
ON OFF
1
3
5
2
4
6
