APPLICATION EXAMPLE

D485 MODBUS TO DEVICENET CONVERTER – USER GUIDE 9–5

System configuration

OVERVIEW An overview of the system configuration described in this document is shown below.

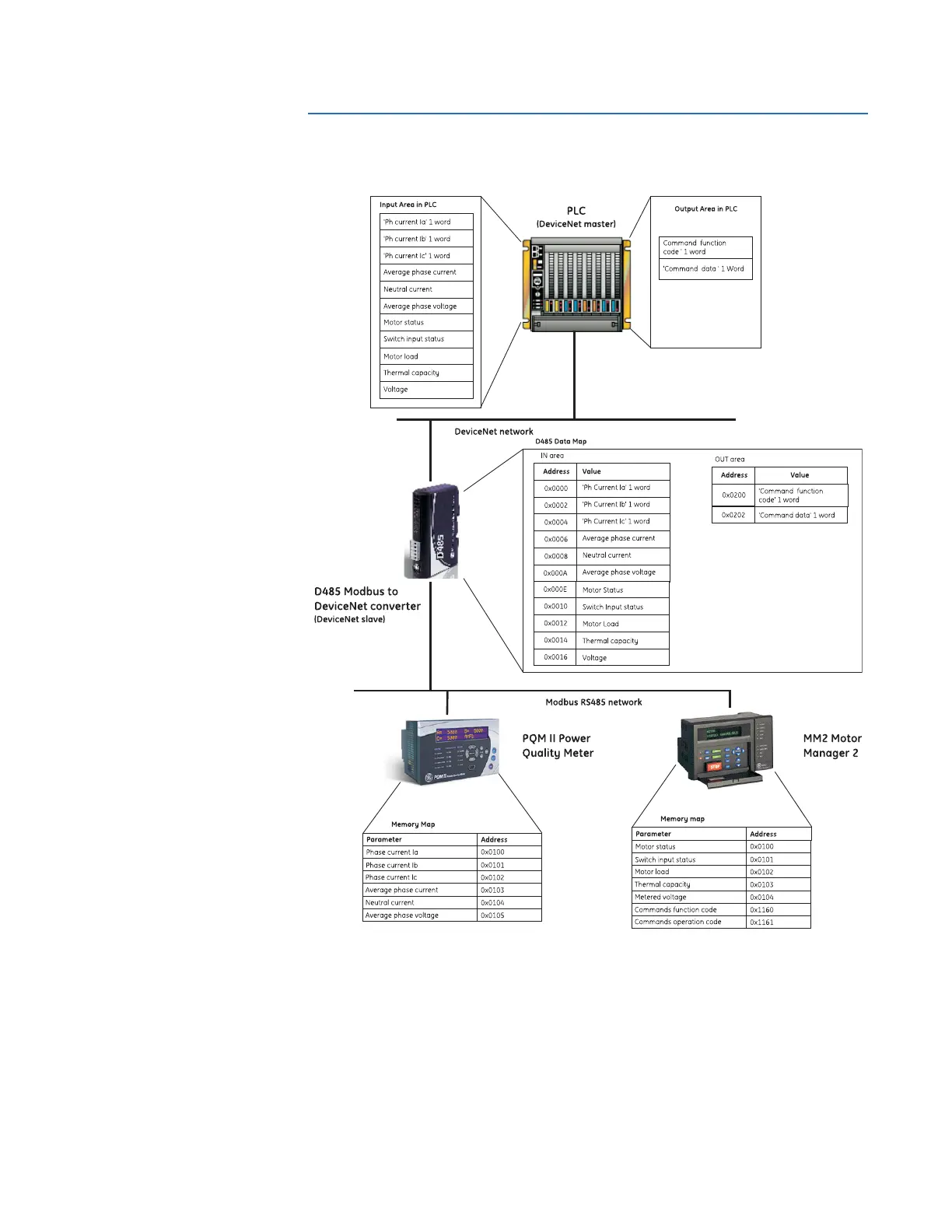

Figure 9-3: System configuration

The following procedures describe how to configure for the D485 with the PQMII and MM2.

It is assumed that the reader has some basic knowledge of the Modbus RTU protocol and

DeviceNet communication protocol.
