SOFTWARE OVERVIEW
D485 MODBUS TO DEVICENET CONVERTER – USER GUIDE 4–9
If the Sub-net Overview button is pressed, a new window will appears that graphically
displays how the data is mapped to the internal memory of the D485.
Configuration main window
DESCRIPTION The main window is shown below. It is composed of the navigation window, parameter
window, information window, and configuration line indicator.

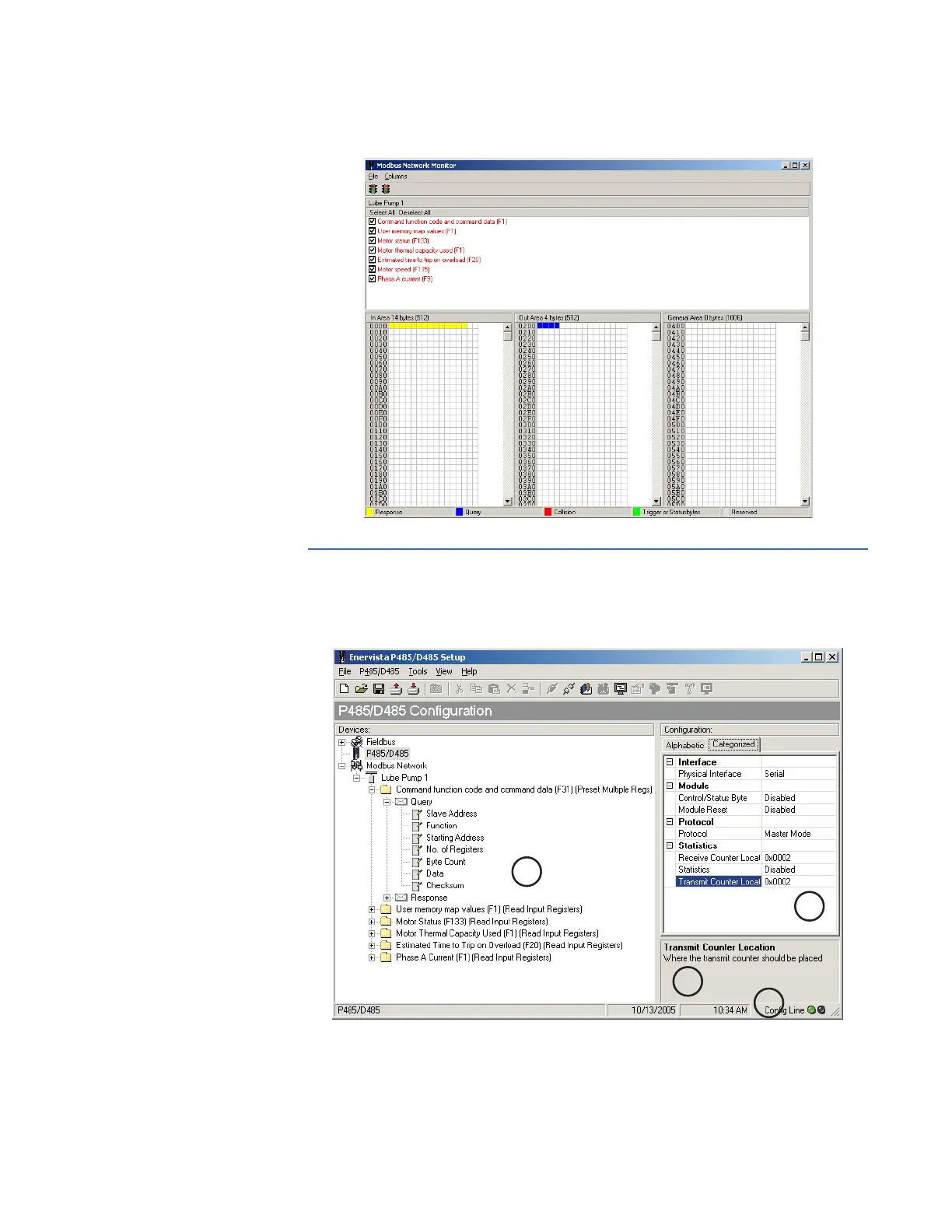

Figure 4-3: Configurator main window
A
D
C
B
