APPLICATION EXAMPLE
D485 MODBUS TO DEVICENET CONVERTER – USER GUIDE 9–13
1. Expand the Modbus Network item in the tree. All the configured parameters will
appear as commands.

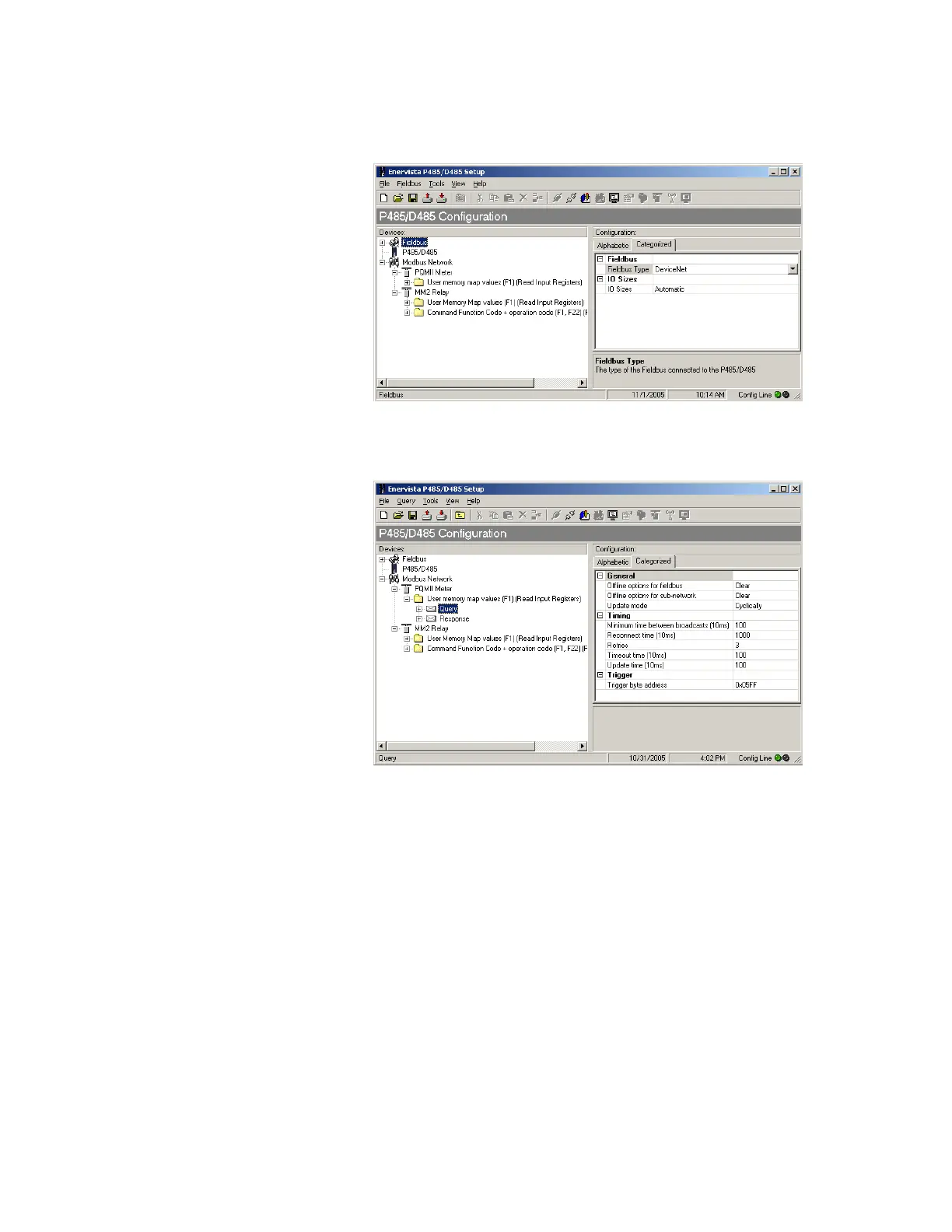

Figure 9-21: Expanding the tree
2. Expand the User memory map values (F1) command in the PQMII Meter item and
click on Query.
Figure 9-22: Expand query
3. Change the Reconnect time to 5 seconds by changing the value to 500 (500 × 10 ms
= 5 seconds) and the Retries to 5.
