2 Operating controls
86500-IMG rev 3 GE Healthcare 7

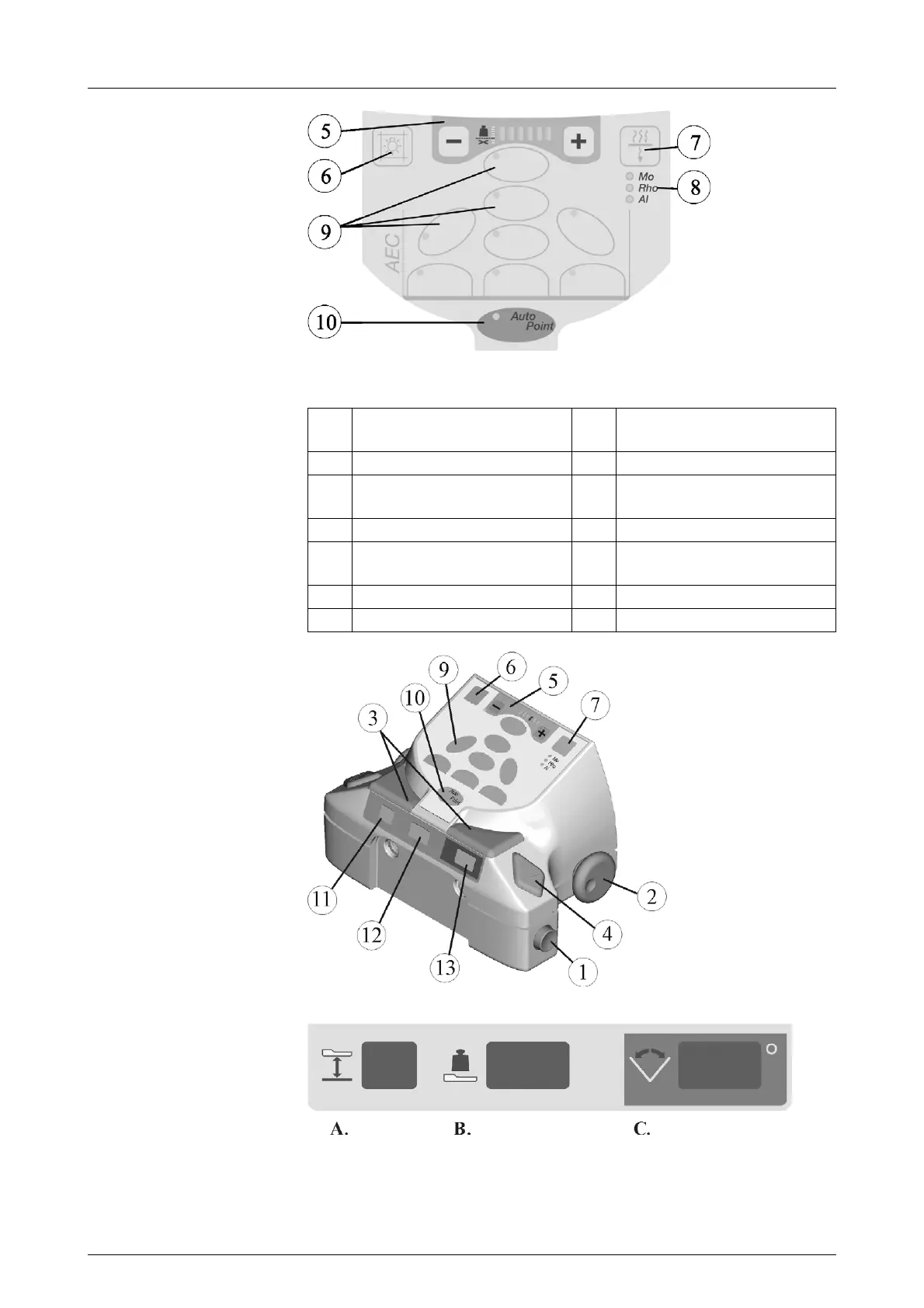

Fig 2.3. The Positioning Control Center panel membrane
Fig 2.4. Position Control Center controls
Fig 2.5. A: Breast thickness display (cm), B: Compression force display (N),C: C-Arm
rotation display (°)
1 Compression paddle release
button
8 Filter selection display
2 Manual compression wheel 9 AEC detector selector buttons
3 C-Arm rotation buttons 10 AutoPoint detector button
and LED indicator
4 Vertical movement buttons 11 Breast thickness display
5 Compression force control
(1-6)
12 Compression force display
6 Collimator light switch 13 C-Arm rotation display
7 Filter selection button
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
