Chapter 2. INSTALLATION
12 | ADTS 405 Mk2 Instruction Manual-English © 2015 General Electric Company – All rights reserved.

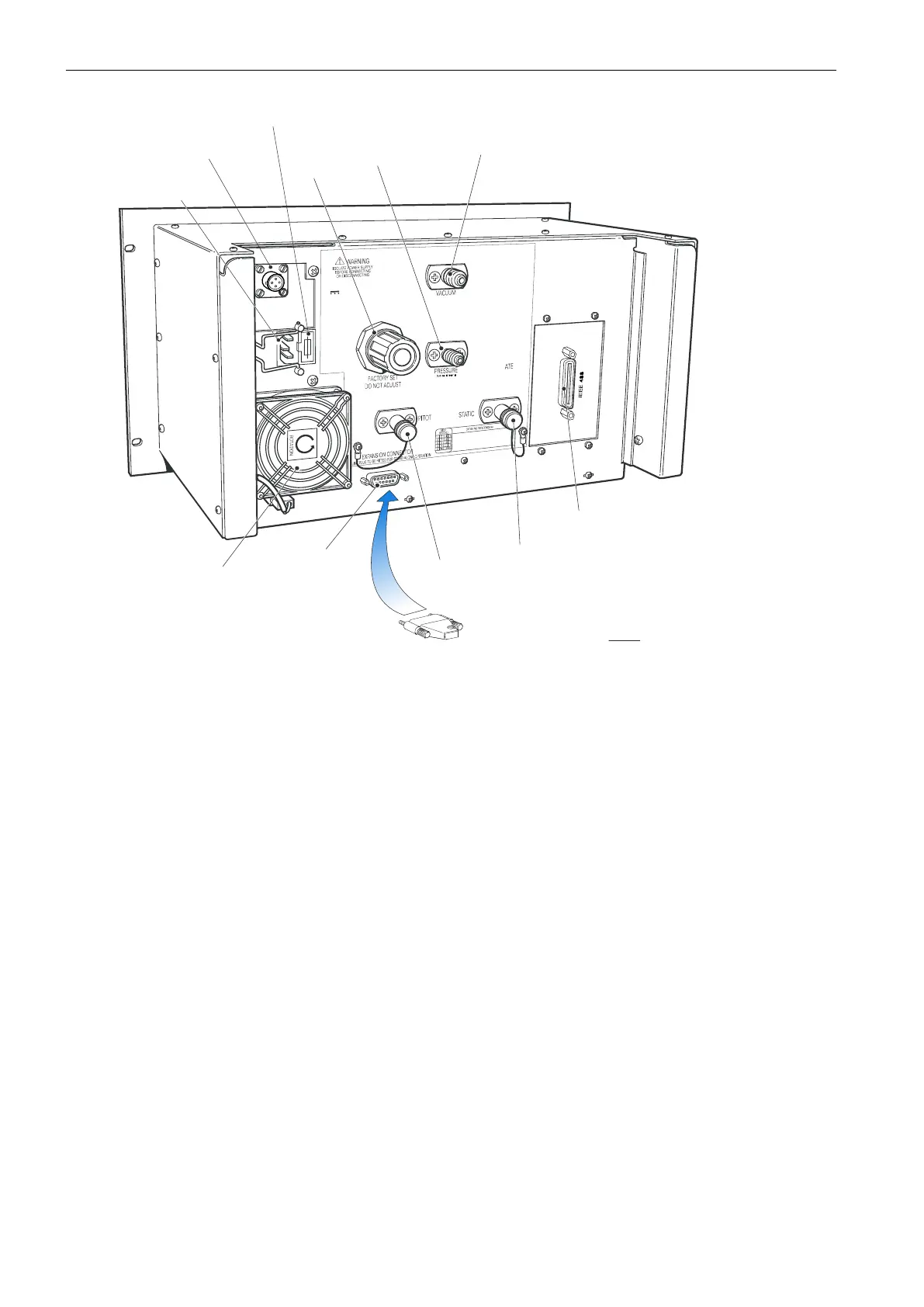

Figure 2-5: ADTS 405R Rear Panel
Note:
When port not used with other equipment
the Expansion Port Plug
MUST
be fitted.
100/120/230V~50/60Hz
115V~400Hz
400VA
FUSED2x
T5A250VHRC
AC
INPUT
~
24-30V
400VA
DC
INPUT
Cooling fan
air intake
Expansion port
(used with GE
PV103R pump unit)
Pitot
output
connector
Static
output
connector
IEEE 488
interface
connector
Source Pressure
Input connector
Source Vacuum
Input connector
Pressure
regulator
DC power supply
Connector (option)
AC fuses holder
AC power supply
connector
