4.4 Routine Maintenance
INFORMATION Absolute cleanliness of the work area, tools and equipment is
essential. Carry out the maintenance tasks detailed in 4.3 “Maintenance Tasks”.
4.4.1 Servicing Procedures
The following procedures provide instructions to test and replace items for the operator. Return the
unit to the service depot for further testing and replacement of items.
4.4.2 Replacing the output connector o-ring
Do the inspection as detailed in maintenance task B, do the following if the o-ring is worn or
damaged:
a. Carefully remove the o-ring from the small groove at the top of the connector.
b. Fit a new o-ring in the small groove at the top of the connector.
c. Check the o-ring is located in the groove and not damaged after fitting.
Note: Damage to this o-ring causes leaks.

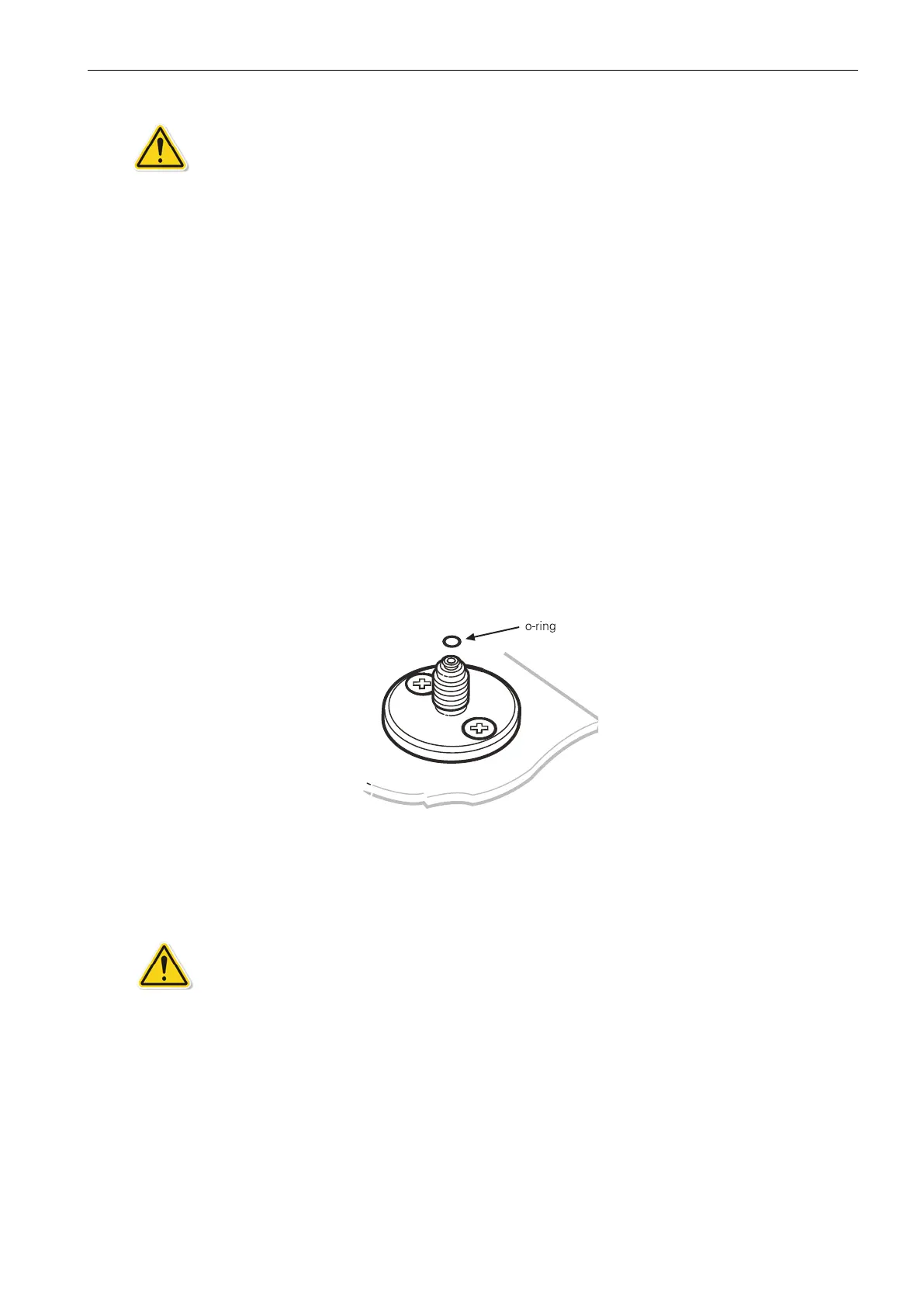

Figure 4-1: Output Connector O ring Seal
4.4.3 Fuse Replacement
Replace the fuse when detailed in Section 5, “Testing and Fault Finding”
WARNING THERE IS A RISK OF ELECTRIC
SHOCK/ELECTROCUTION
IF THERE IS NOT A
PROTECTIVE EARTH IN PLACE. THE ADTS MUST, AT ALL TIMES, BE CONNECTED TO THE
SUPPLY PROTECTIVE EARTH/GROUND. THE POWER SUPPLY CABLE AND CONNECTOR
MUST BE CORRECTLY RATED FOR THE POWER SUPPLY. ONLY USE POWER CABLES
SUPPLIED BY GE SPECIFICALLY FOR THE ADTS.
