Further Testing
© 2015 General Electric Company – All rights reserved. ADTS 405 Mk2 Instruction Manual-English | 67
5.6.6 Testing of Standard and Optional External Communication Ports
The following tests should only be done if the serviceability of an option facility is suspected or
when an error occurs.
• USB ‘A’ Port
This port is for future function expansion only. Current use is for service purposes only.
• USB ‘B’ Port
This port is for future function expansion only. Current use is for service purposes only.
• RS232 Port
This port is for future function expansion only. Current use is for service purposes only.
Note: There are no operator accessible functions on any of the USB ports.
• Ethernet Port
This port provides password controlled access to various sections of the internal ADTS filing
system. Areas available and relevant to operator activities are:
1. The “Printed” records archive (see section 6.2.14 for Print key functions).
2. The Test Programs archive (see section 6.2.15 for ETP key functions).

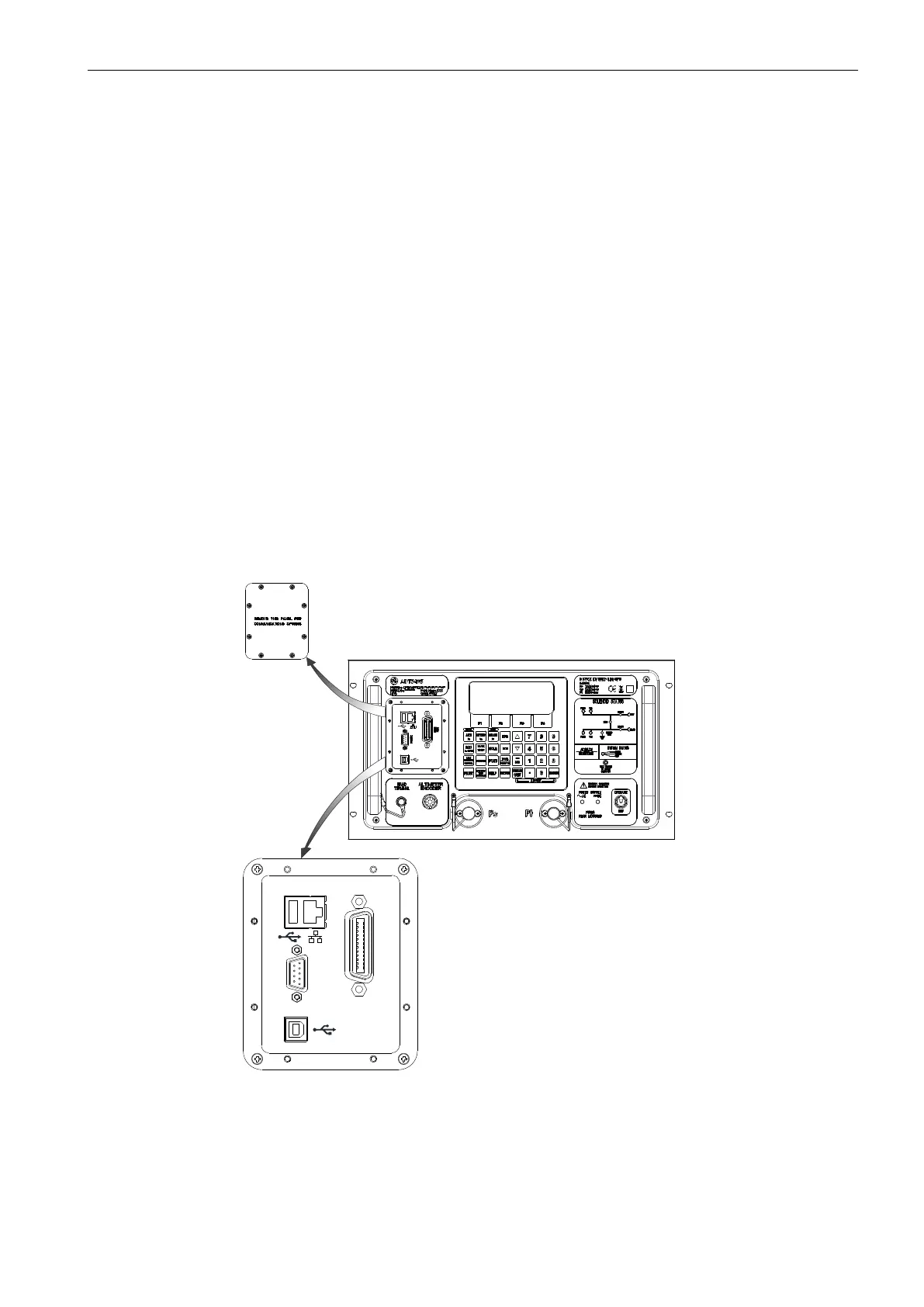

Figure 5-2: External Communications
Remove communications
port cover plate after loosening
the eight captive retaining
Detail of communications
connectors
RS232
IEEE 488
