5-14 F650 Digital Bay Controller GEK-113000AE
5.1 UPGRADE FROM VERSION BELOW V7.00. 5 BOOTCODE AND FIRMWARE UPGRADE
5
At this point, proceeding with the upgrade will erase all the data stored in the equipment, including the calibration settings in
firmware version previous to 1.50. Therefore, it is necessary to save all settings to a file before following with the process
(figure below).

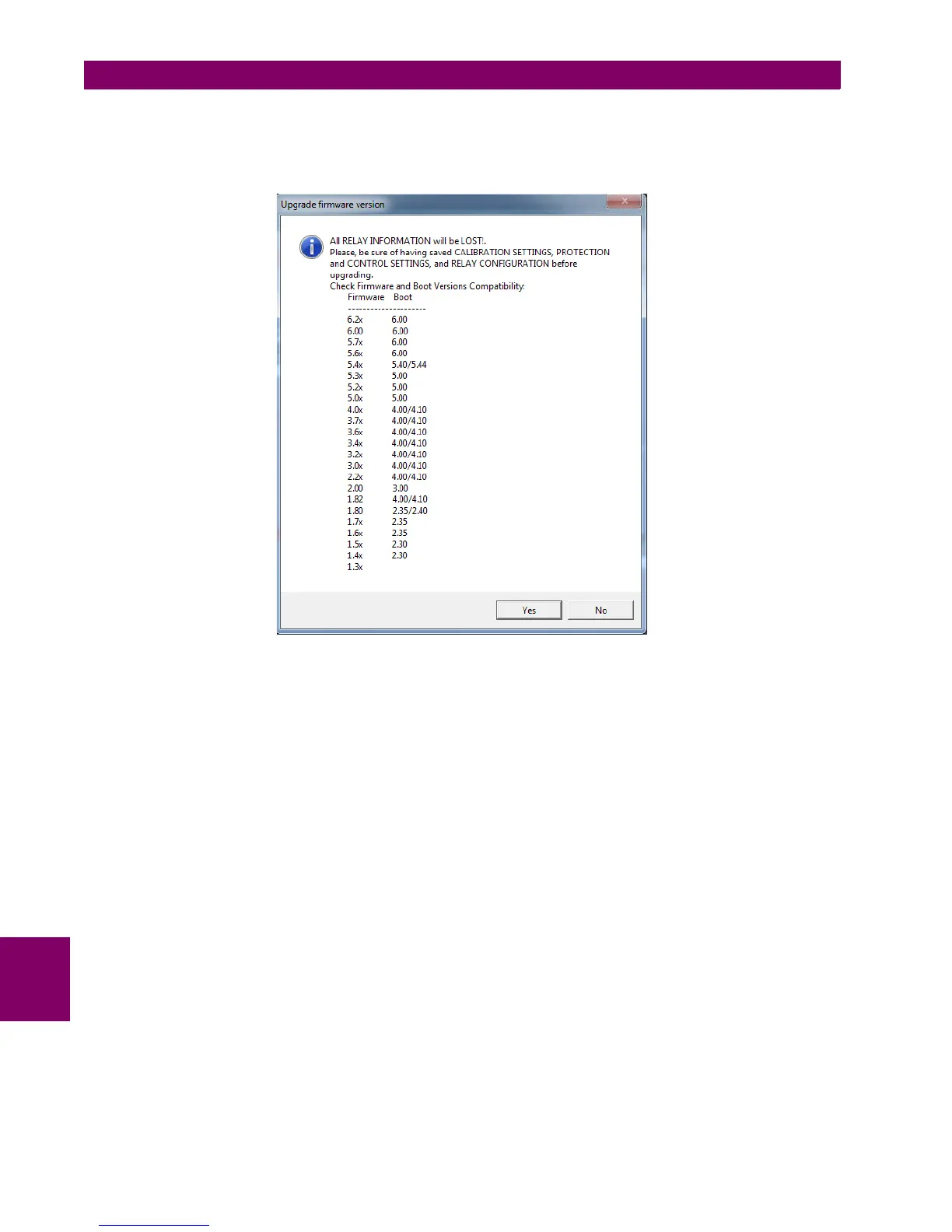

Figure 5–26: FIRMWARE UPGRADE STARTUP
If when click Yes button (figure above) an advise message is given (figure below), local network
reboot is necessary. Then please proceed as follows:
• Go to STARTUP>CONTROL PANEL>NETWORK CONNECTION>LOCAL NETWORK> Right mouse
key>Disable. Now the Local Network status will be shown as Disabled.In the same screen with Right mouse key
over LOCAL NETWORK click Enable and wait until Enabled status is shown. Then press Upgrade Firmware button
to continue the process (figure below).
