GEK-113000AE F650 Digital Bay Controller 5-13
5 BOOTCODE AND FIRMWARE UPGRADE 5.1 UPGRADE FROM VERSION BELOW V7.00.
5

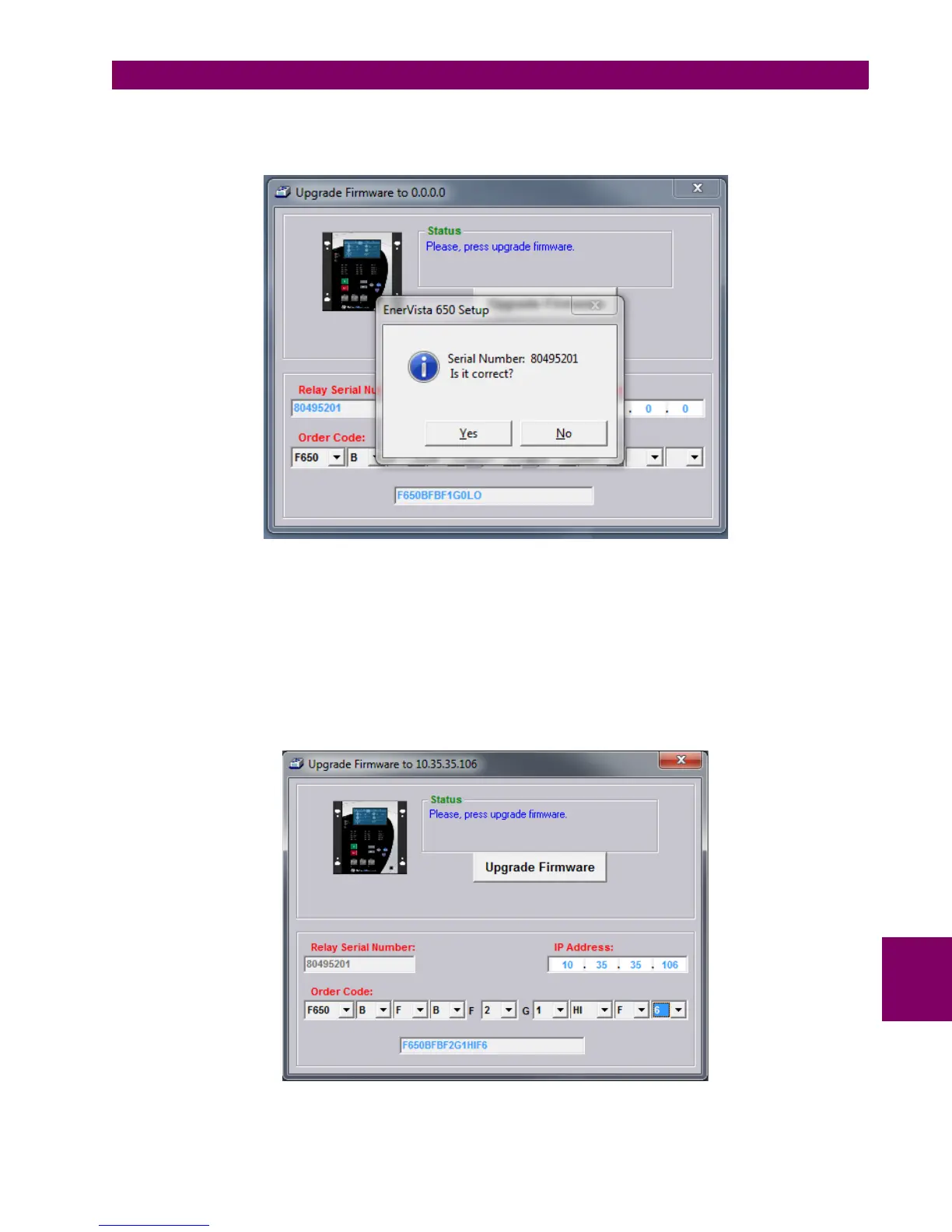

4. Fill the upgrade parameters in next pop-up windows
Figure 5–24: RELAY SERIAL NUMBER
• In firmware version previous to 1.70 the Enervista 650 Setup program requires the IP address of the relay under
upgraded and its serial number.
• In versions 1.70 and higher it is also necessary to enter the ordering code for the relay. See figure below.
5. If the relay is not an enhanced model or control functionality then click the Upgrade Firmware button to continue the
process (figure below).
Figure 5–25: FIRMWARE UPGRADE ACCEPTANCE WINDOW
