5-16 F650 Digital Bay Controller GEK-113000AE
5.1 UPGRADE FROM VERSION BELOW V7.00. 5 BOOTCODE AND FIRMWARE UPGRADE
5
In case special functionality model with password requirement please contact GE Multilin.
The following parameters must be clearly indicated in the order:
• Unit serial number
• Current model option (before memory upgrade)
• Desired model option (after memory upgrade)
• Unit MAC address (available in the identification label)
7. Once the upgrade parameters have been entered, press the "Aceptar" button. When communication has been
established, the program will show a message requesting to turn OFF and back ON the relay to continue with the
upgrade process.(figure below).

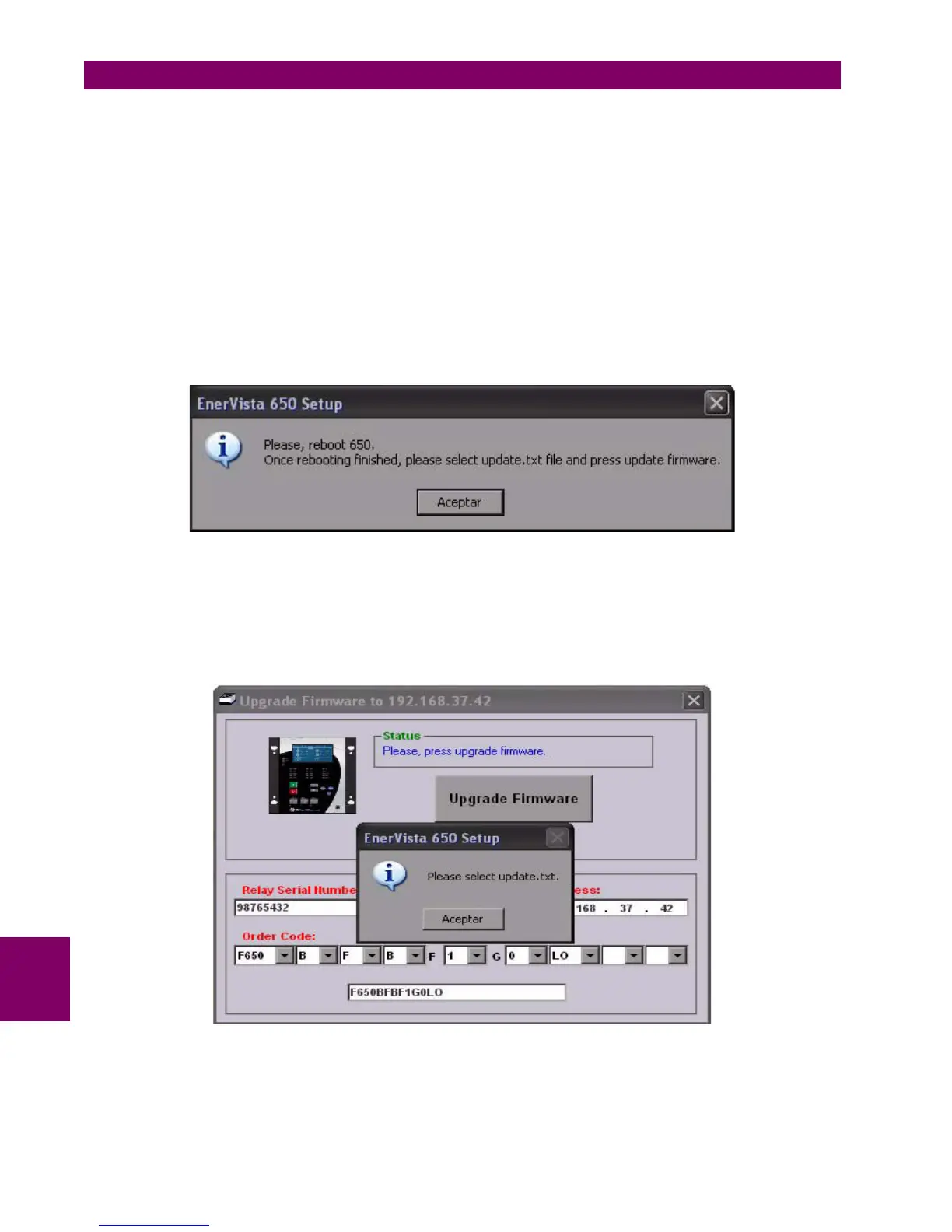

Figure 5–29: RELAY REBOOT STEP
8. Once the relay has been turned off and on, a new screen (figure below) will require the firmware upgrade files
("upgrade.txt"). Wherever from this Upgrade.txt file would be obtained (http://www.gegridsolutions.com/index.htm or
from TS Dept. at any GE Multilin facility), then it must be saved in some directory in the root drive or in the desktop of
the PC.
Figure 5–30: FIRMWARE FILE ACCEPTANCE
If the files are downloaded from the web, they are compressed in a zip file. Proceed to extract all files and save them in the
directory just created
