5 BOOTCODE AND FIRMWARE UPGRADE 5.1 UPGRADE FROM VERSION BELOW V7.00.
5
Selection of Upgrade.txt is shown in figure below. Select the desired "Upgrade.txt" file and click Open (Abrir) button.

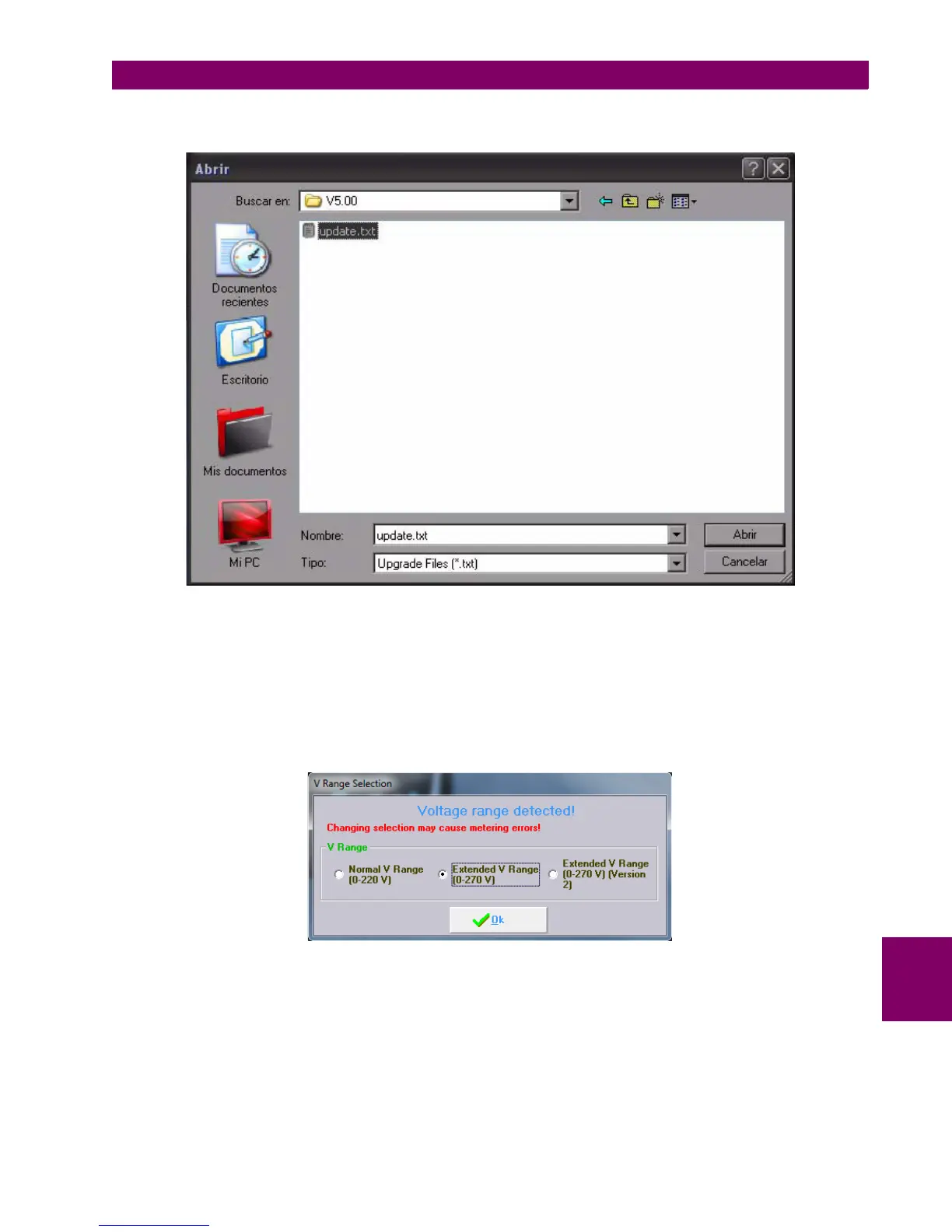

Figure 5–31: FIRMWARE FILE SELECTION
9. Now a voltage range selection window will appear (figure below). This voltage range is closely related to the serial
number of the relay. For relays that have been manufactured with firmware version 5.70 or higher (From 2015 May),
the EnerVista 650 Setup program automatically pre-selects the appropriate voltage range for the unit based on the
serial number, showing the selection with a step line square over the proper option. Click OK button.
In case non-correct option is selected, metering errors may arise during normal operation mode (current and voltage
values incorrectly displayed). In order to correct this behavior, firmware upgrade process must be repeated and right
option must be selected.
Figure 5–32: AC VOLTAGE RANGE SELECTION-EXTENDED V RANGE (VERSION 2)
