47

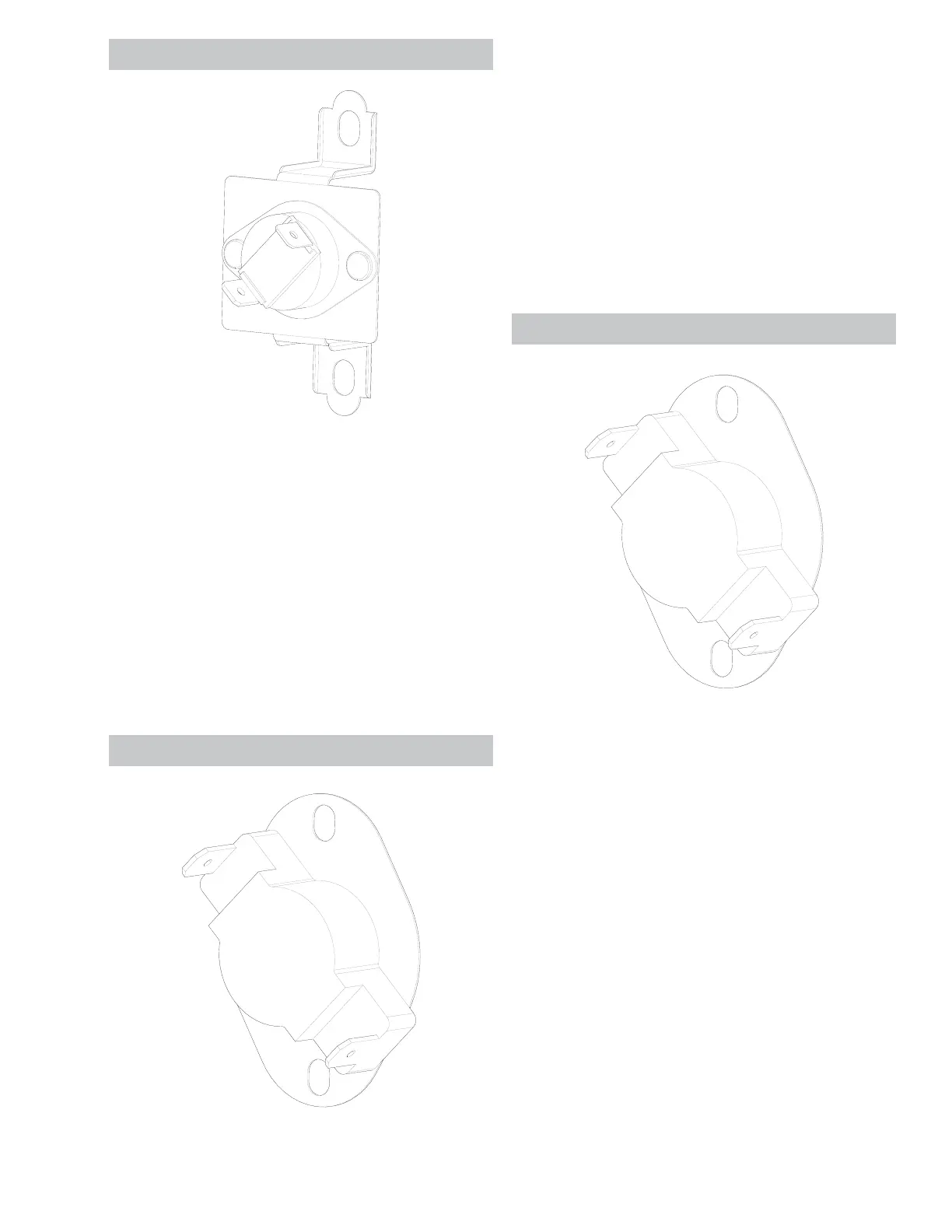

High Limit Thermostat (Gas)
Oper at i ng Volt age: 240 VAC
Opens a t 308° + - 8°F
Cl oses at 2 48 ° + - 12 °F
Label Color: Purple
Gas Hi g h Li m i t Th er m o st at Rem ov al
1. Disconnect power from the unit .
2. Remove the drum.
3. Remove the high limit thermostat wires.
4. Remove the two 1/4 in. hex screws that hold the
high limit thermostat to the heater housing.
Inlet Thermostat (Gas)
Operating Voltage: 240 VAC
Opens a t 260° + - 6°F
Cl oses at 2 21 ° + - 10 °F
Label Color: Orange
Gas In l et Th er m o st at Rem ov al
1. Disconnect power from the unit .
2. Remove the drum.
3. Remove the inlet thermostat wires.
4. Remove the two 1/4 in. hex screws that hold the
inlet thermostat to the heater housing.
Outlet Thermostat (Gas)
Operating Voltage: 240 VAC
Cl oses at 1 55 ° + - 5°F
Opens a t 165° + - 5°F
Label Color: Blue
Gas Ou t l et Th er m ost a t Rem ov al
1. Disconnect power from the unit .
2. Remove the drum.
3. Remove the outlet thermostat wires.
4. Remove the two 1/4 in. hex screws that hold the
outlet thermostat to the blower housing.
See Ga s Hi g h Li m i t Th e r m o s t a t Lo c a t i o n o n p a g e 4 4 .
See D r u m Rem o v a l o n p a g e 35 .
See D r u m Rem o v a l o n p a g e 35 .
See Ga s Ou t l e t Th e r m o s t a t Lo c a t i o n o n p a g e 17 .
See D r u m Rem o v a l o n p a g e 35 .
See Ga s I n l e t Th e r m o s t a t Lo c a t i o n o n p a g e 4 4 .
