GE HEALTHCARE OPTIMA XR200AMX/XR220AMX
D
IRECTION 5336113-1EN, REVISION 10 INSTALLATION MANUAL
Page 76 Section 4.10 Installing hardware options

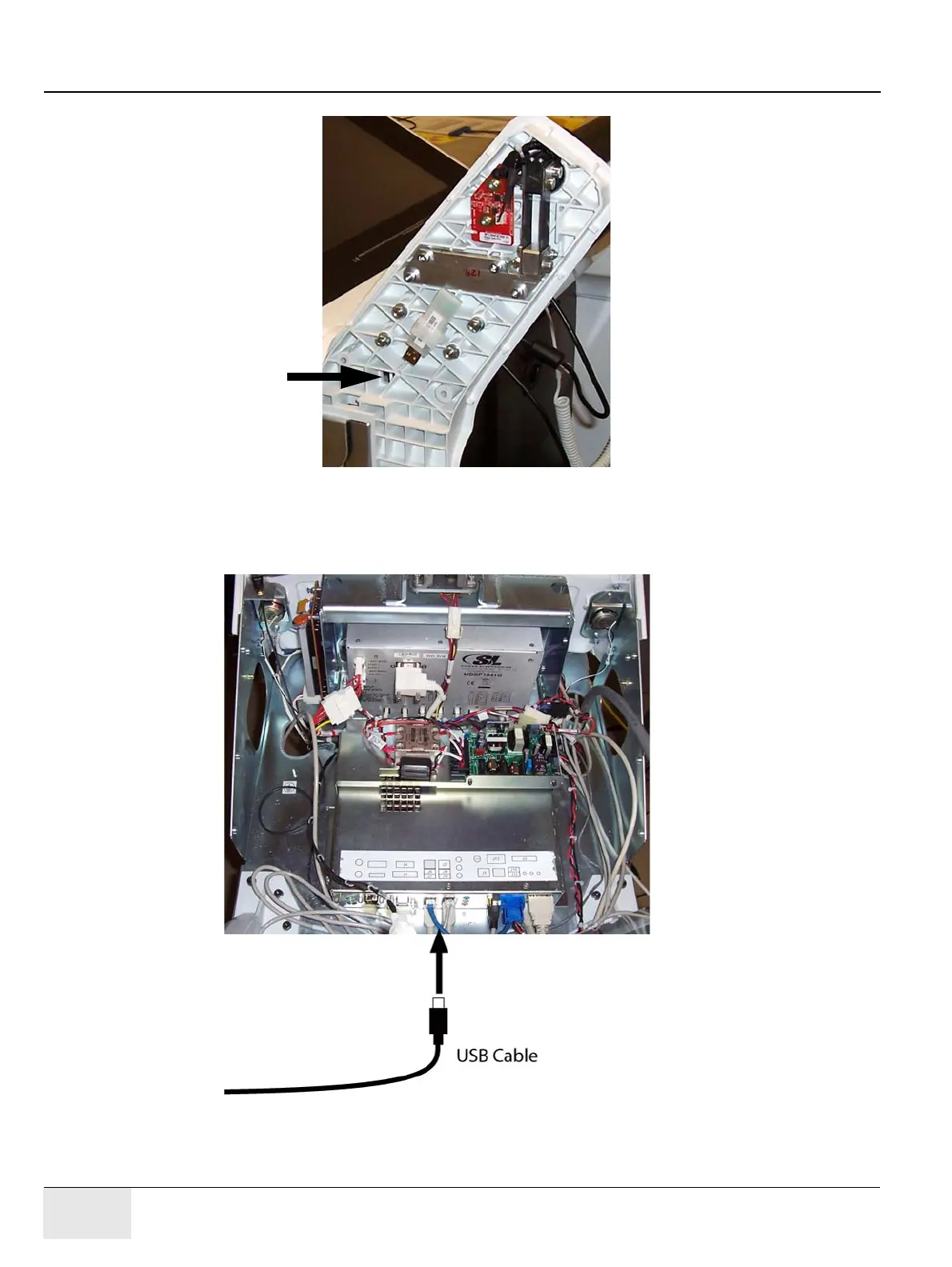

Figure 4-3 Cable access hole and receiver placement on system
5. Attach the USB receiver to the plastic clip with the barcode facing out as shown in Figure 4-3.
6. Plug the USB cable into a USB port on the PC. See Figure 4-4.
Cable
access
hole
