GE ImageQuant LAS 4000 Original Instructions

3.5.1 Attaching the camera head

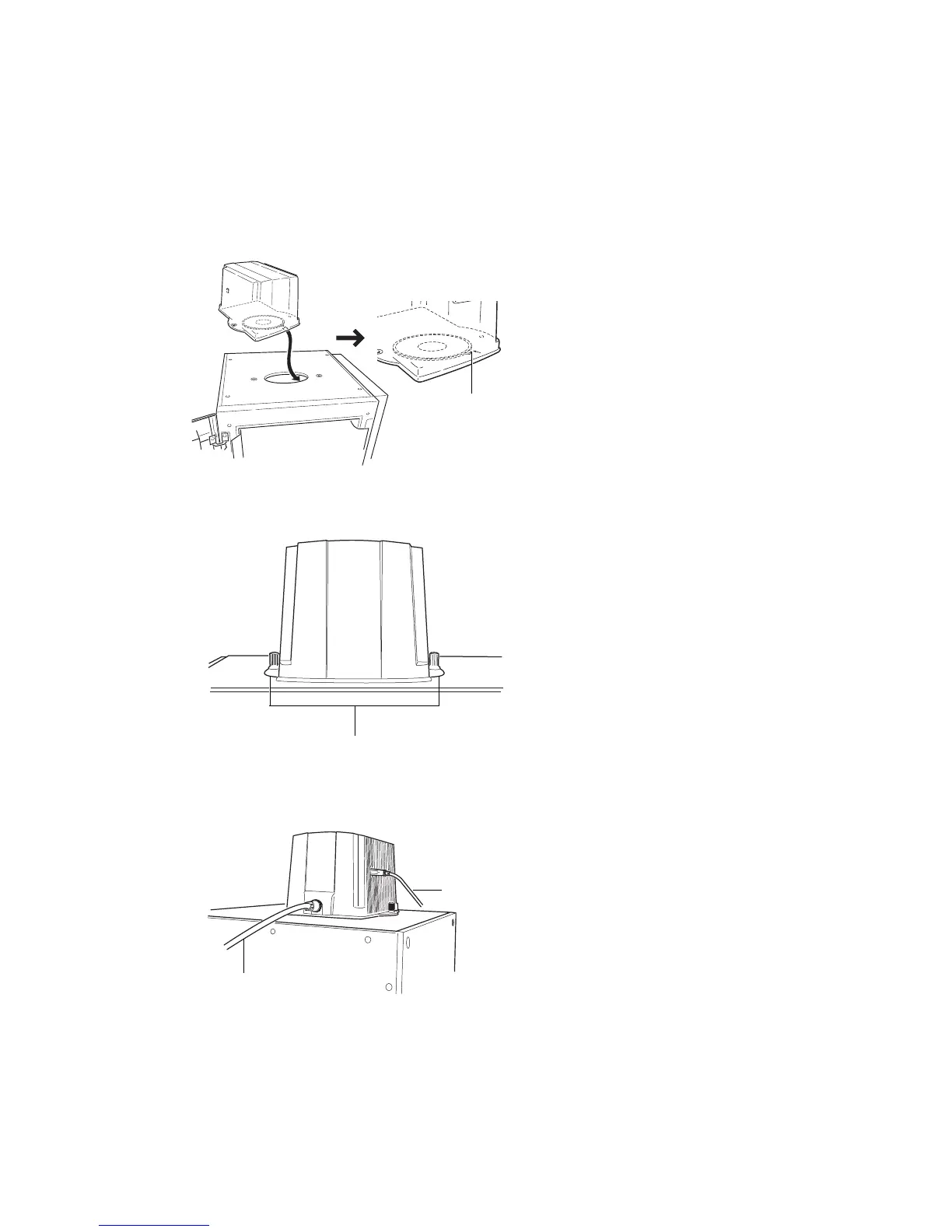

The camera head is attached to the IDX as follows:
1
Install the camera head while pushing the lens release button against this side’s wall surface of
the camera hole.
Lens release button
2
Attach the two screws fixing the camera head.
Two screws
3
Connect the camera cable and USB cable.
USB cable
Camera cable
4
Proceed to install the lens. See Section 3.5.3 Installing the lens, on page 35.
34 Getting Started with ImageQuant LAS 4000 28-9607-59 AB
3 Installation
3.5 Installation of hardware
3.5.1 Attaching the camera head
