GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 4 Functional Checks 4 - 33
4-3-5 B-Mode Checks
For information on the system’s different modes as well as expected results, refer to the appropriate
version of the LOGIQ E9 Basic User Manual, Chapter 5.
4-3-5-1 Introduction
The B-mode is the system’s default mode.
Depending on probe availability, choose the preset application shown below. The LOGIQ E9 probes are
ONLY approved for use for the applications listed in the table below.
For R4.x.x or later, IQC preset for Service is available.
Image Quality Check (IQC) is intended to facilitate Image Quality checks during Quality Assurance
Evaluations. Quality Assurance tests are used to determine whether a scanner is providing the same
level of performance year after year.
By using the same settings year after year, this ensures that the data collection is consistent,
independently of who performs the test.
This preset only includes fundamental settings for B-Mode.
Processing modes like SRI, Harmonics, etc., are turned off.
To do an Image Quality Check (IQC):
1.) Activate IQC via Utility -> Imaging Preset Manager -> Category (select the Category first).
2.) Click on the plus sign in front of IQC for Service.
3.) Assign IQC to a Touch Panel key by using the right arrow key.
4.) Map the IQC to the location you want it to appear on the Touch Panel.
5.) Select Model -> IQC.
4-3-5-2 Probe Indications for Use
See On-line Help or Chapter !7 of the Basic User Manual.

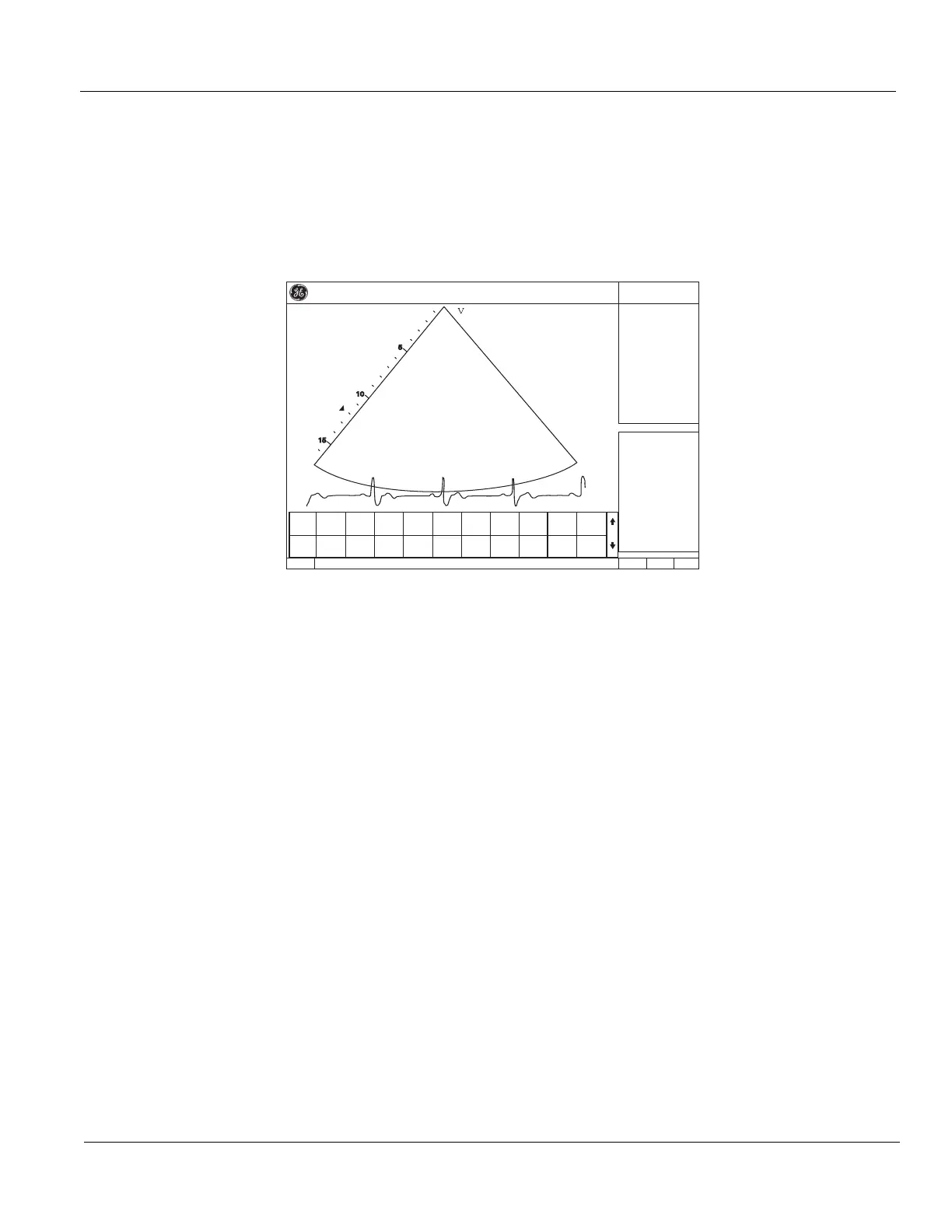

Figure 4-25 B-mode Screen Example
