IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

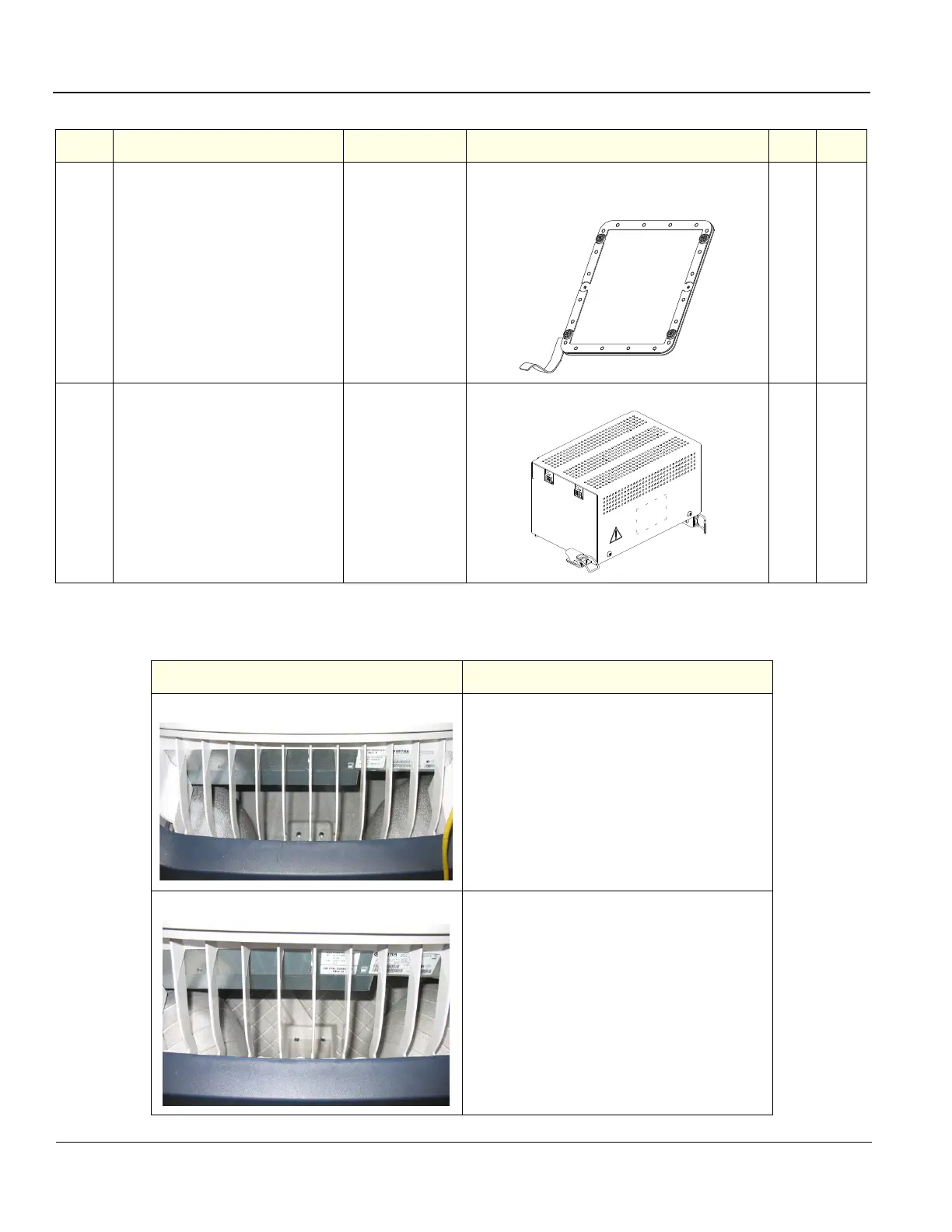

9 - 44 Section 9-10 - Main Console parts
15.
Air Filter Assembly (Bottom) 5391493
Refer to Table 9-18 "Identifying Base Casting for
proper Bottom Air Filter Assembly" on page 9-44
to identify the correct FRU.
1Y
16.
Shearwave Capacitor Bank Assembly 5486895 1Y
Table 9-18 Identifying Base Casting for proper Bottom Air Filter Assembly
Base Casting Identification
Smooth on inside surface
Base casting identified with smooth surface
requires 5316340-2 Filter Assembly.
Cross-hatching on inside surface
Base casting identified with cross-hatching
requires 5391493 Filter Assembly.
Table 9-17 Main Console parts 3 of 3 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
