GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

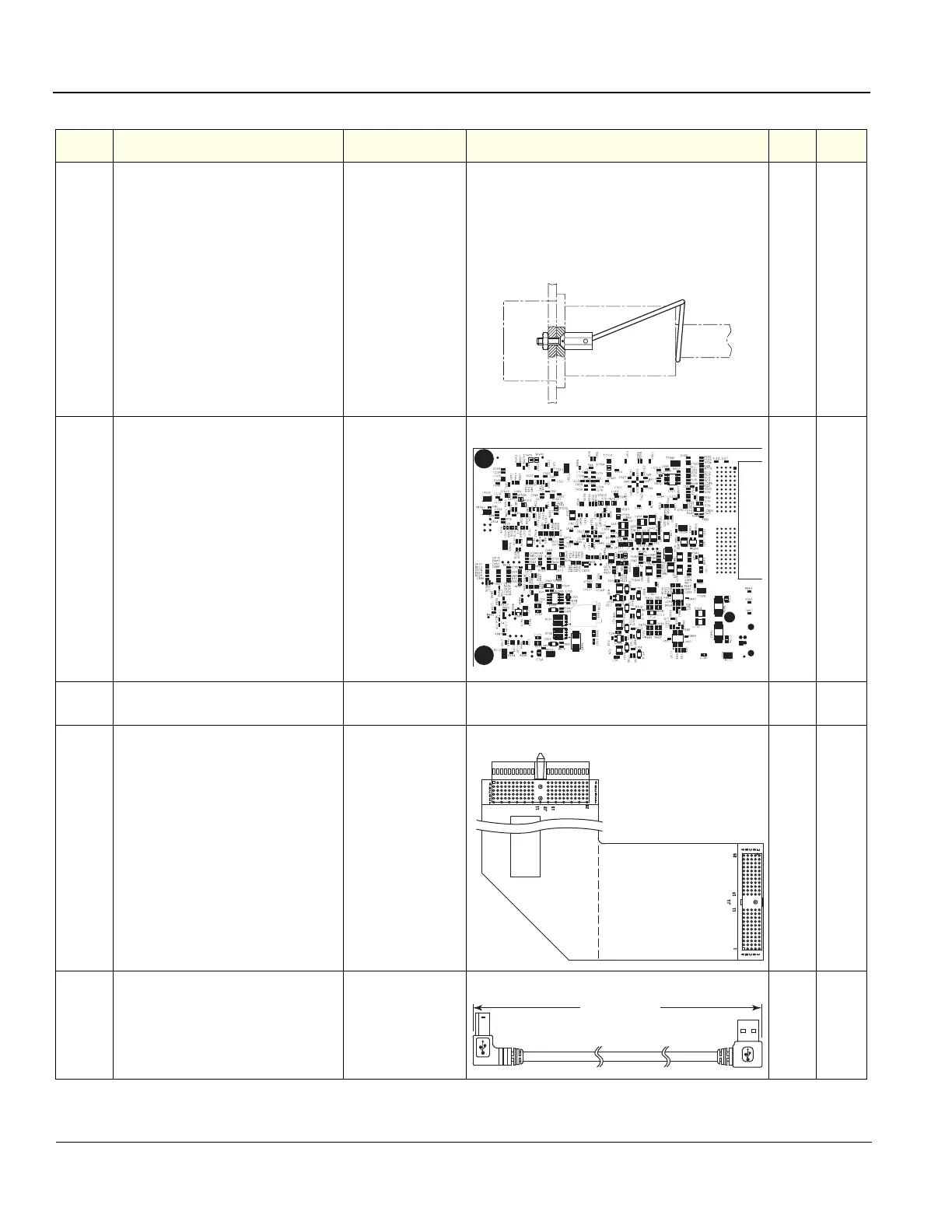

9 - 74 Section 9-14 - Main Power Supply parts
15.
AC Clamp 5370335
AC Clamp with two screws. Discard screws,
washers and nuts.
Not used with Argentina, Australia, Brazil,
India and South Africa Power Cords.
For these countries the proper Clamp is included in
the Power Cord FRU.
Used on Power Cords 5148381, -2, -3, -4, -5, -7, -8.
1Y
16.
4D Motor Control 5171810
Board
1Y
17. 4D Motor Control
RoHS compliant
5171810-2 1Y
18.
4D Flex Cable 5270841 1Y
19.
USB Cable 4D Motor Controller
(Cherokee/Mitra PS
5194492-4 1Y
Table 9-30 Power Supply parts 3 of 4 (Continued)
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
4D MOTORCONTROL BEP J28
5194492-4...........
(370 mm)

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
