GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
6 - 4 Section 6-2 - LCD Monitor adjustments
6-2-4 Advanced LCD Adjustments
Table 6-2 Advanced LCD Adjustments

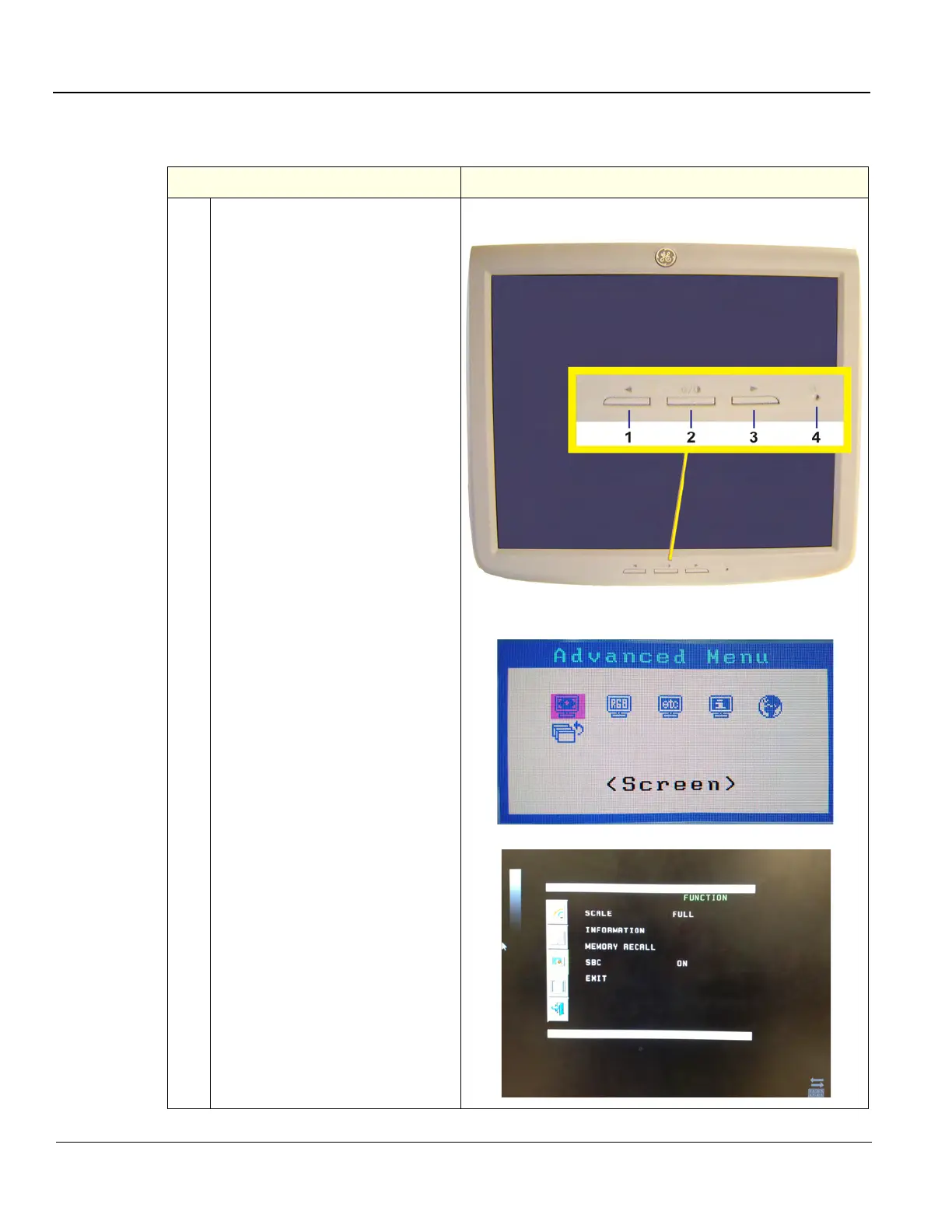

Steps Corresponding Graphic
1. NOTE: DO NOT adjust these
settings unless necessary!
To get access to the advanced
adjustments, press the mode button
for more than 10 seconds. This will
display the Advanced Menu on the
screen.
Menu on LCD original version:
• < Screen >
• < Color >
• < Others >
• < Information >
• < Language >
• < Exit >
1 Left
2 Mode
3 Right
4 Microphone
Menu on LCD V2
• < picture >
• < OSD >
• < Function >
• < Exit >
1 Left
2 Mode
3 Right
4 Microphone
On the LCD V2 Monitor menu, you
will find the sub-menus shown.
LCD Adjustment Buttons
LCD Controls Advanced Menu

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
