IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 9 Renewal Parts 9 - 39
9.
Park Lock Assembly - USA MFG 5393642
10.
XY Brake Motor Assembly - USA MFG 5393698
11. XY Brake Assembly GA200952 Replaces GA200535 2 Y
12. Z-Mechanism GA200039 Use 5958000 1 Y
13.
Z-Mechanism Assembly 5958000 1Y
14.
Drive Gear Assy GA200177
Use 5396884
1Y

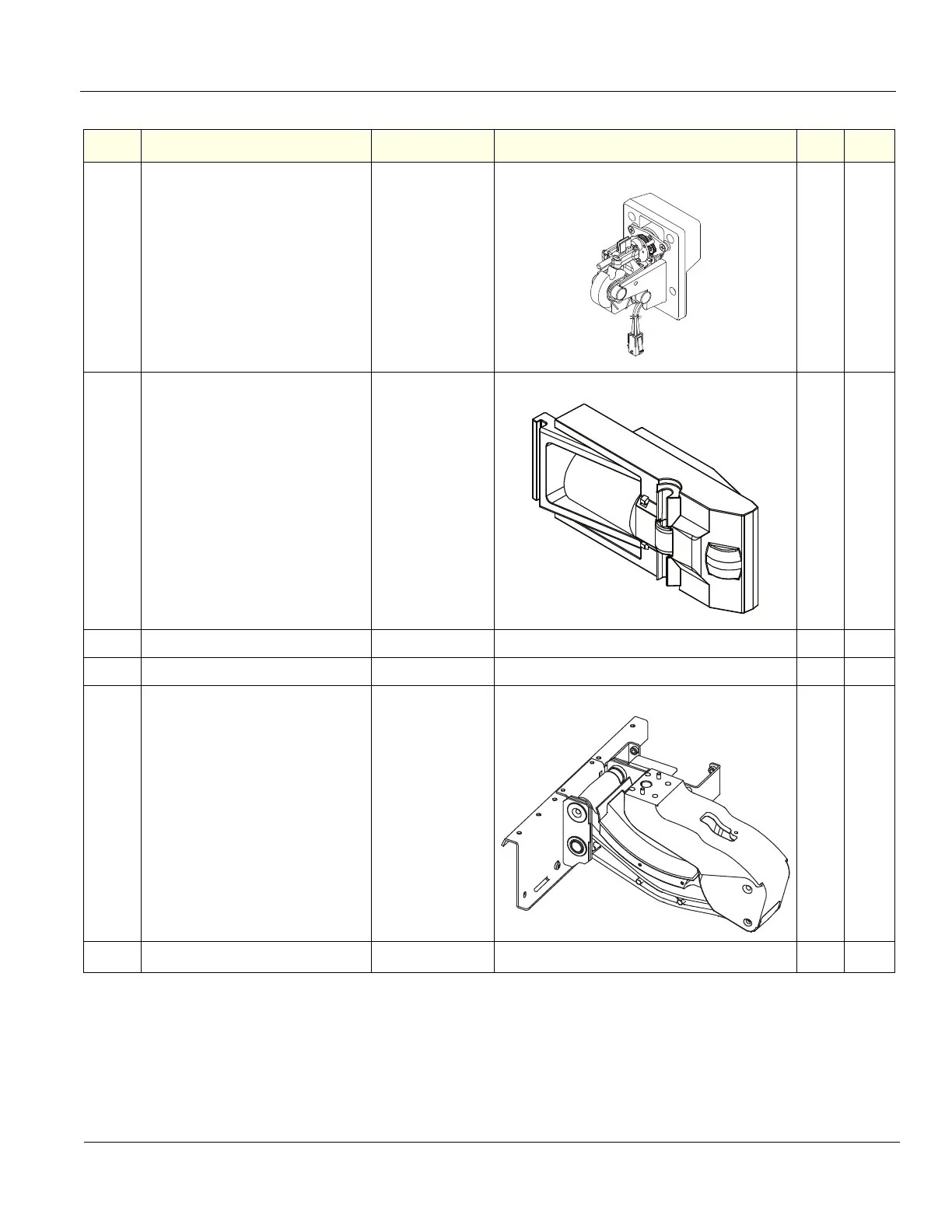

Table 9-15 XYZ Mechanism parts
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
