IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

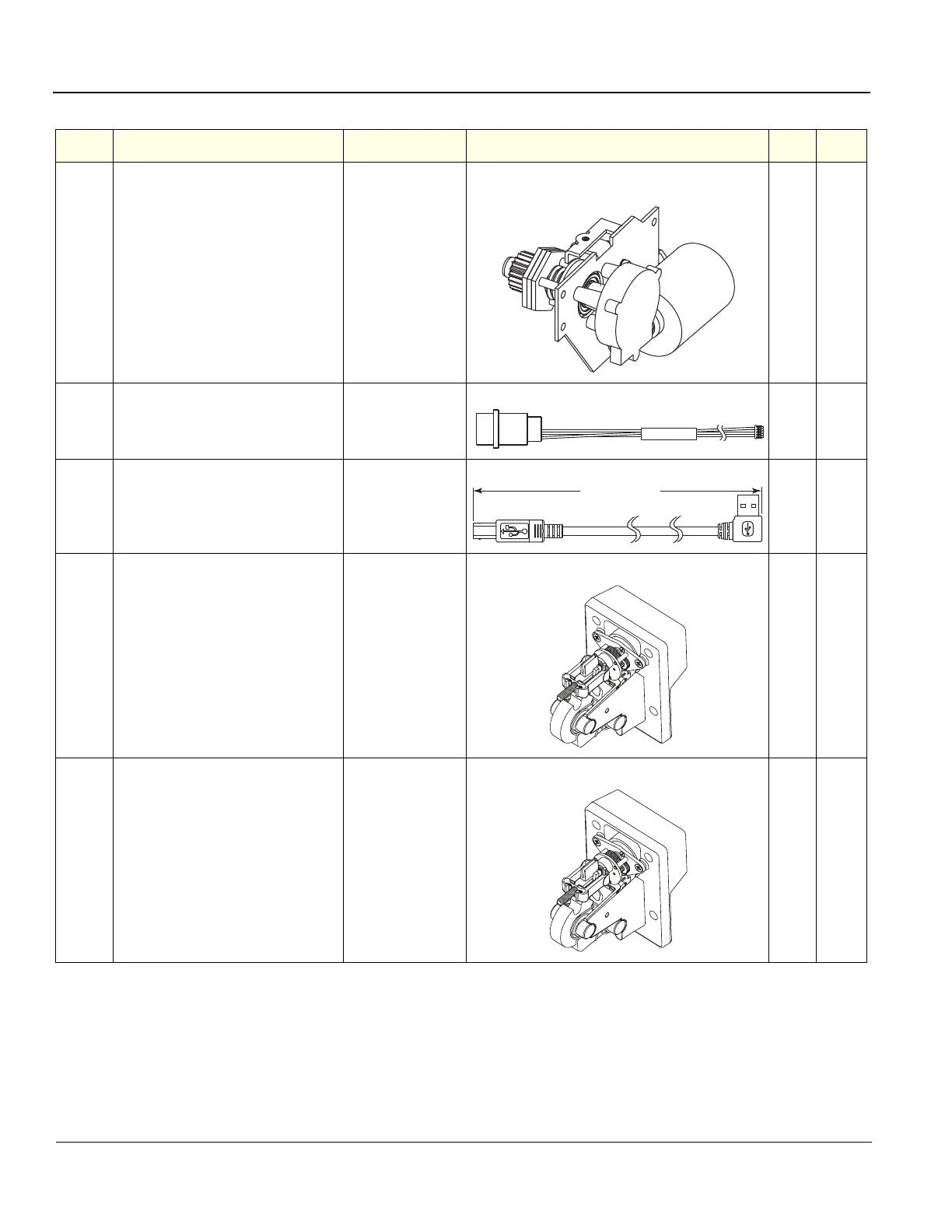

9 - 40 Section 9-9 - XYZ Mechanism parts

15.

Drive Gear Assy 5396884

See: Table 9-16 "XY Mech Brakes and Brake Motor

FRUs Compatibility Chart" on page 9-41.

16.

Cable, XYZ Switch Board 5198990 1Y

17.

Cable - USB, BEP to XYZ Motor

Controller

5194492-6

Compatible with R2.0.4 or later.

18.

Park Lock GA200161 1Y

19.

Park Lock

(USA Mfg.)

5393642

Substitute for GA200161.

Table 9-15 XYZ Mechanism parts

ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU

BEP J25

XYZ MOTOR CONTROL

5194492-6

(620 mm)
