IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
9 - 38 Section 9-9 - XYZ Mechanism parts
Section 9-9
XYZ Mechanism parts
For XY Mech Brakes and Brake Motor FRUs Compatibility, see:
Table 9-16 "XY Mech Brakes and Brake Motor FRUs Compatibility Chart" on page 9-41.

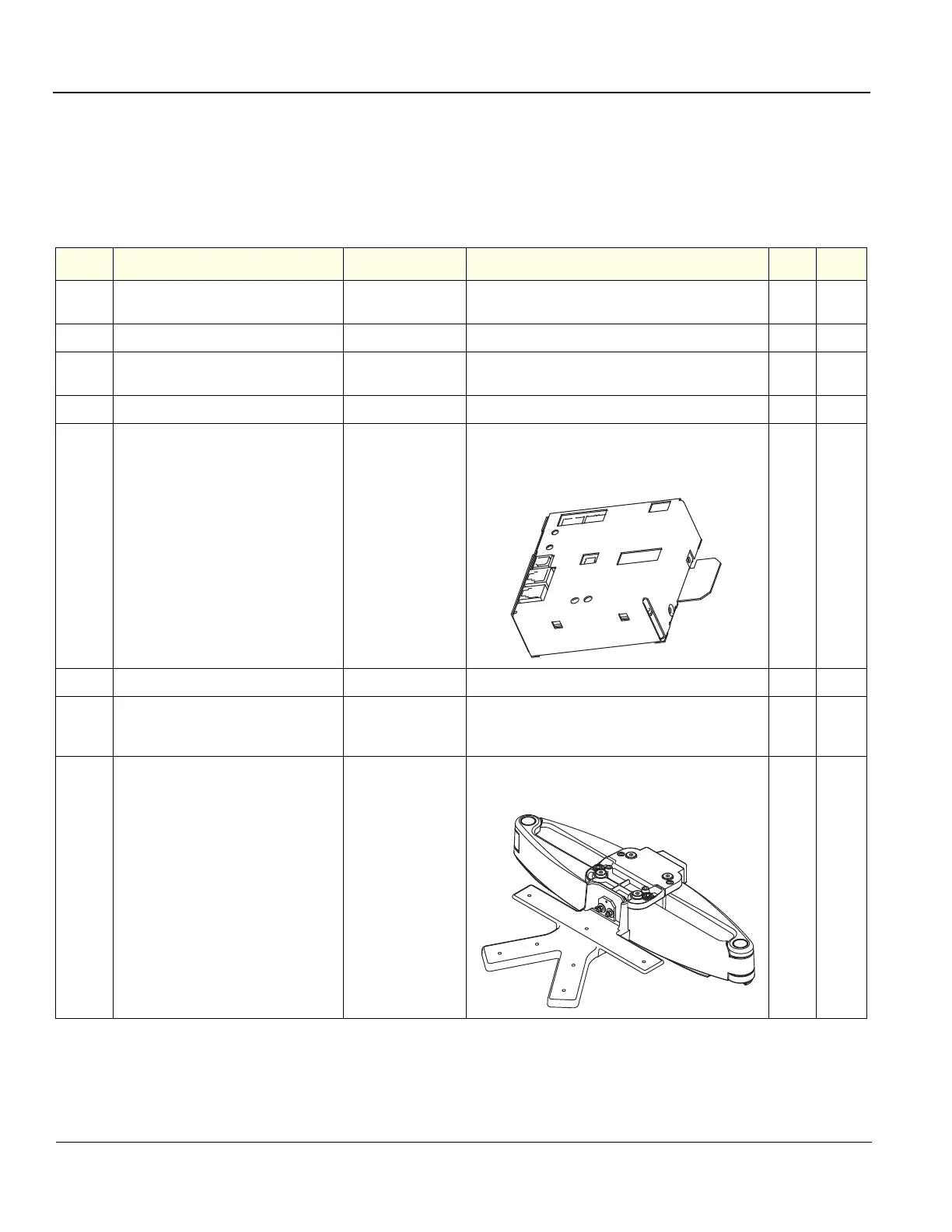

Table 9-15 XYZ Mechanism parts
ITEM PART NAME PART NUMBER DESCRIPTION QTY FRU
1.
XYZ Control ASM
GA200041
OBSOLETE
Replaced by GA200644 1 Y
2. XYZ Control ASM GA200644 Replaced by 5429346 1 Y
3.
XYZ Control ASM 5429346
See: Table 9-16 "XY Mech Brakes and Brake Motor
FRUs Compatibility Chart" on page 9-41.
1Y
4. LOGIQ E9 R4 XYZ Motor Controller 5440179 Replaced by 5440179-3 1 Y
5.
LOGIQ E9 R5 XYZ Motor Controller 5440179-3
Supports new LCD Monitor introduced with
R4.x consoles.
See: Table 9-16 "XY Mech Brakes and Brake Motor
FRUs Compatibility Chart" on page 9-41.
1Y
6. XY Mechanism GA200036 Replaced by GA200946 1 Y
7.
XY Mechanism GA200946
Replaces GA200036
See: Table 9-16 "XY Mech Brakes and Brake Motor
FRUs Compatibility Chart" on page 9-41.
1Y
8.
XY Mechanism - USA MFG 5954000
Replaces GA200036
See: Table 9-16 "XY Mech Brakes and Brake Motor
FRUs Compatibility Chart" on page 9-41.
