Chapter 7 Diagnostics/Troubleshooting 7 - 31
7-5-6-1 Launching the Op Panel Test (cont’d)
For R5 and later, the upper right corner indicates the type of Op Panel is detected (connected).
• 5207000 series (used in consoles 5205000-7 and earlier).
• Upper/Lower 5209000 / 5208000 series (used in consoles 5205000-8 and later) R5 or later.

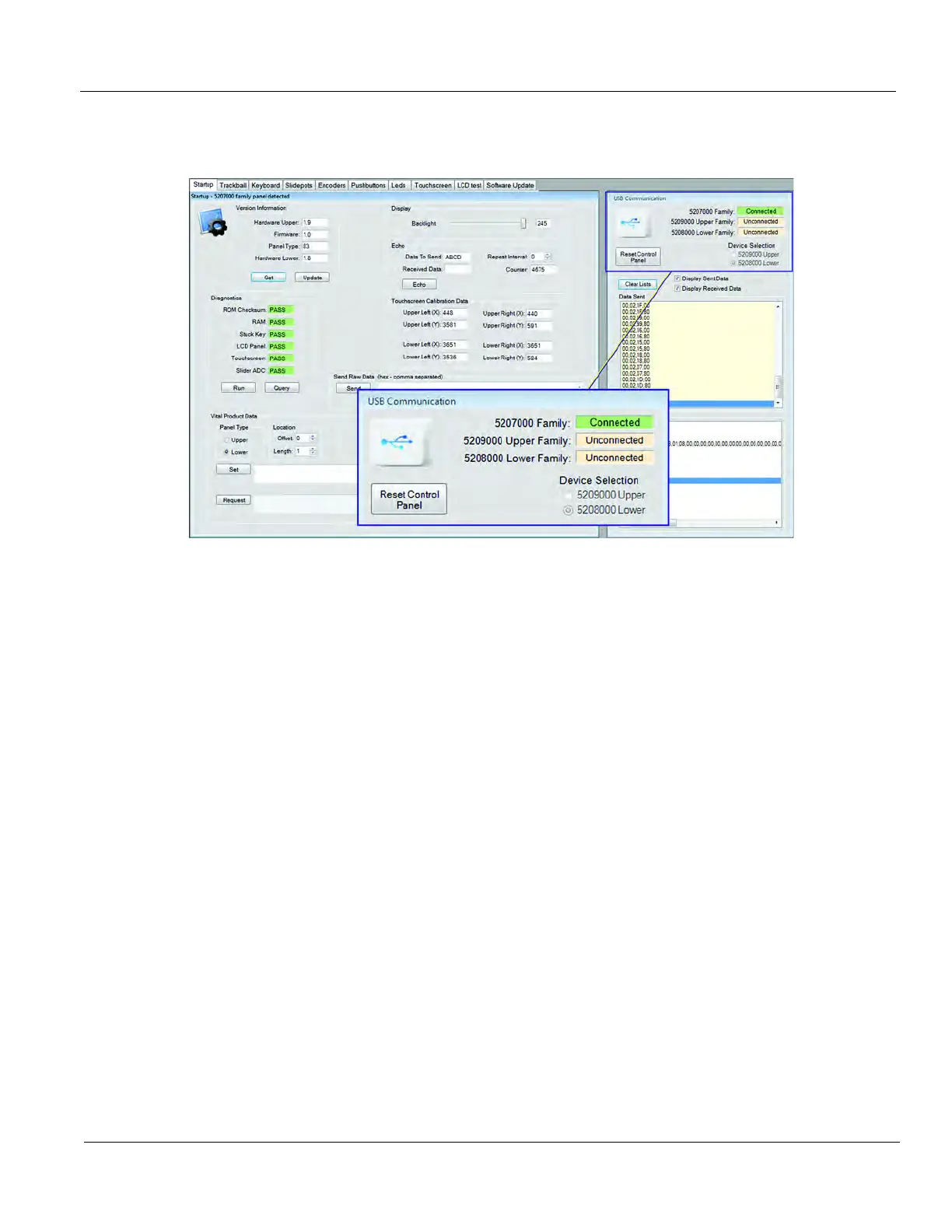

Figure 7-32 OP Panel Test Start Up - R5 and later
