GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 1 Introduction 1 - 13

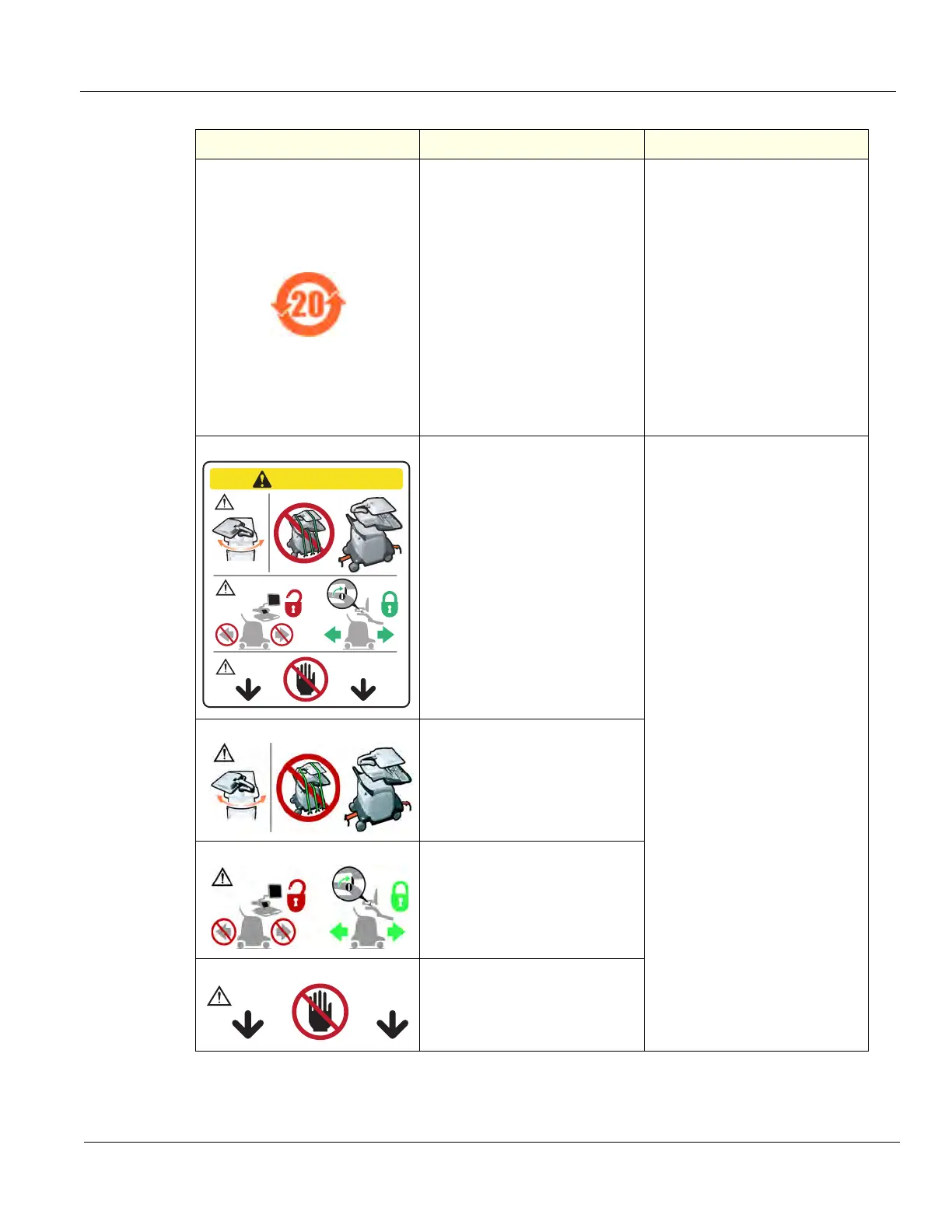

Indicates the presence of hazardous
substance(s) above the maximum
concentration value. Maximum
concentration values for electronic
information products, as set by the
People’s Republic of China Electronic
Industry Standard SJ/T11364-2006,
include the hazardous substances of
lead, mercury, hexavalent chromium,
cadmium, polybrominated biphenyl
(PBB), and polybrominated diphenyl
ether (PBDE). “20” indicates the number
of years during which the hazardous
substance(s) will not leak or mutate so
that the use of this product will not result
in any severe environmental pollution,
bodily injury, or damage to any assets.
China Rating Plate
LCD and Operator Panel information
and warnings.
Rear of the LCD monitor.
How to lower LCD prior to transport
How to lock Operator Panel prior to
transport
DO NOT place a finger, hand or any
object on the joint of the monitor or
monitor arm to avoid injury when moving
the monitor and monitor arm.
Table 1-6 Product icons (Continued) 6 of 7
LABEL/SYMBOL PURPOSE/MEANING LOCATION
CAUTION

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
