8-5-6 Foot Rest Bumper replacement
8-5-6-1 Foot Rest Bumper removal
NOTE: In Table 8-22, the Side Cover was removed to be able to view the Side Latch. You do not need
to remove the Side Cover to perform this procedure.
The Foot Rest Bumper is fixed with snap locks.
Table 8-20 Manpower / Time and Tools
Manpower /
Time
Tools
One person /
15 minutes
No additional tools required.
Table 8-21 Preparations and Preparation Link
Preparations - you must perform the following steps
1. Power down the system.
2. Disconnect the mains power cable from the wall outlet and all Probes and External I/O Cabling.
Preparation Link (if you need more information):
4-2-3 "Power shut down" on page 4-7.

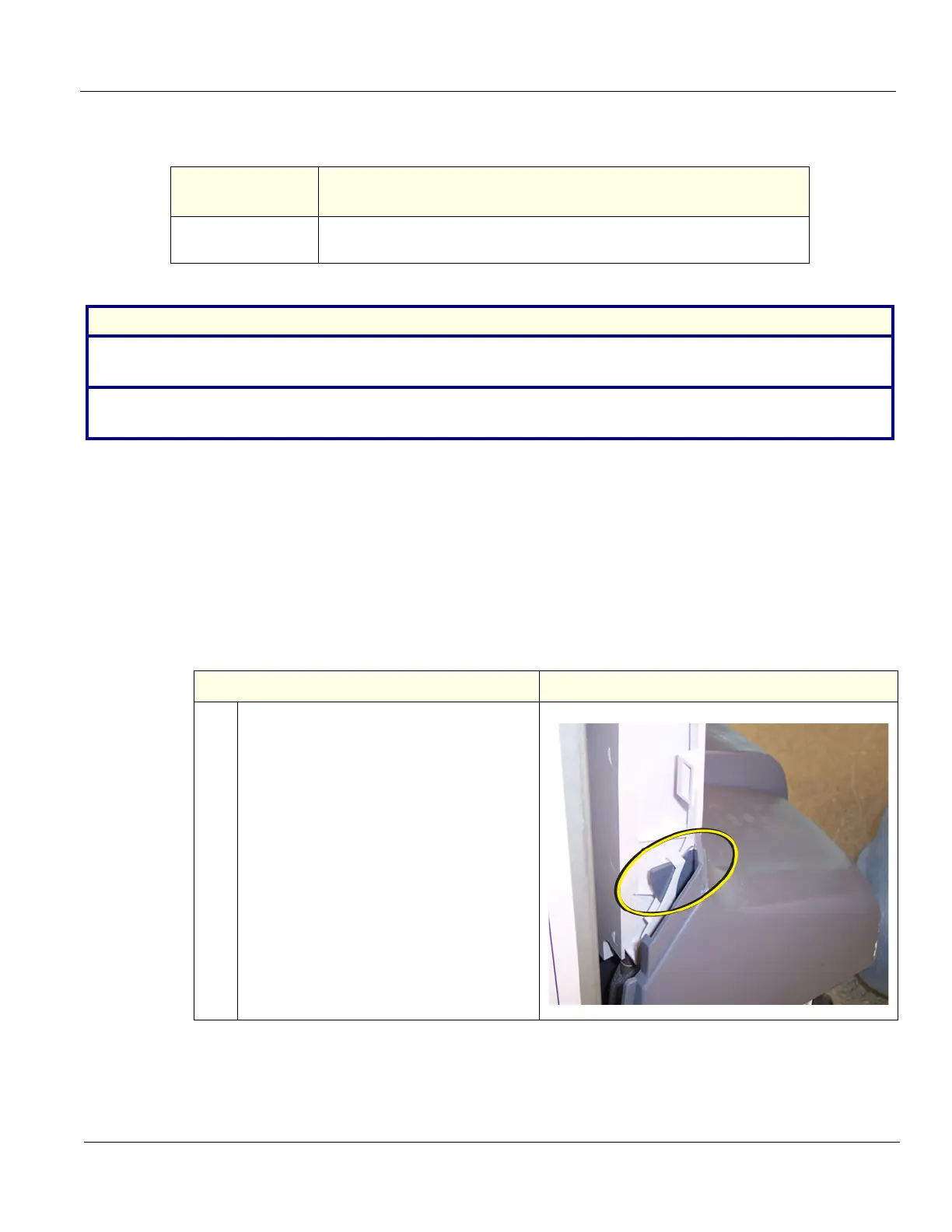

Table 8-22 Side Latch for Foot Rest Bumper
Steps
Corresponding Graphic
1.. Pull the Foot Rest Bumper upwards and
over the pedals to release the snap locks,
while freeing the side latches.
You may need to push down the pedals to
be able to remove the Foot Rest Bumper.
