IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 64 Section 8-5 - Replacing Covers and Bumpers
8-5-14 Rear Bumper replacement
8-5-14-1 Manpower
One person, 15 minutes.
8-5-14-2 Tools
For tools needed, refer to: 8-2-5 "Tools needed for servicing the LOGIQ E9" on page 8-5.
8-5-14-3 Preparations
When preparing for the replacement, you must perform the following steps:
1.) Power down the system
2.) Disconnect the mains power cable from the wall outlet.
3.) Disconnect all Probes and External I/O Cabling.
4.) Remove Side Covers.
5.) Remove Rear Cover.
Follow these links if you need more information:
• 4-2-3 "Power shut down" on page 4-7.
• 8-5-2 "Side Covers replacement" on page 8-30.
• 8-5-11 "Rear Cover replacement" on page 8-54.
8-5-14-4 Rear Bumper removal
1.) Remove the two screws securing the Rear Bumper.
2.) Remove Bumper.
8-5-14-5 Rear Bumper installation
1.) Place the Rear Bumper into position
2.) Install the two screws to secure the Rear Bumper.

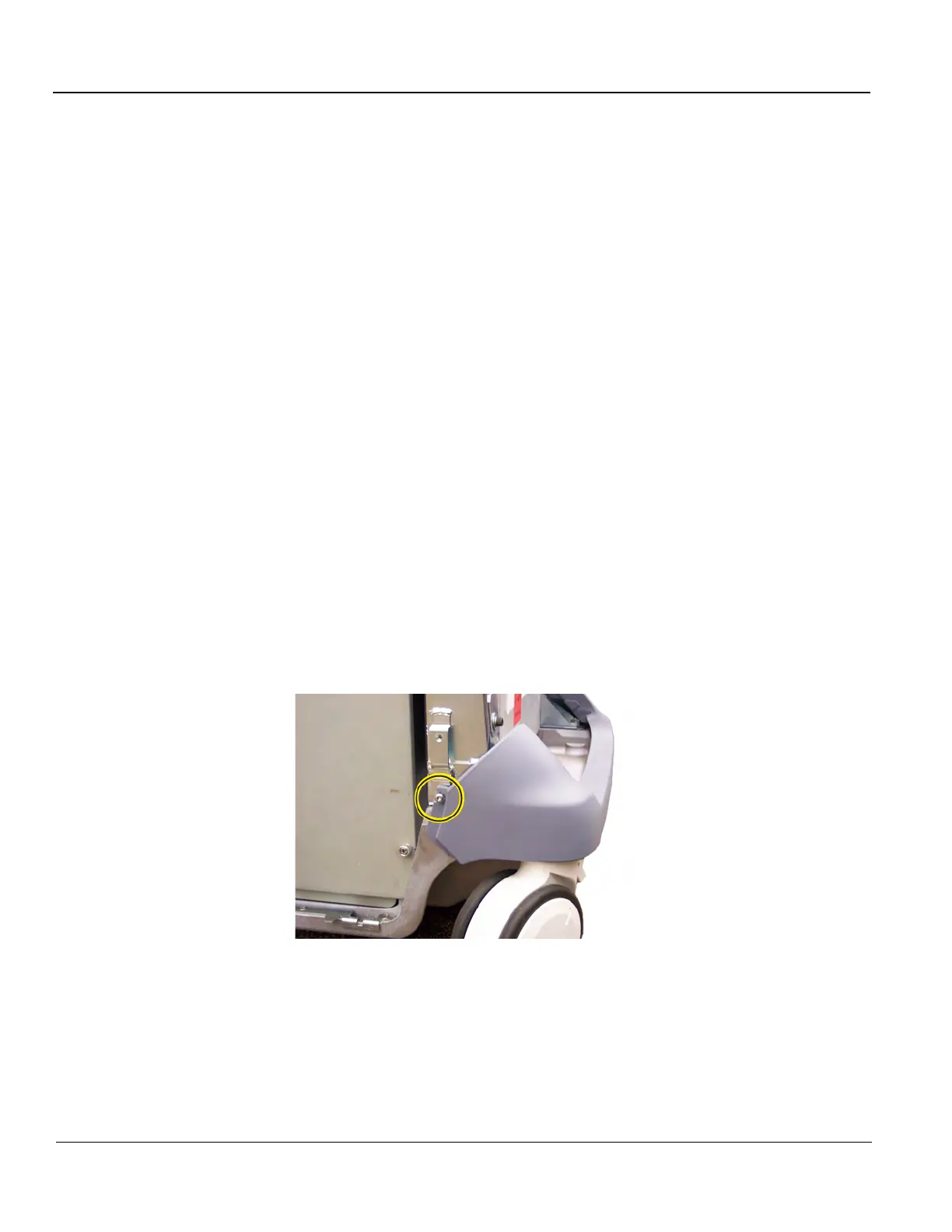

Figure 8-27 Left screw placement for Rear Bumper

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
