IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL

8 - 74 Section 8-5 - Replacing Covers and Bumpers

8-5-18-4 Column Cover Assembly removal (cont’d)

3.) Raise the console to full height.

4.) Remove the remaining screw on the right side that secures the Column Cover Assembly.

5.) Remove the two screws on the left side that secure the Column Cover Assembly.

6.) Remove Column Cover Assembly.

NOTE: The Main Cable Cover will also be released.

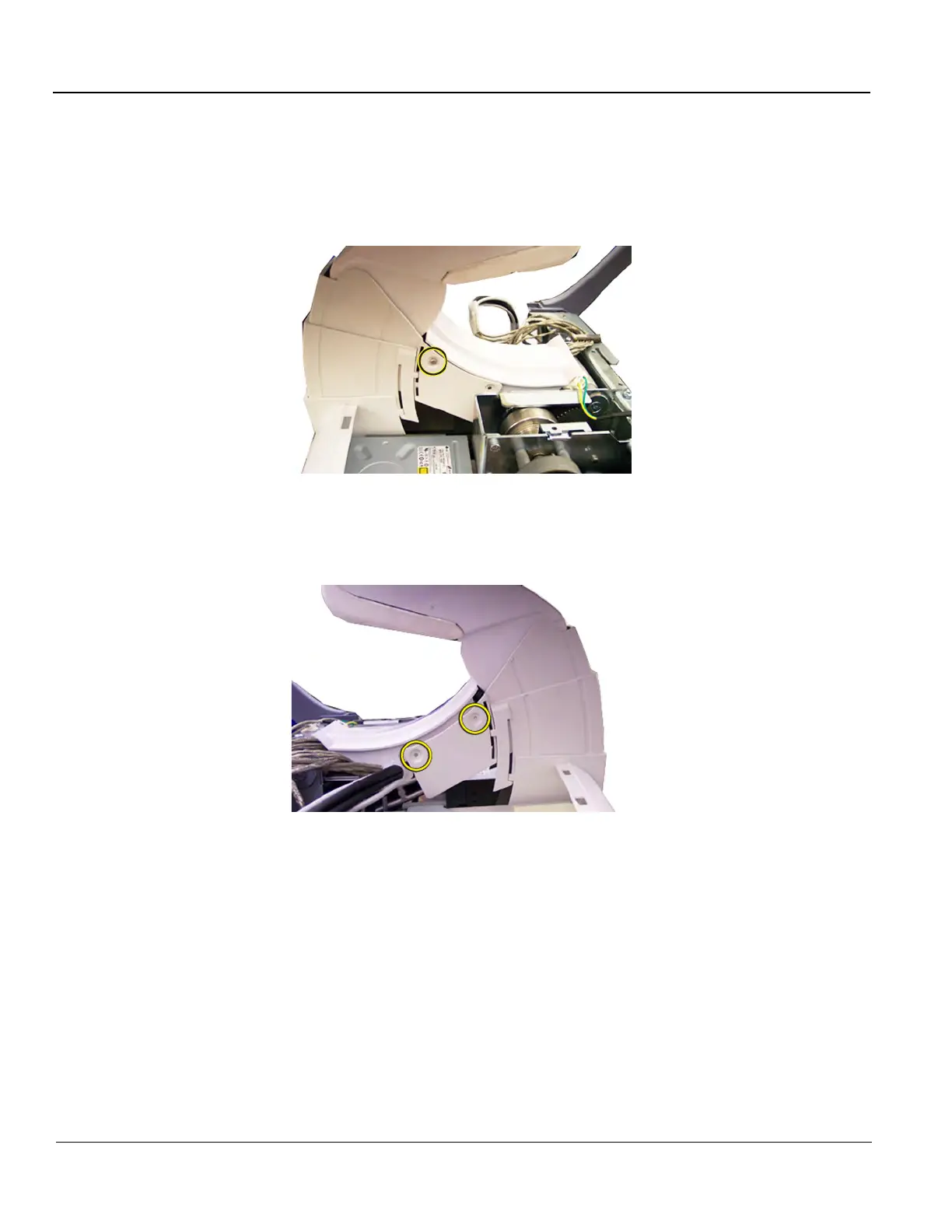

Figure 8-30 With console raised, upper right side screw placement

Figure 8-31 With console raised, left side screw placement
