GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 81
8-5-20-4 Covers under XY / Frogleg motors removal
1.) At the rear of the system, release the console’s frogleg mechanism by inserting a screwdriver into
the release point and pressing until release. Pull the console out to its extended position to gain
access to the screws in the next step.
2.) Under the XY / Frogleg mechanism, identify the four separate covers. There are two types of
covers, one type has two screws (1) and the other type has one screw (2).
3.) Remove the screws from the cover(s) to replace.

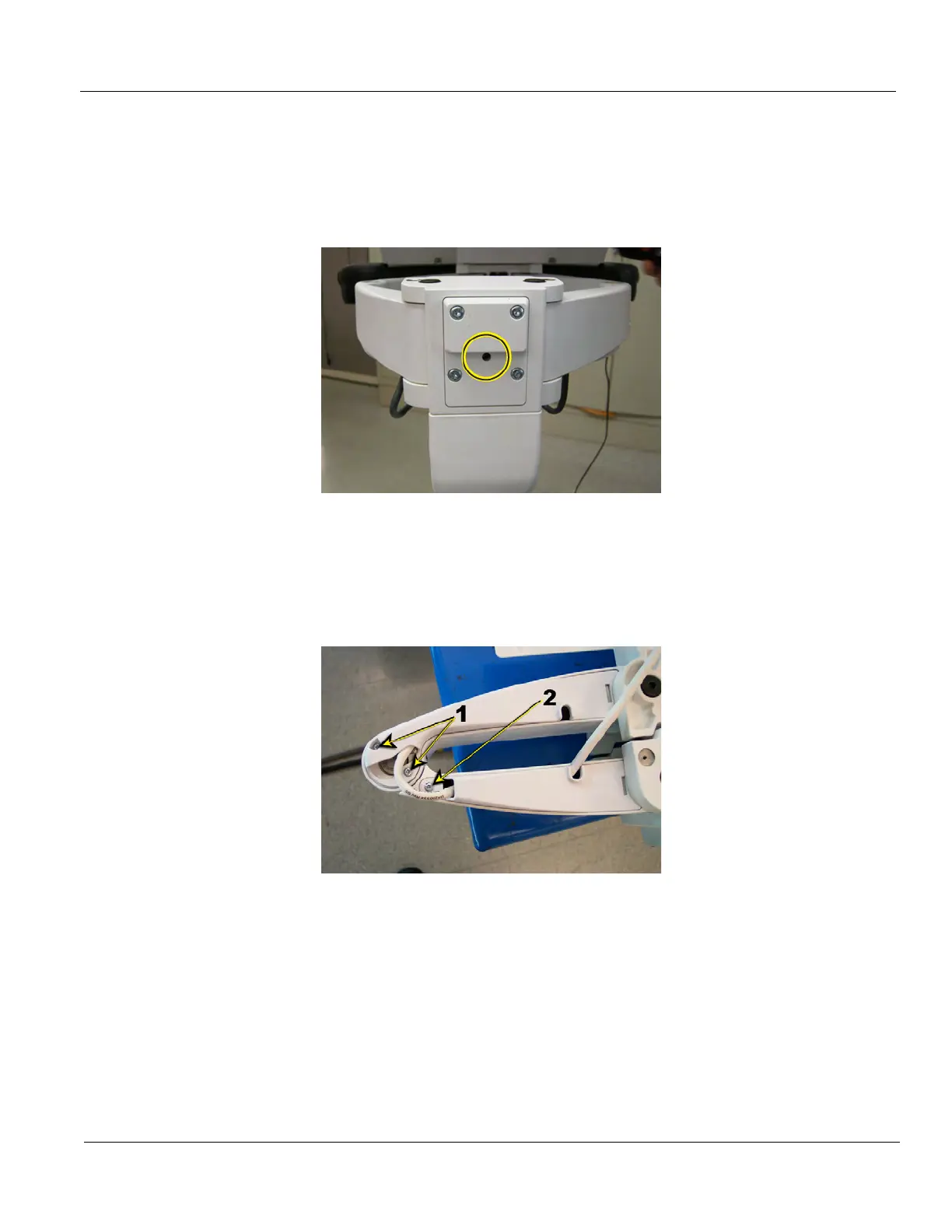

Figure 8-35 XY / Frogleg mechanism release
Figure 8-36 XY / Frogleg mechanism covers, right side frog leg, from underneath

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
