8 - 120 Section 8-6 - Replacing Top Console Parts
1.

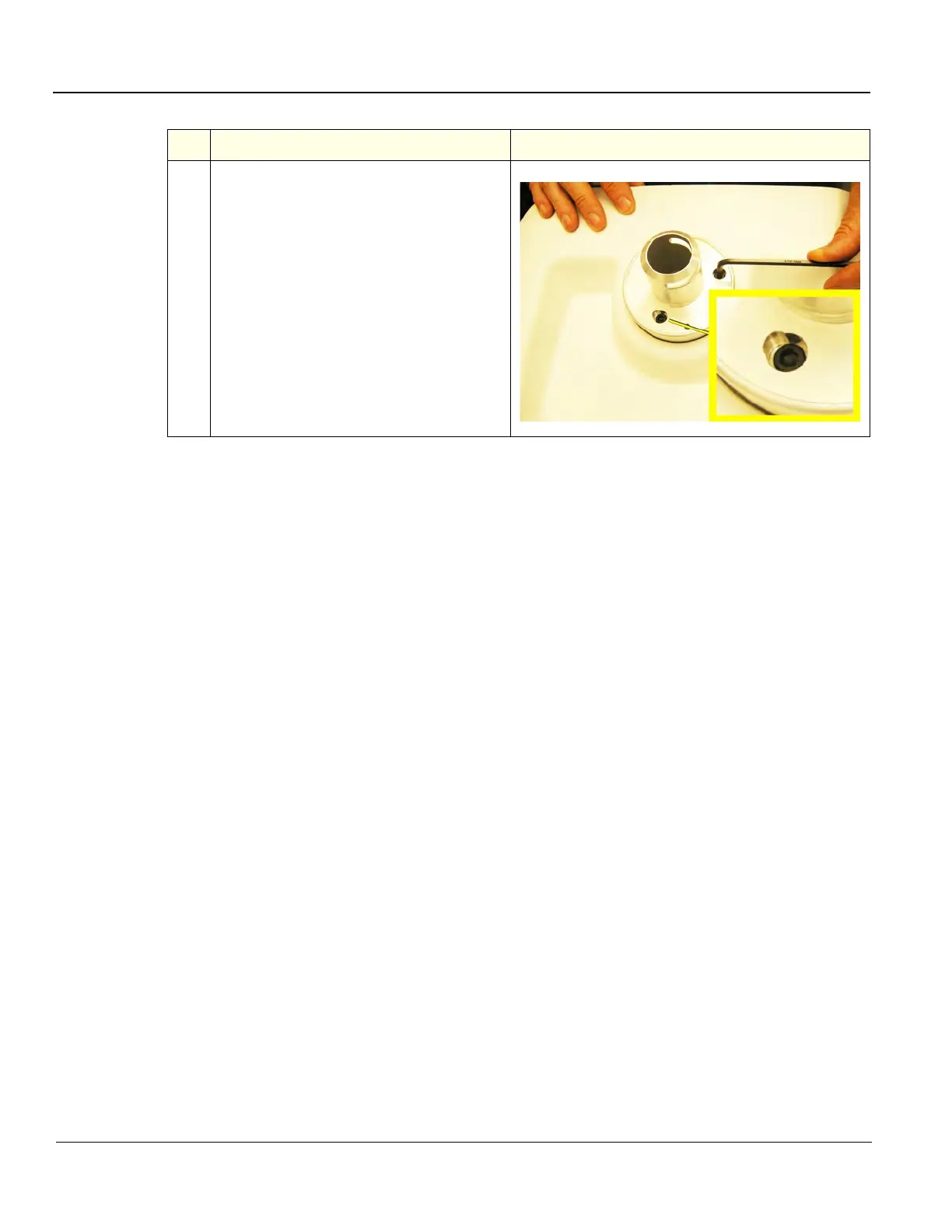

Remove the two M5 x 50 hex key screws
using a 4 mm Hex Key.
Remove adapter.
Table 8-74 V2 LCD Arm Assembly Adapter removal
Steps Corresponding Graphic
