IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 141
8-6-9-1 Alphanumeric Keyboard assembly removal
Table 8-92 Alphanumeric (A/N) Keyboard removal
Steps Corresponding Graphic

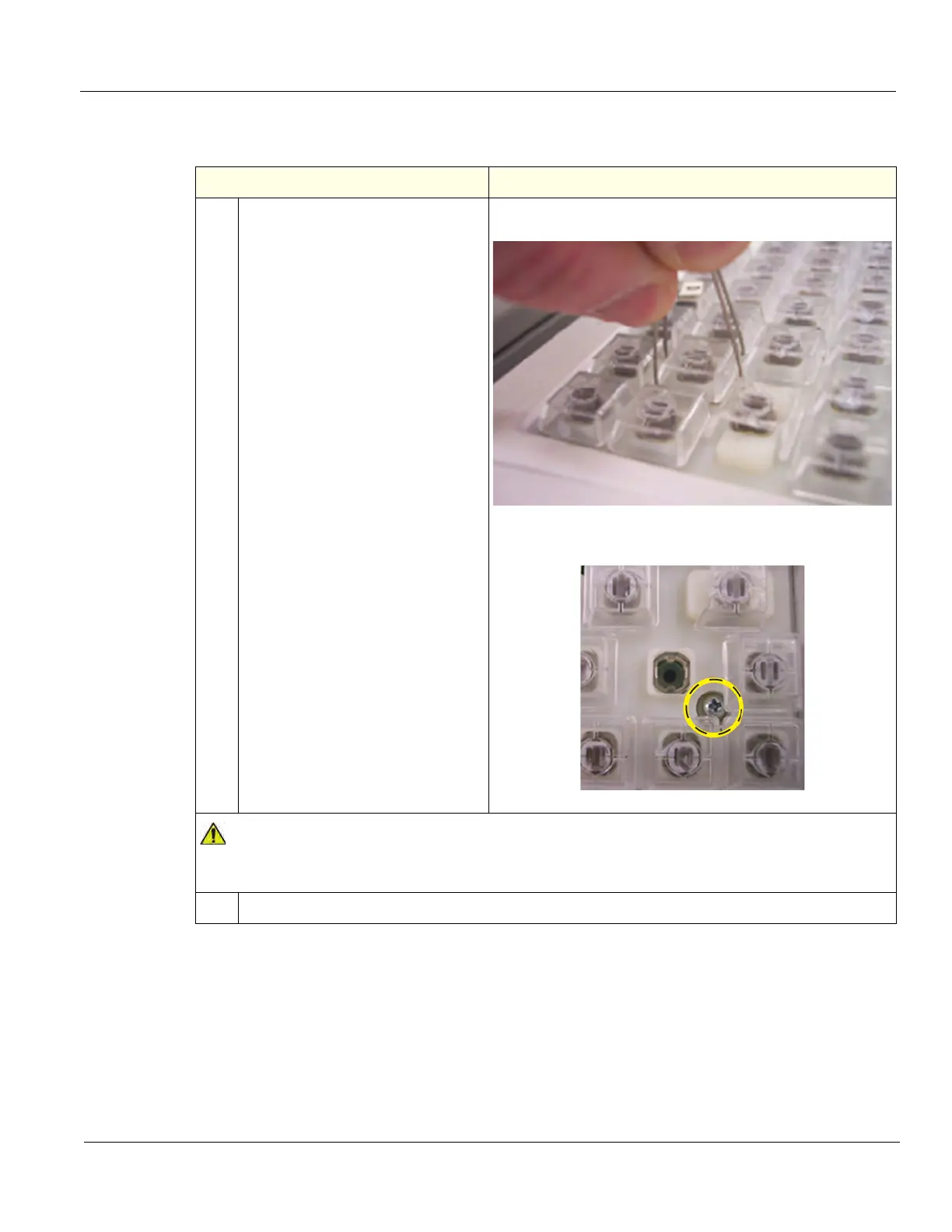

1. The Alphanumeric Keyboard
Assembly is installed in the Lower
Operator Panel.
Remove the two shift keys (cap lock
arrows), using the key removal tool
[the “MacGyver” keycap removal
tool will work as well, e.g., a
paperclip] to expose the screws that
secure the keyboard to the Lower
Operator Panel.
NOTE: If the keycap plunger does
not come off with the key, you have
to reinstall it.
Keycap Tool
Keyboard Mounting Screw
NOTICE
To avoid damaging the keytops, use a small Phillips screwdriver to remove the keyboard
screws.
2. Remove the Alphanumeric Keyboard screws (M3 x 8).
