8-6-9-2 Alphanumeric Keyboard assembly installation
Table 8-93 Alphanumeric (A/N) Keyboard installation
Steps Corresponding Graphic

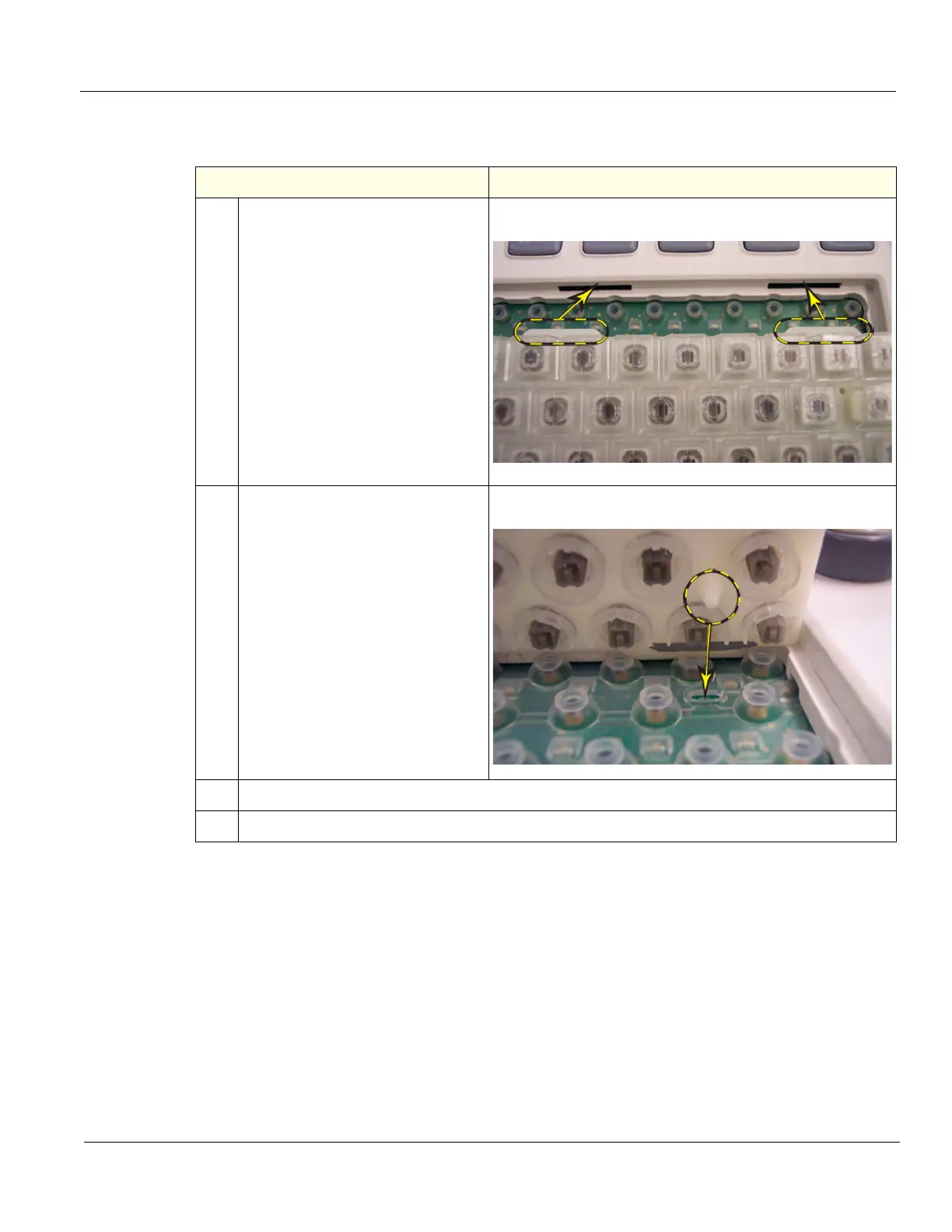

1. Guide the Alphanumeric Keyboard
assembly tabs into the slots.
Lower the Alphanumeric Keyboard,
making sure the plastic “fingers”
seat into the board.
Alphanumeric Keyboard Assembly tabs
2. Lower the Alphanumeric Keyboard,
making sure the plastic “fingers”
seat into the board.
Alphanumeric Keyboard plastic “fingers”
3. Install the two screws.
4. Install the keytops.
