IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 190 Section 8-7 - Main Console parts replacement

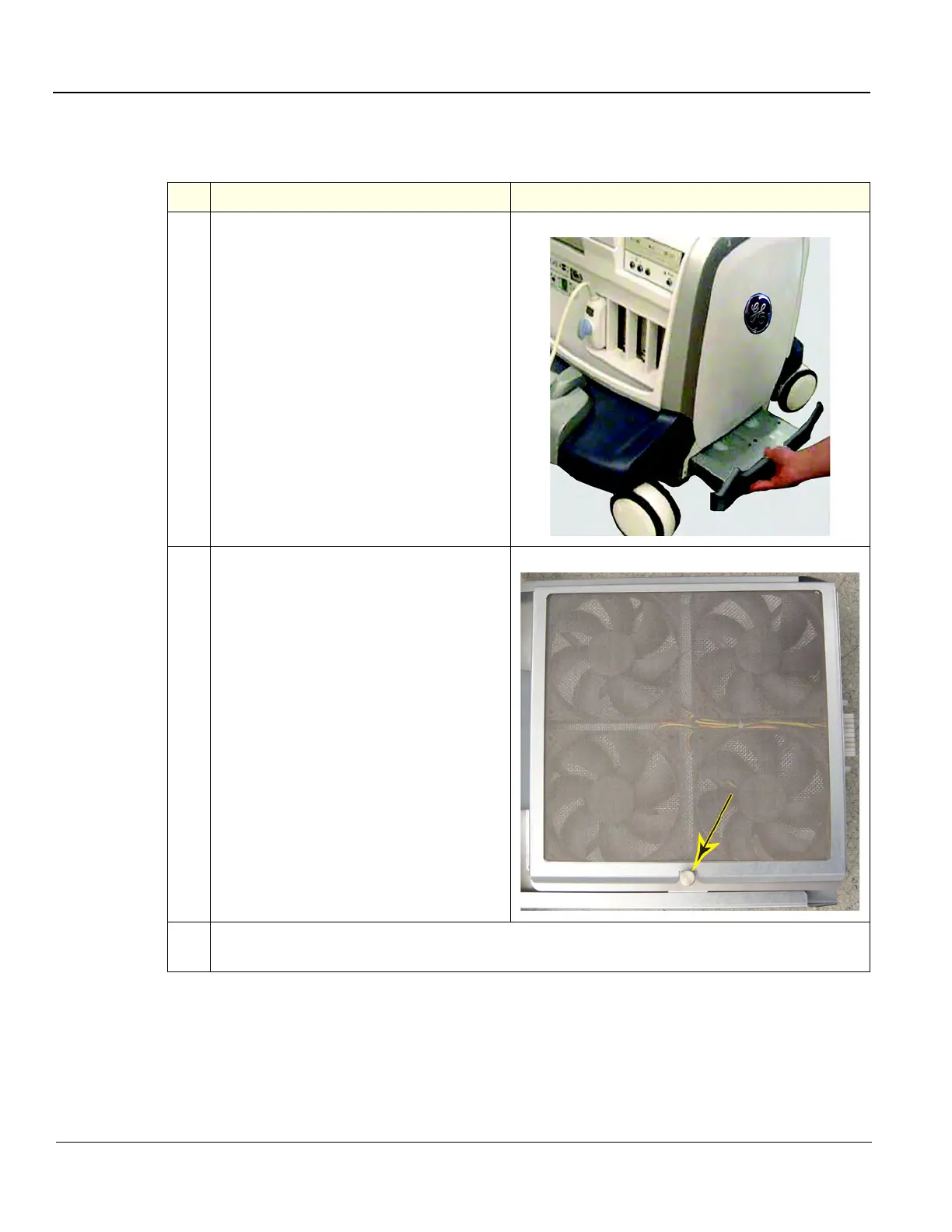

8-7-4-3 Removable Fan Tray Assembly replacement / installation - R5 and later
Table 8-116 Removable Fan Tray Assembly replacement / installation
Steps Corresponding Graphic
1.
Slide Fan Tray out of the LOGIQ E9.
2.
Flip the Fan Tray over and pull out the Filter
latch and slide the Filter out.
3.
Reinstall the Filter into the Fan Tray Assembly and install the Tray into the Card Cage. Make sure the Fan
Tray seats completely into the Card Cage.
