GE LOGIQ E9 Service Manual

GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 196 Section 8-8 - Casters and Brakes replacement
8-8-3-4 Front Casters removal
1.) Turn Front Casters so they are pointing forwards.
2.) Activate Direction Lock.
3.) Put the Bevel Edged Board on the floor.
4.) Pull the system backwards up the board incline. This will lift the Rear Wheel on the opposite side of
the System from the floor.
5.) Turn the Rear Caster that stands on the Bevel Edged Board in the direction as shown in
Figure 8-65.
6.) The system is now nearly balanced between one Front and one Rear Caster.
7.) Make the LOGIQ E9 rest on both Rear Casters and lift the Front Caster.
8.) Put the Wooden Wedge under the chassis. This will stabilize the LOGIQ E9 with one Front Caster
free from the floor.
9.) Unscrew and remove the fixing screws (T-45) for the Front Caster that is free from the floor. Save
the screw for later use.
10.)Remove the Caster.
11.)Disconnect the lock by unscrewing the hex nut that holds it to the rod.
WARNINGWARNING
Prior to elevating scanner, verify that the floating Operator Panel is locked in its lowest,
parking position.
WARNINGWARNING
Use extreme caution as long as LOGIQ E9 is un-stable, not resting on all four Casters.

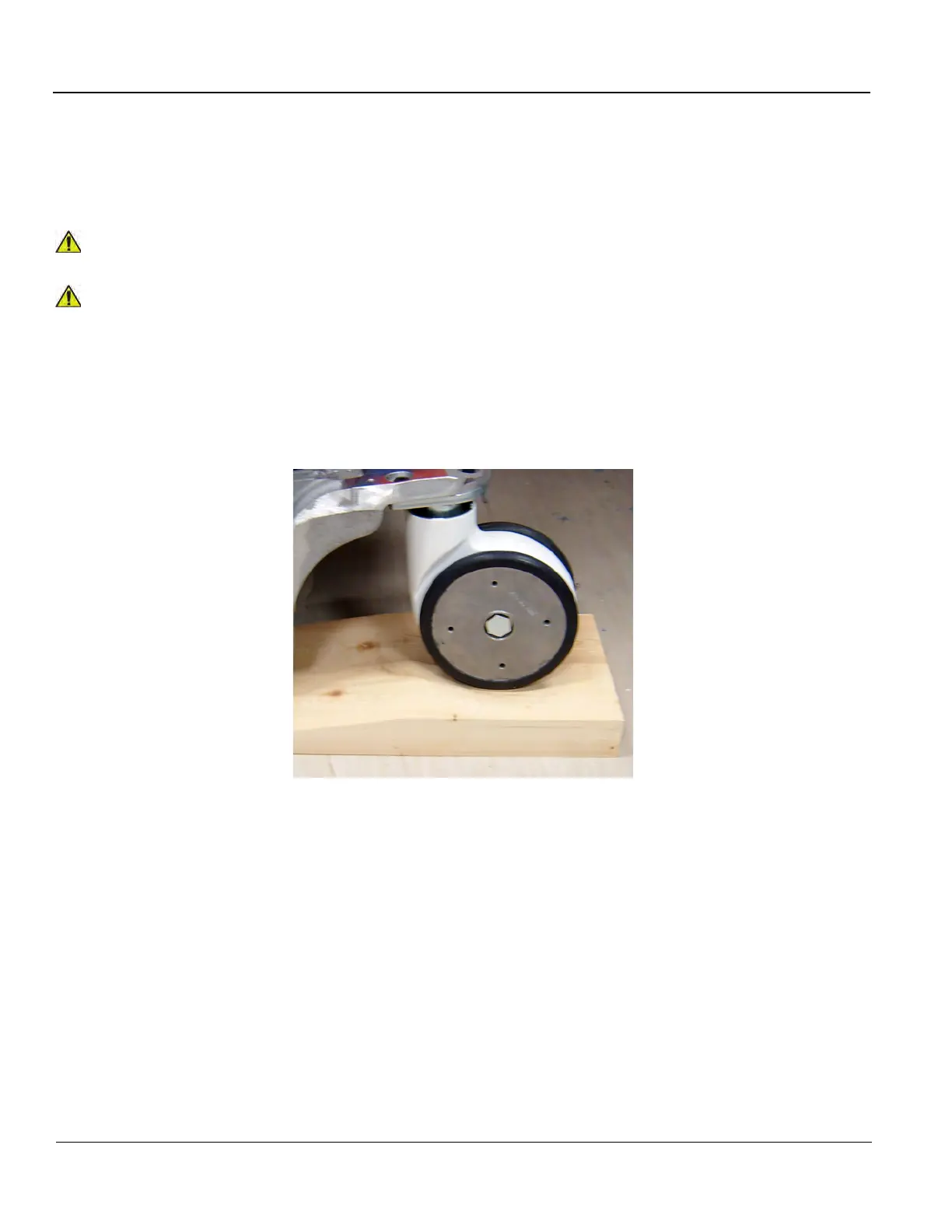

Figure 8-66 Pull system backwards up the board incline

GE LOGIQ E9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Transducer Ports	4 active ports
Connectivity	DICOM, USB, Ethernet
Applications	Abdominal, Vascular, Musculoskeletal, Small Parts, Urology, Pediatric, Cardiac, Obstetrics/Gynecology
Transducers	Linear, Convex, Phased Array, Volume
Doppler Modes	Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Elastography	Yes
Advanced Features	B-Flow, Volume Navigation
Portability	Cart-based system
Display	19-inch high-resolution LCD monitor
