IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
Chapter 8 Replacement procedures 8 - 251
8-10-3-4 Main Power Supply Fan Assembly removal
Table 8-161 Main Power Supply Fan Assembly Removal
Step Corresponding Graphic
1. Remove the Main Power Supply.
Remove the five screws (Torx T10 screw
head) securing the Fan Assembly to the
PS. DO NOT discard the screws.
Slide the Fan Assembly away from the
PS.

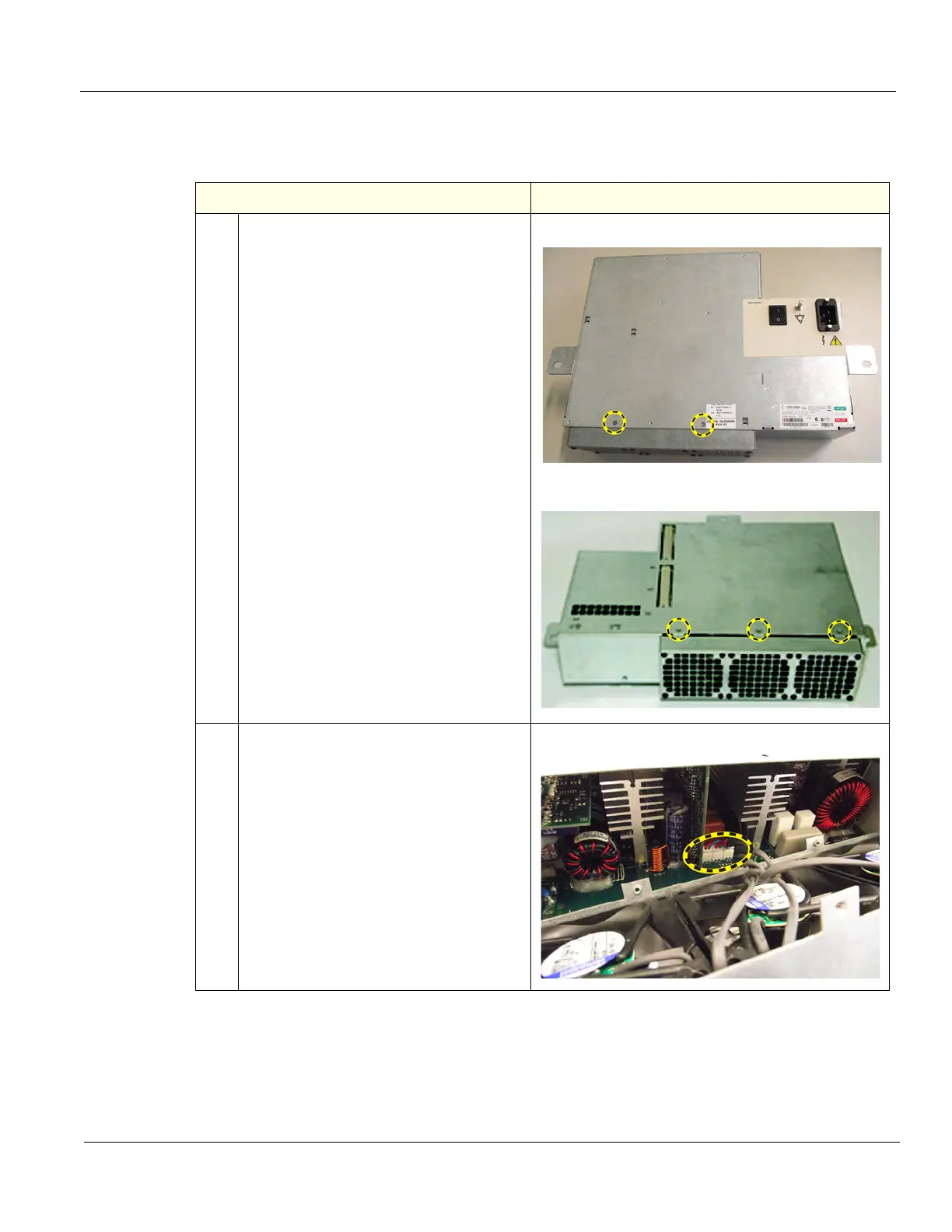

Rear view of the PS
Inside view of the PS
1.
Disconnect the Fan Assembly connectors
(three white plastic connectors) from the
PS to remove the assembly.
