8-10-4-4 4D Motor Controller removal
8-10-4-4-1 Identifying the Main Power Supply (PS)

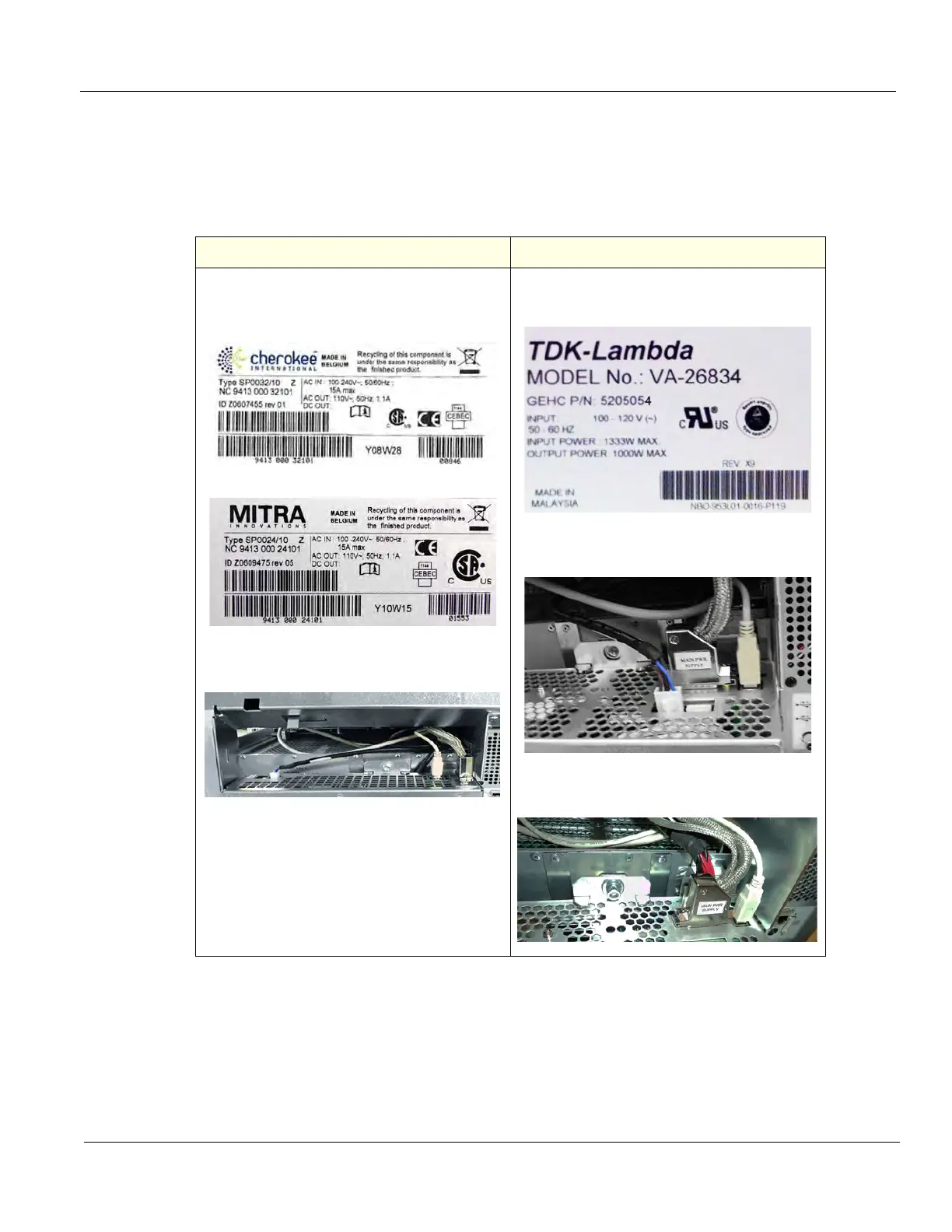

Table 8-164 Identifying the Main PS and connectors
Cherokee/Mitra PS Lambda PS
PS Label
(rear, bottom of PS - earlier and current production
labels shown)
PS connectors
(top of PS)
PS Label
(rear, bottom of PS)
PS connectors without Shear Wave option
(R4 and earlier, top of PS)
PS connectors with Shear Wave option
(R5 and later)
