GE
D
IRECTION 5535208-100, REV. 2 LOGIQ E9 SERVICE MANUAL
8 - 260 Section 8-10 - Main Power Supply parts replacement
2.

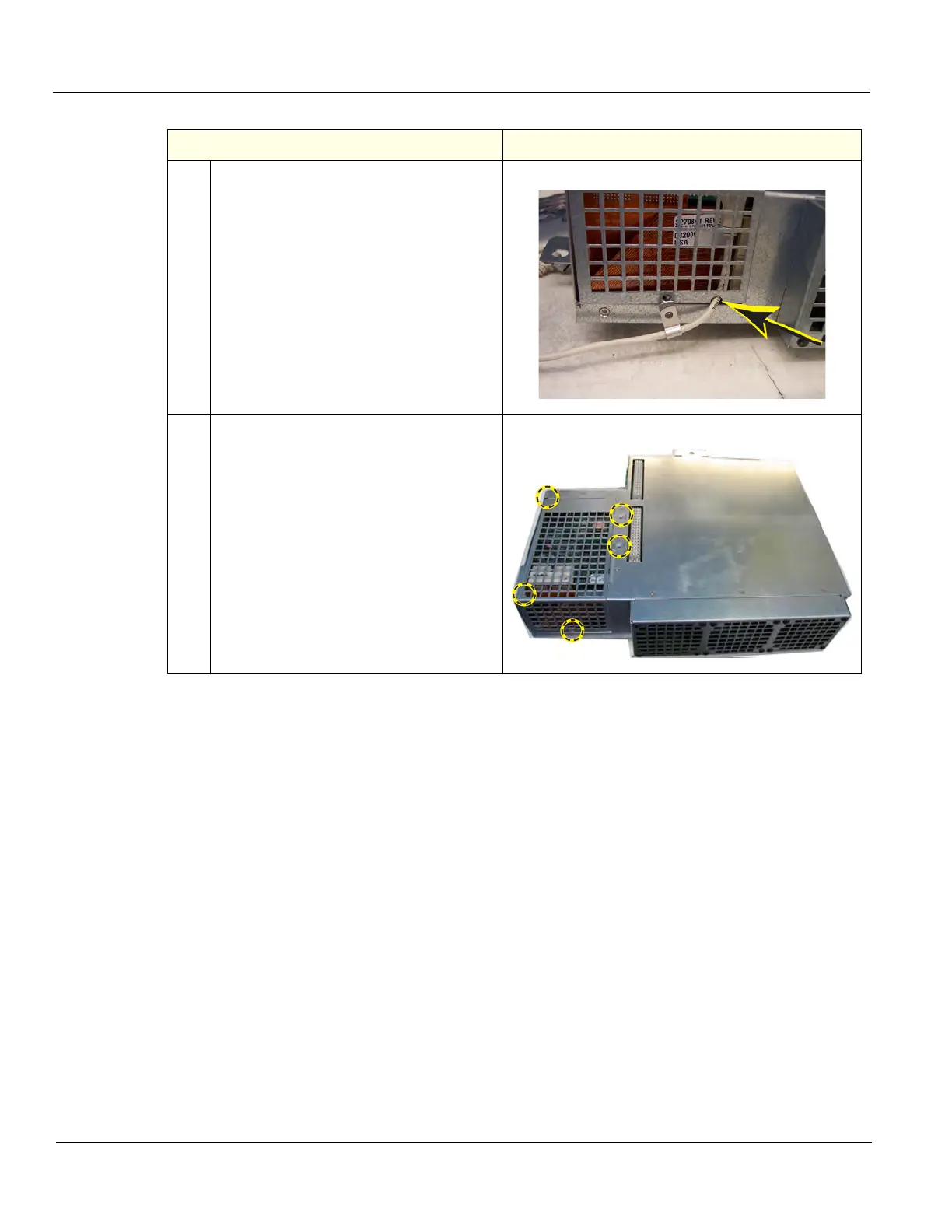

Attach the new 4D MC Cover and route
the USB Cable as shown.
Use the P-Clamp, Screw and Washer
supplied with the 4D MC replacement to
secure the USB Cable to the PS.
3.
Install the five screws (circled) to secure
the 4D MC Cover to the Main PS. Make
sure the P-Clamp for the 4D MC USB
Cable is not twisted. It should be aligned
with the Main PS.
Table 8-166 4D MC Reinstallation for Cherokee/Mitra PS
Steps Corresponding Graphic
To Next Page
